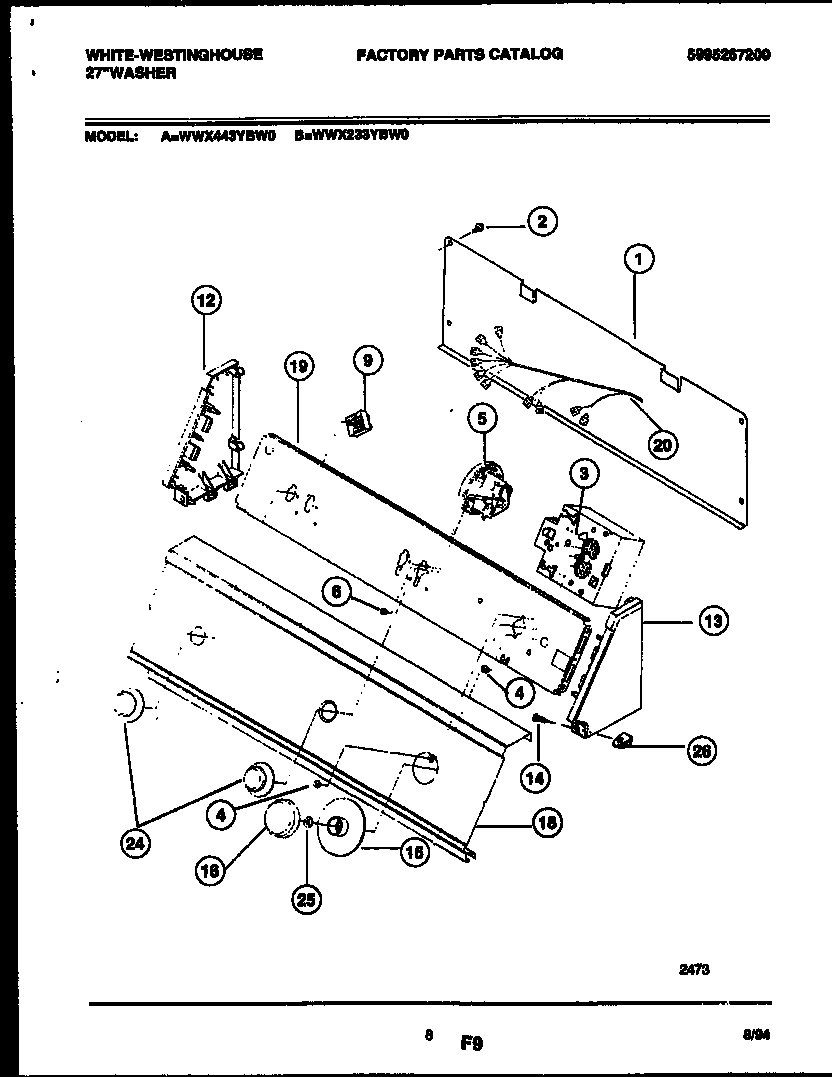

WWX443YBW0 05 – CONSOLE AND CONTROL PARTS

WWX443YBW0 05 – CONSOLE AND CONTROL PARTS

Written by

in

WWX443YBW0 05 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
*10090WCI 08001860
*10090131243800 Frigidaire Screw
1COVER-BACK
2131205100 Frigidaire Screw
3WCI 131238000
4SCREW (2)
5WCI 131047500
6131168200 Frigidaire Dryer Screw
9WCI 131081200
12WCI 5303291344
13WCI 5303291352
14WCI 5303289526
15WCI 131118502
16KNOB-TIMER
18WCI 131241300
19BRACKET CONTROLS
20WCI 131166100
24WCI 131118602
25Spacer,washer ,timer shaft
26CLIP-CONSOLE MTG
