WWX443YBW1 05 – CONSOLE & CONTROLS – Aparts

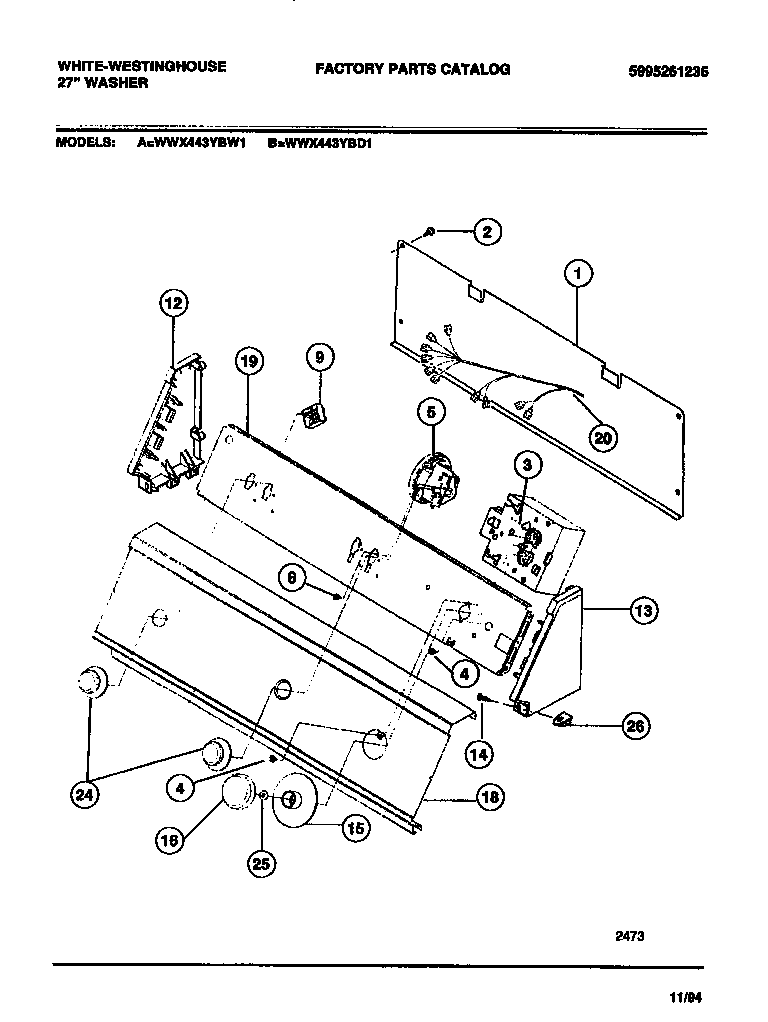

WWX443YBW1 05 – CONSOLE & CONTROLS

Products

Position	Product
*95442	WCI 08001860
*95441	131243800 Frigidaire Screw
1	COVER-BACK
2	131205100 Frigidaire Screw
3	WCI 131238000
4	SCREW (2)
5	WCI 131047500
6	131168200 Frigidaire Dryer Screw
9	WCI 131081200
12	WCI 5303291344
13	WCI 5303291352
14	WCI 5303289526
15	WCI 131118502
16	KNOB-TIMER
18	WCI 131241300
19	BRACKET CONTROLS
20	WCI 131166100
24	WCI 131118602
25	Spacer,washer ,timer shaft
26	CLIP-CONSOLE MTG
