WWX645PBS1 05 – CONSOLE & CONTROLS – Aparts

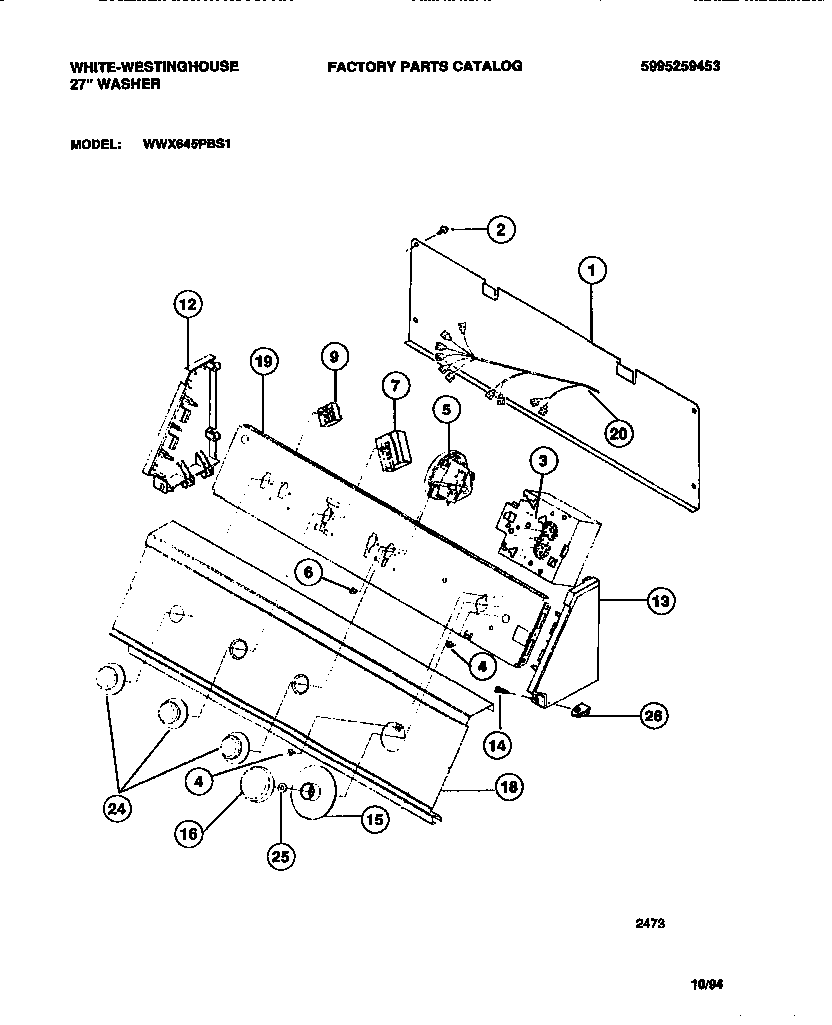

WWX645PBS1 05 – CONSOLE & CONTROLS

Products

Position	Product
*02121	131243800 Frigidaire Screw
1	COVER-BACK
2	131205100 Frigidaire Screw
3	WCI 131238200
4	SCREW (2)
5	WCI 131047700
6	131168200 Frigidaire Dryer Screw
7	WCI 131120400
9	WCI 131081200
12	WCI 5303291343
13	WCI 5303291351
14	WCI 5303297854
15	DIAL-TIMER, WHITE
16	KNOB - TIMER
18	WCI 131352000
19	WCI 131297306
20	WCI 131166200
24	WCI 131118603
25	Spacer,washer ,timer shaft
26	CLIP-CONSOLE MTG
