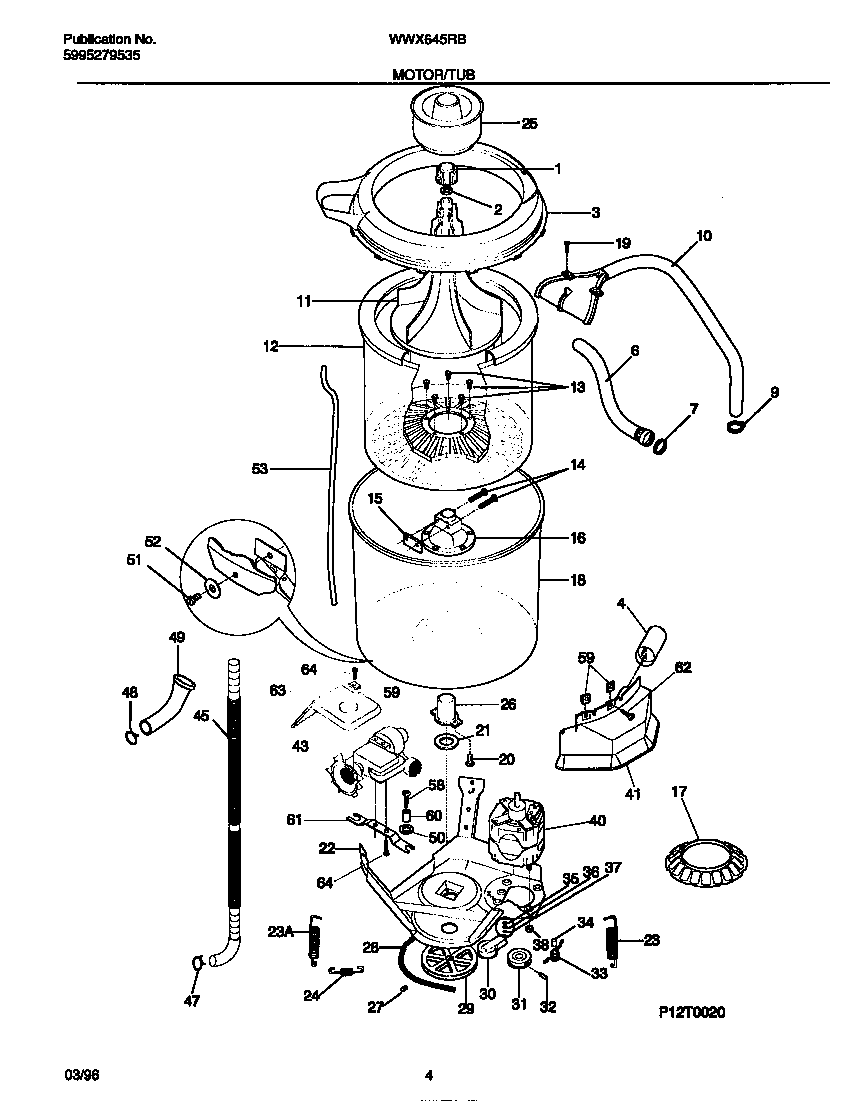

WWX645RBD4 03 – MOTOR/TUB

WWX645RBD4 03 – MOTOR/TUB

Written by

in

WWX645RBD4 03 – MOTOR/TUB

Products

PositionProduct
*58161INSERT-SPRING ADJ
NIWCI 131506500
1WCI 5303208779
2WCI 3204396
3131398303 Frigidaire Tub Ring
4131212301 Frigidaire Washer Capacitor Motor
65303912532 Frigidaire Hose Inlet 60"
75303161296 Frigidaire Washer-Inlet Hose (1Piece)
95304488479 Frigidaire Washer Hose Clamp
10NOZZLE & HOSE ASSY
11WCI 5303211003
12TUB-SPIN, AND TRUNNION
13137546400 Frigidaire Screw 5/165-18 X .625
14137539500 Frigidaire Washer Trunnion Lock Plate Bolt
15137107000 Frigidaire Plate
16131545101 Frigidaire Dryer Washer Transmission Trunnion Nut
17WCI 131076600
18WCI 131444900
19131205300 Frigidaire Screw
203205150 Frigidaire Tub Bearing Screw
215308002401 Frigidaire Washer Primary
22WCI 131373610
23A134885900 Frigidaire Spring
23134886600 Frigidaire Spring Primary
24WCI 131373900
25DISPENSER
263204405 Frigidaire Outer Tub Spin Bearing
275303270023 Frigidaire Screw Set
28WASHER BELT
29WCI 131498300
30WCI 3204422
31WCI 3204423
32WCI 3204424
33TORSION SPRING
34WCI 3204426
353161433 Frigidaire Retainer
36WASHER
37SPRING WASHER
38HEX NUT
40WCI 5303309707
41131513300 Frigidaire Shield
43WCI 131268401
45A131461200 Frigidaire Washer Drain Hose
47131306234 Frigidaire Clamp Pump
49WCI 131434500
50WCI 131268600
51WCI 3204459
52WCI 131315800
535304401845 Frigidaire Tube Pressure
58WCI 131464900
59WCI 5303283052
60WCI 131268700
61WCI 131268500
62131420300 Frigidaire Screw
63WCI 131494300
645303283072 Frigidaire Shield Screw
