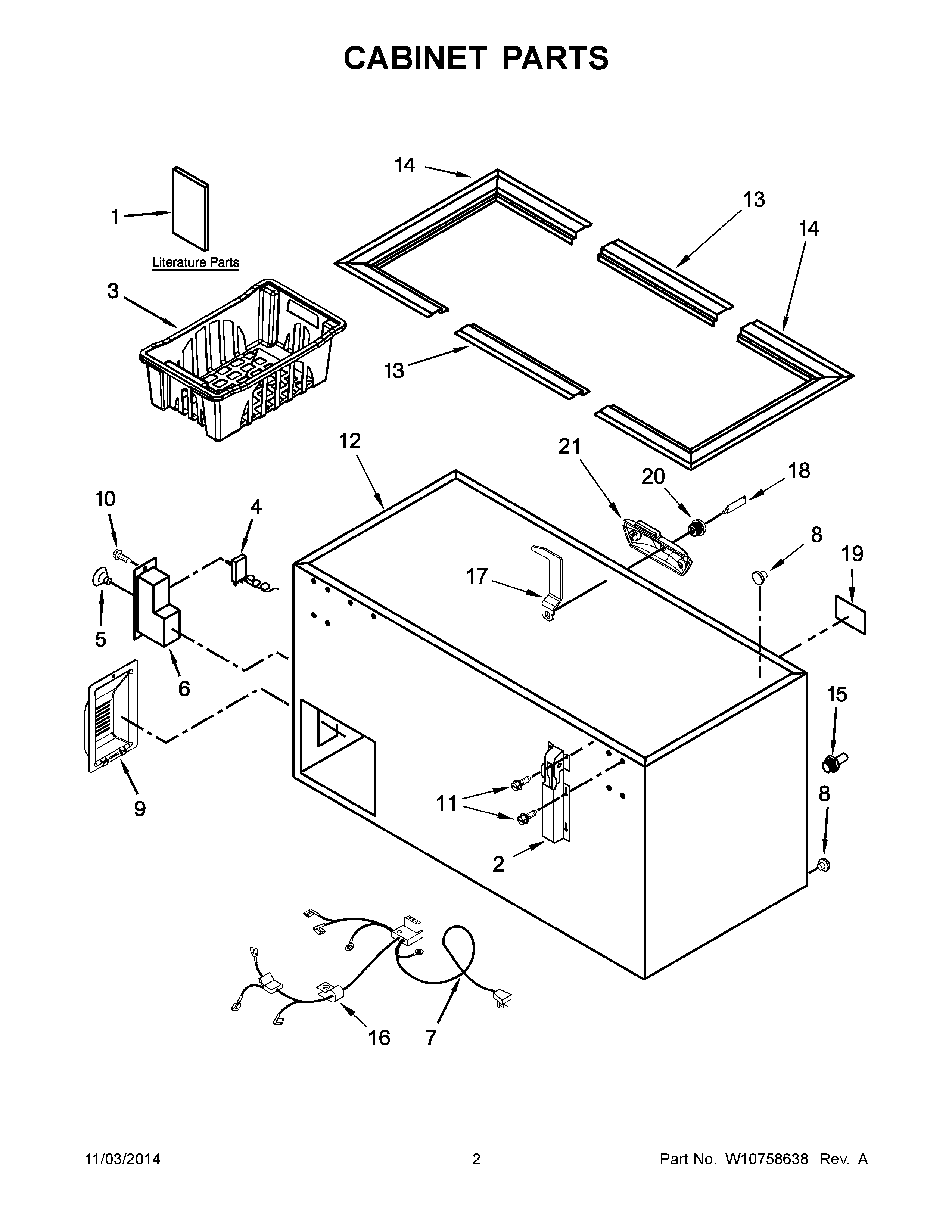

WZC3115DW00 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1B	TECH SHEET
1	USE & CARE GUIDE
2	W11192197 Whirlpool Refrigerator Door Hinge
3	W11553315 Whirlpool Refrigerator Basket
4	THERMOSTAT
5	W10738934 Whirlpool Refrigerator Thermostat Knob
6	W10682894 Whirlpool Refrigerator Control Box
7	W10631222 Whirlpool Refrigerator Harness
8	DRAIN, PLUG
9	W10574468 Whirlpool Refrigerator Panel
10	SCREW
11	SCREW
12	CABINET (NOT A SERVICEABLE PART)
13	REAR, BREAKER STRIP
14	END, BREAKER STRIP (2)
15	ADAPTER, DRAIN
16	549193 Whirlpool Refrigerator Power Clamp
17	W10714897 Whirlpool Refrigerator Hook
18	W10838052 Whirlpool Refrigerator Door Key
19	W11178521 Whirlpool Dishwasher Nameplate
20	W10664016 Whirlpool Refrigerator Door Lock
21	W10711162 Whirlpool Refrigerator Cover
