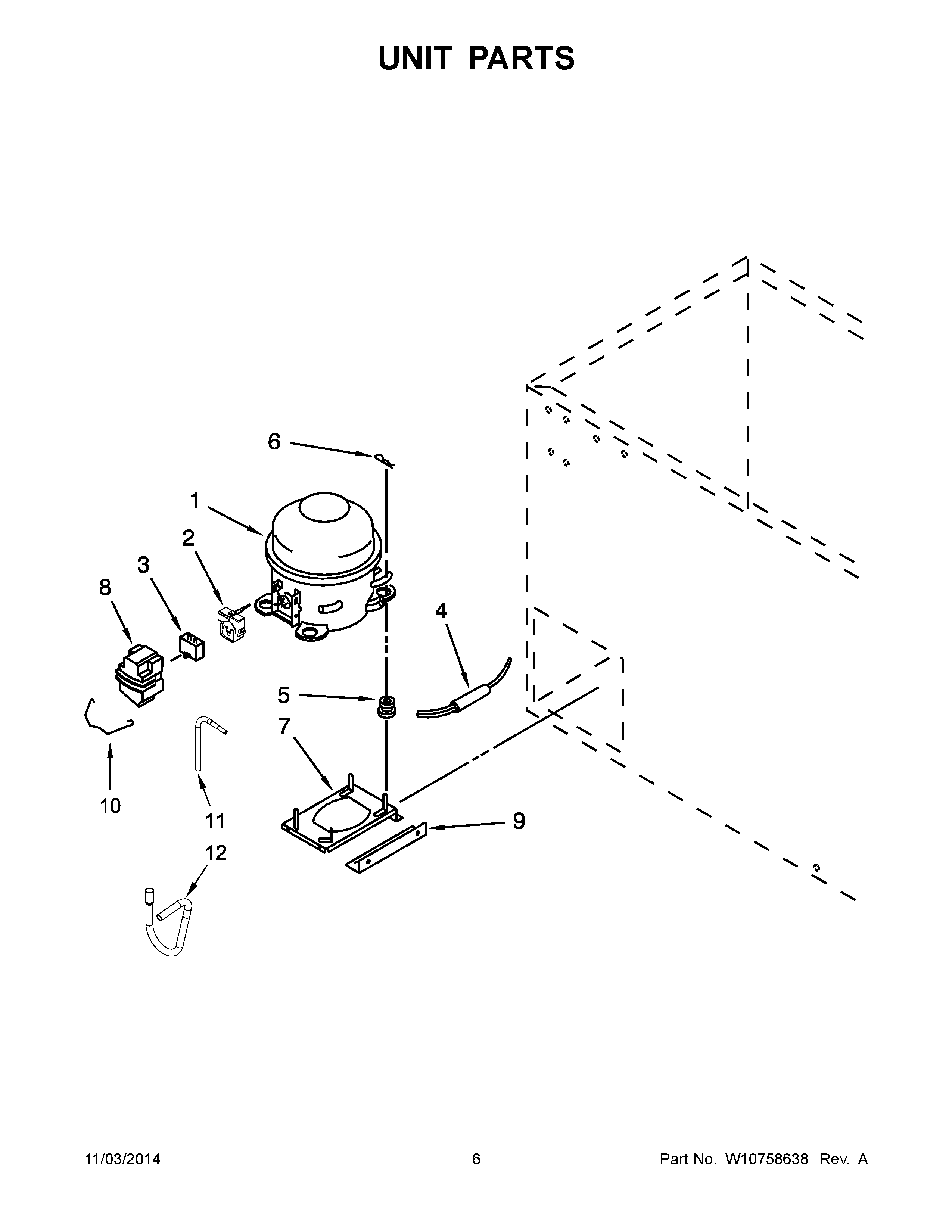

WZC3115DW00 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	WPW10507886 Whirlpool Refrigerator Compressor
2	START-DEV
3	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
4	WPW10143759 Whirlpool Dryer Filter
5	W11661108 Whirlpool Grommet
6	A201435 Whirlpool Refrigerator Clip
7	W10574602 Whirlpool Refrigerator Frame
8	W10574450 Whirlpool Refrigerator Term Cover
9	BRACE
10	W10574470 Whirlpool Refrigerator Retainer
11	W10721471 Whirlpool Refrigerator Tube
12	W10721470 Whirlpool Refrigerator Tube
