Aparts

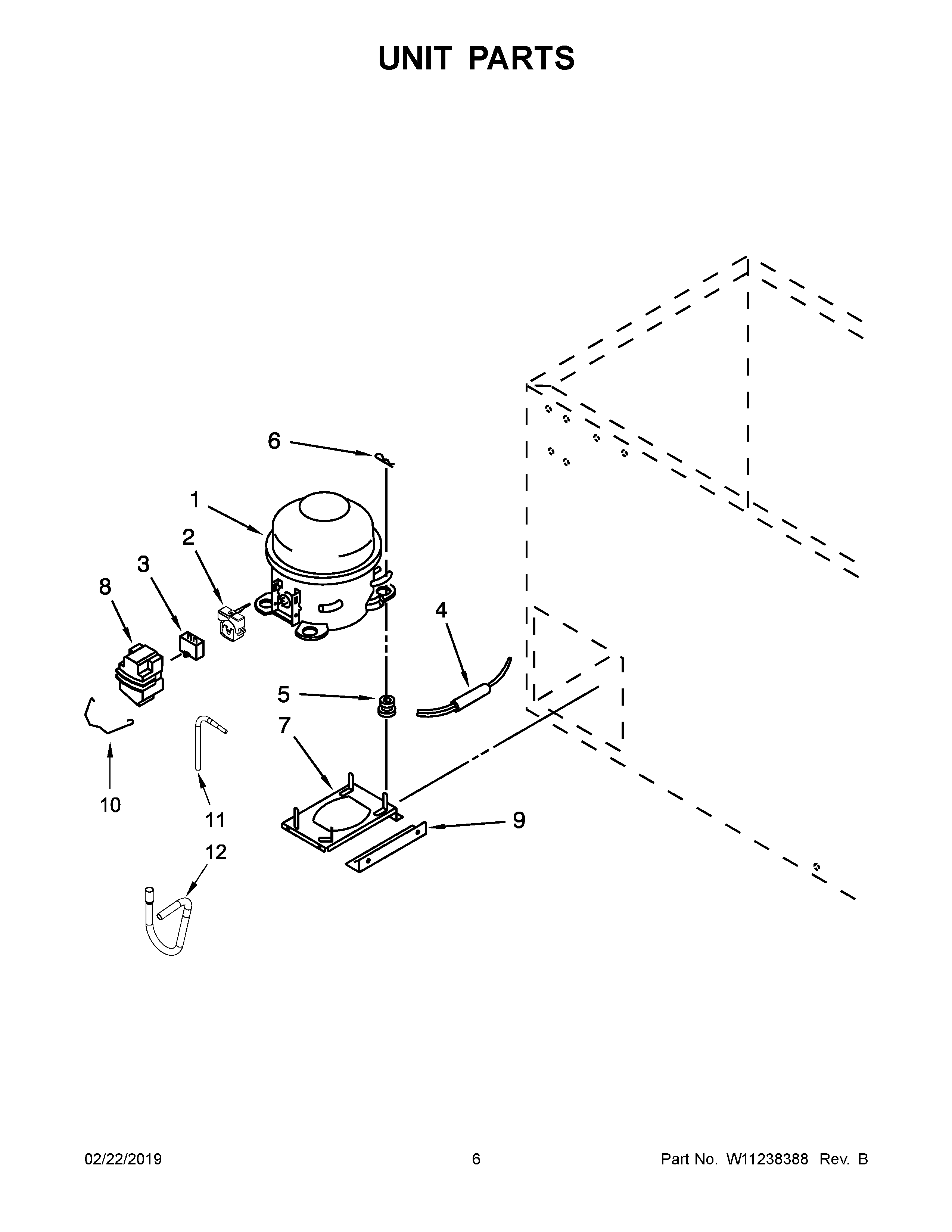

WZC3115DW01 04 – UNIT PARTS

WZC3115DW01 04 – UNIT PARTS

Written by

in

WZC3115DW01 04 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1WPW10507886 Whirlpool Refrigerator Compressor
2W10873801 Whirlpool Start Device
3WPW10350564 Whirlpool Refrigerator Freezer Capacitor
4WPW10143759 Whirlpool Dryer Filter
5W11661108 Whirlpool Grommet
6A201435 Whirlpool Refrigerator Clip
7W10574602 Whirlpool Refrigerator Frame
8W10574450 Whirlpool Refrigerator Term Cover
9BRACE
10W10574470 Whirlpool Refrigerator Retainer
11W10721471 Whirlpool Refrigerator Tube
12W10721470 Whirlpool Refrigerator Tube
