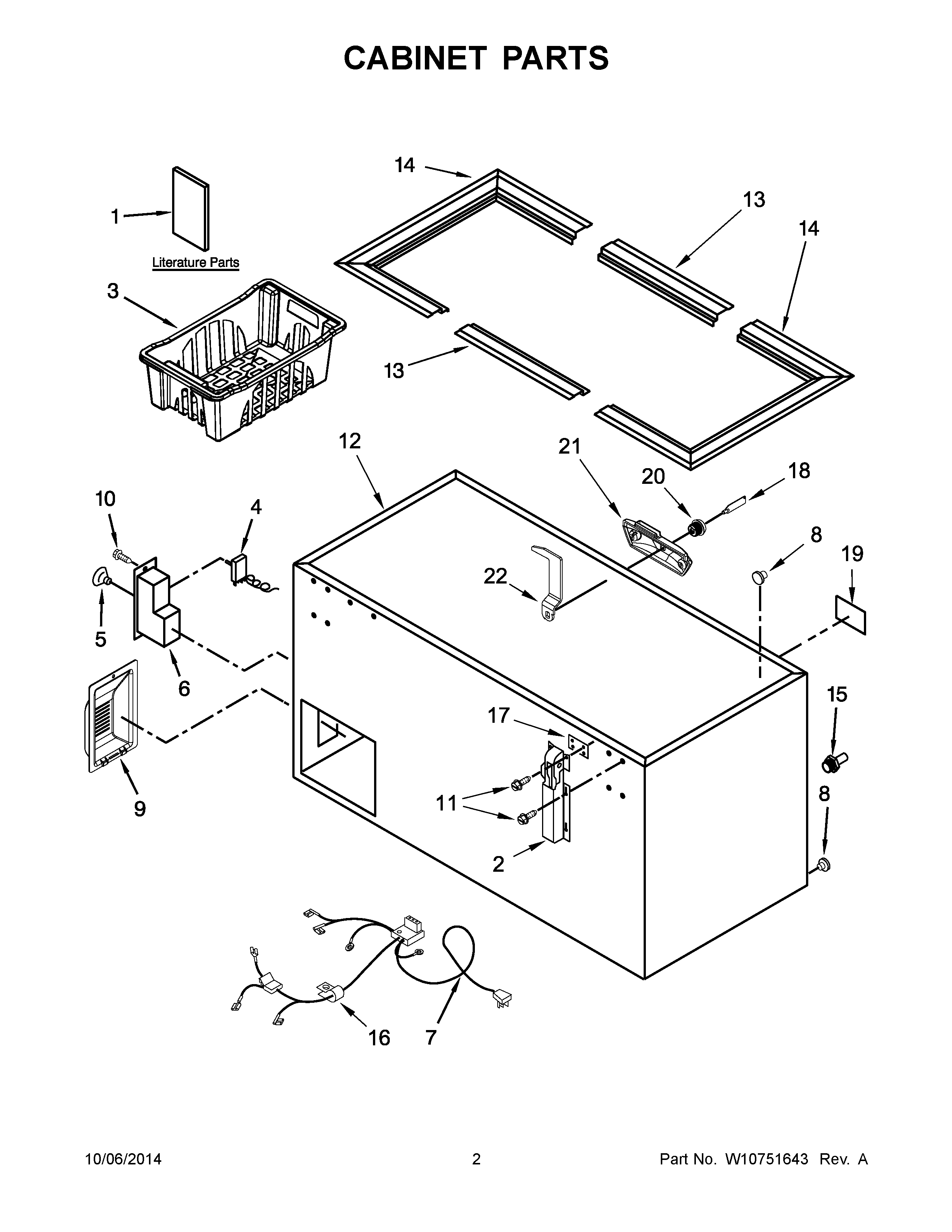

WZC3122DW00 02 – CABINET PARTS

WZC3122DW00 02 – CABINET PARTS

Written by

in

WZC3122DW00 02 – CABINET PARTS

Products

PositionProduct
1BTECH SHEET
1AENERGY GUIDE
1USE & CARE GUIDE
2W11192185 Whirlpool Refrigerator Door Hinge
3W11553315 Whirlpool Refrigerator Basket
4THERMOSTAT
5W10738934 Whirlpool Refrigerator Thermostat Knob
6W10682894 Whirlpool Refrigerator Control Box
7W10631222 Whirlpool Refrigerator Harness
8DRAIN, PLUG
9W10574468 Whirlpool Refrigerator Panel
10SCREW
11SCREW
12CABINET (NOT A SERVICEABLE PART)
13REAR, BREAKER STRIP
14END, BREAKER STRIP (2)
15ADAPTER, DRAIN
16549193 Whirlpool Refrigerator Power Clamp
17SPACER, HINGE
18W10838052 Whirlpool Refrigerator Door Key
19W11178521 Whirlpool Dishwasher Nameplate
20W10664016 Whirlpool Refrigerator Door Lock
21W10711162 Whirlpool Refrigerator Cover
22W10714897 Whirlpool Refrigerator Hook
