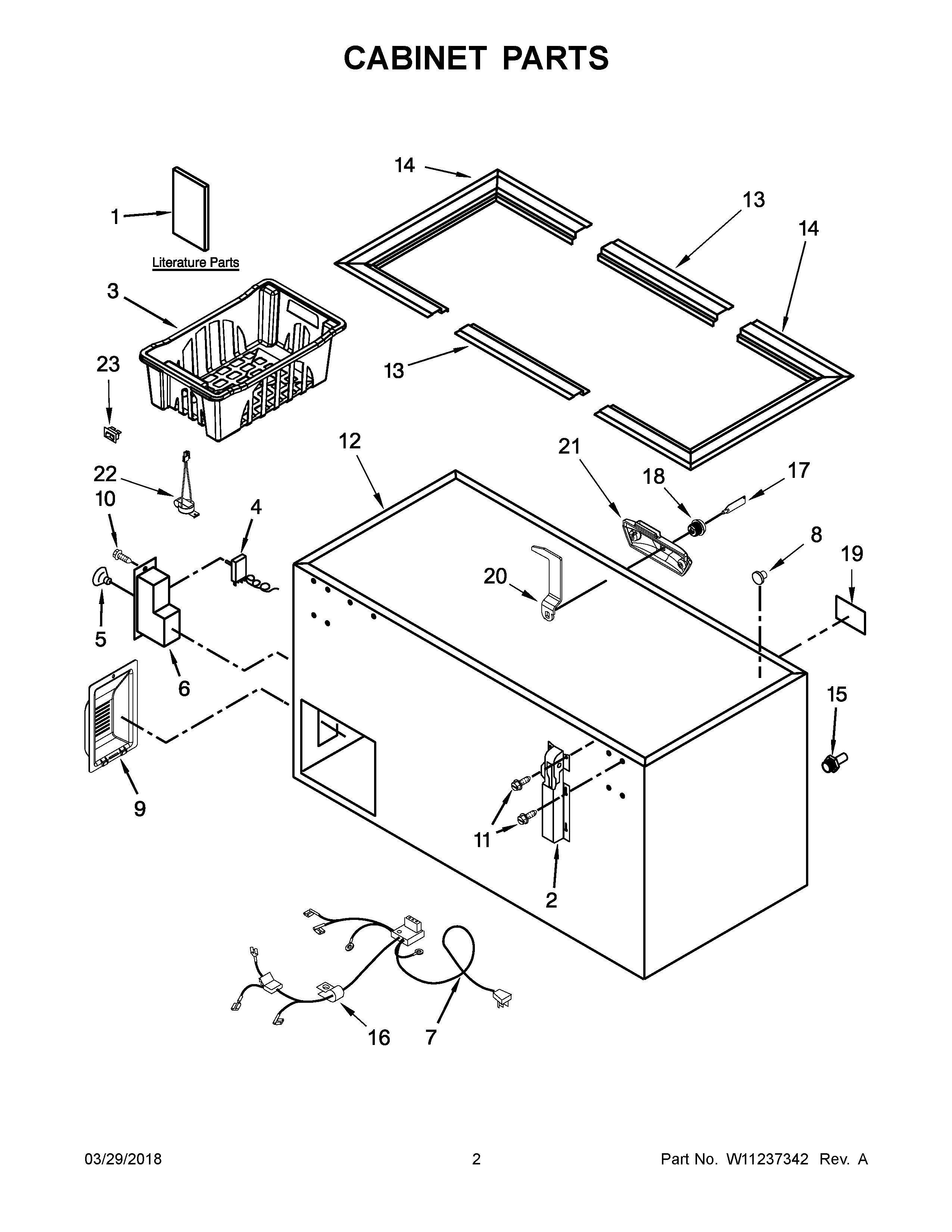

WZC5415DW01 02 – CABINET PARTS

Products

PositionProduct
1BTECH SHEET
1AENERGY GUIDE
1USE & CARE GUIDE
2W11192197 Whirlpool Refrigerator Door Hinge
3W11553315 Whirlpool Refrigerator Basket
4THERMOSTAT
5W10738934 Whirlpool Refrigerator Thermostat Knob
6W10682893 Whirlpool Refrigerator Control Board
7W10628808 Whirlpool Refrigerator Harness
8DRAIN, PLUG
9W10574468 Whirlpool Refrigerator Panel
10SCREW
11SCREW
12CABINET (NOT A SERVICEABLE PART)
13STRIP, REAR BREAKER
14W11045300 Whirlpool Refrigerator Trim Bracket
15ADAPTER, DRAIN
16549193 Whirlpool Refrigerator Power Clamp
17W10838052 Whirlpool Refrigerator Door Key
18W10664016 Whirlpool Refrigerator Door Lock
19W11178521 Whirlpool Dishwasher Nameplate
20W10714897 Whirlpool Refrigerator Hook
21W10711162 Whirlpool Refrigerator Cover
22W10623221 Whirlpool Refrigerator Freezer Alarm
23W10749471 Whirlpool Refrigerator Switch
