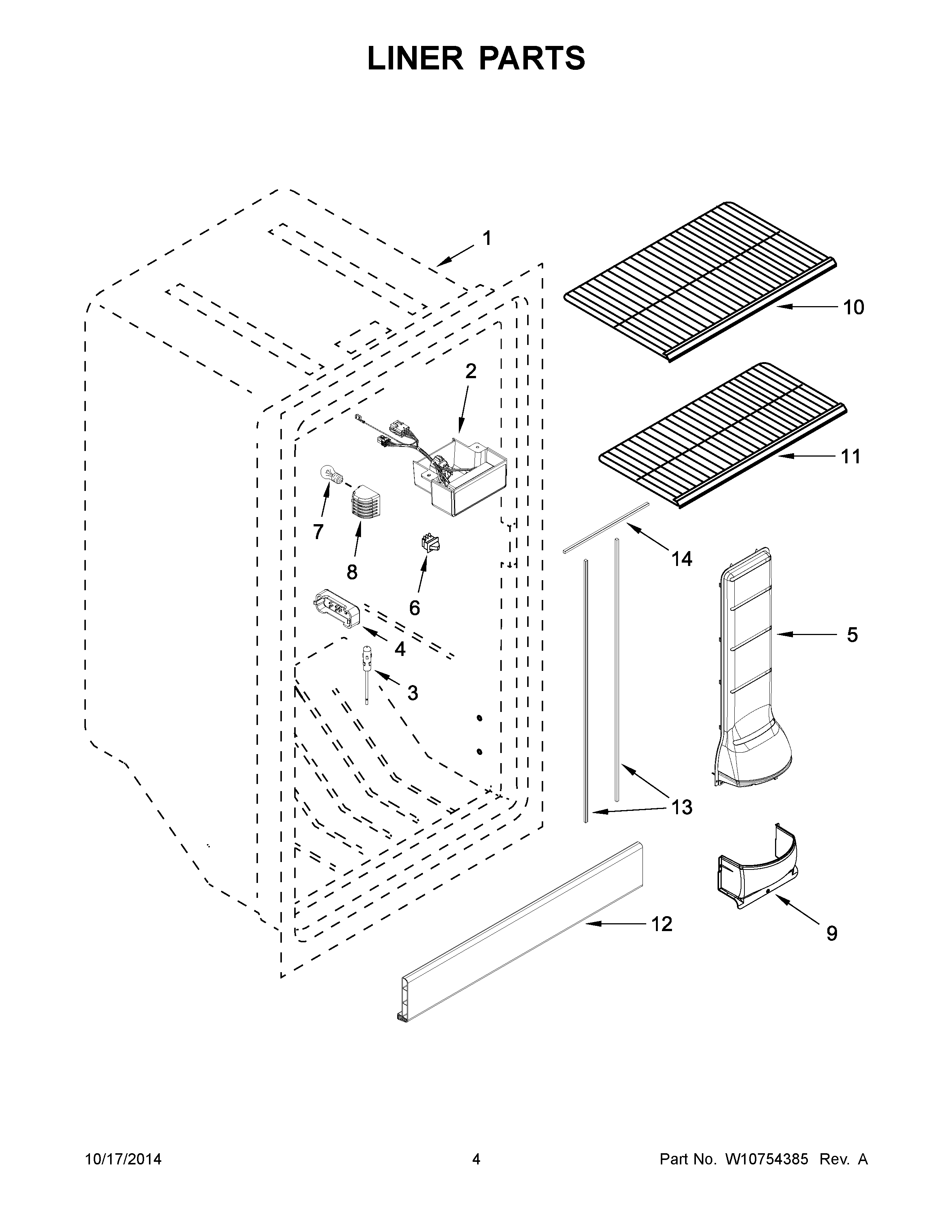

WZF34X16DW00 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11382529 Whirlpool User Control and Display Board + Core
3WPW10384183 Whirlpool Thermistor
4W10608692 Whirlpool Refrigerator Cover
5AIR TOWER
6SWITCH, LIGHT
7W11338583 Whirlpool Light Bulb
8W10569269 Whirlpool Refrigerator Lens
9W10574274 Whirlpool Refrigerator Evaporator Cover
10W10838310 Whirlpool Refrigerator Freezer Wire Shelf
11W10838313 Whirlpool Shelf Assembly
12W10581588 Whirlpool Refrigerator Door Trim
13WPW10574368 Whirlpool Refrigerator Gasket
