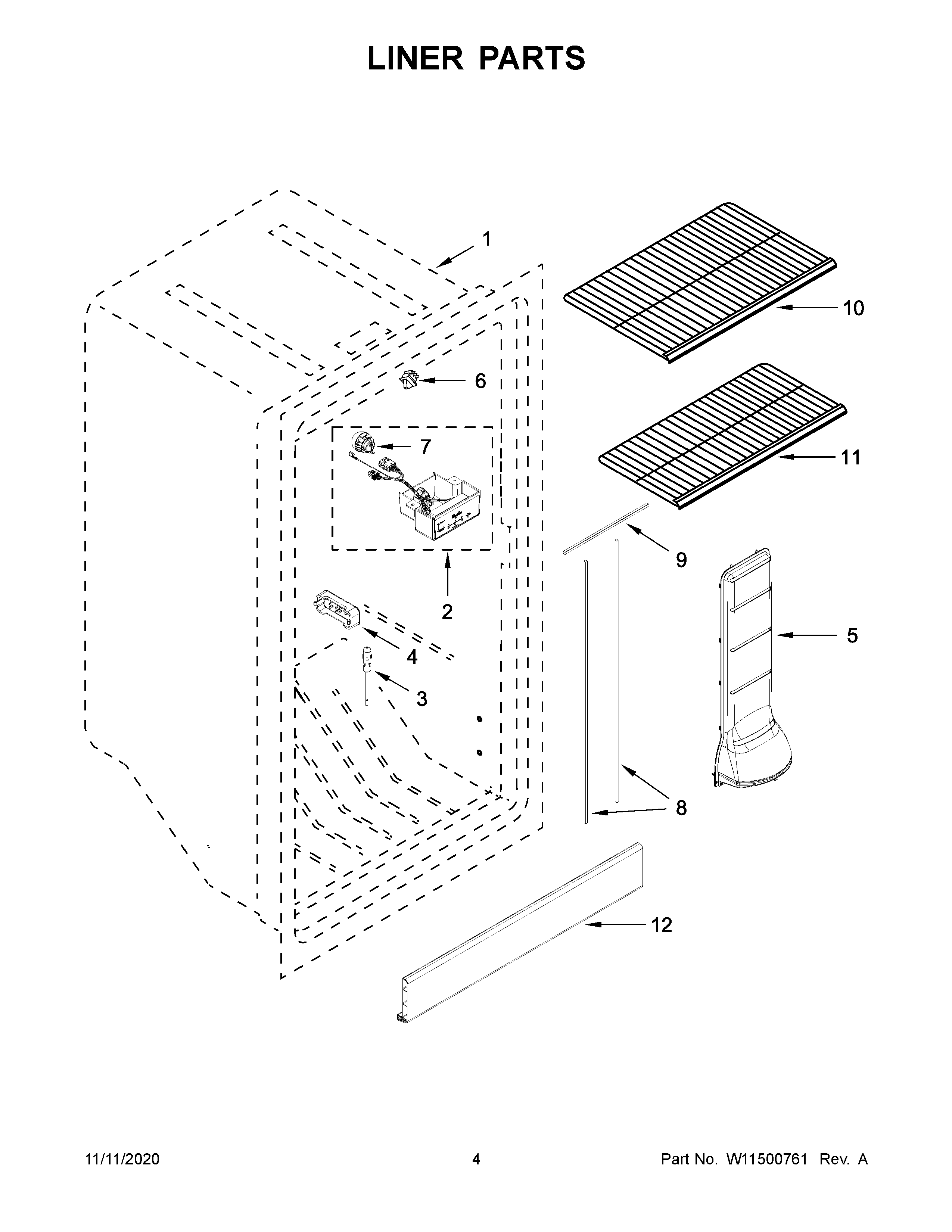

WZF34X16DW06 03 – LINER PARTS

WZF34X16DW06 03 – LINER PARTS

Written by

in

WZF34X16DW06 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11496873 Whirlpool Refrigerator Control Box
3WPW10384183 Whirlpool Thermistor
4W10608692 Whirlpool Refrigerator Cover
5AIR TOWER
6W10755325 Whirlpool Refrigerator Switch
7W11502762 Whirlpool Light Bulb
8WPW10574368 Whirlpool Refrigerator Gasket
10W10838310 Whirlpool Refrigerator Freezer Wire Shelf
11W10838313 Whirlpool Shelf Assembly
12W10581588 Whirlpool Refrigerator Door Trim
