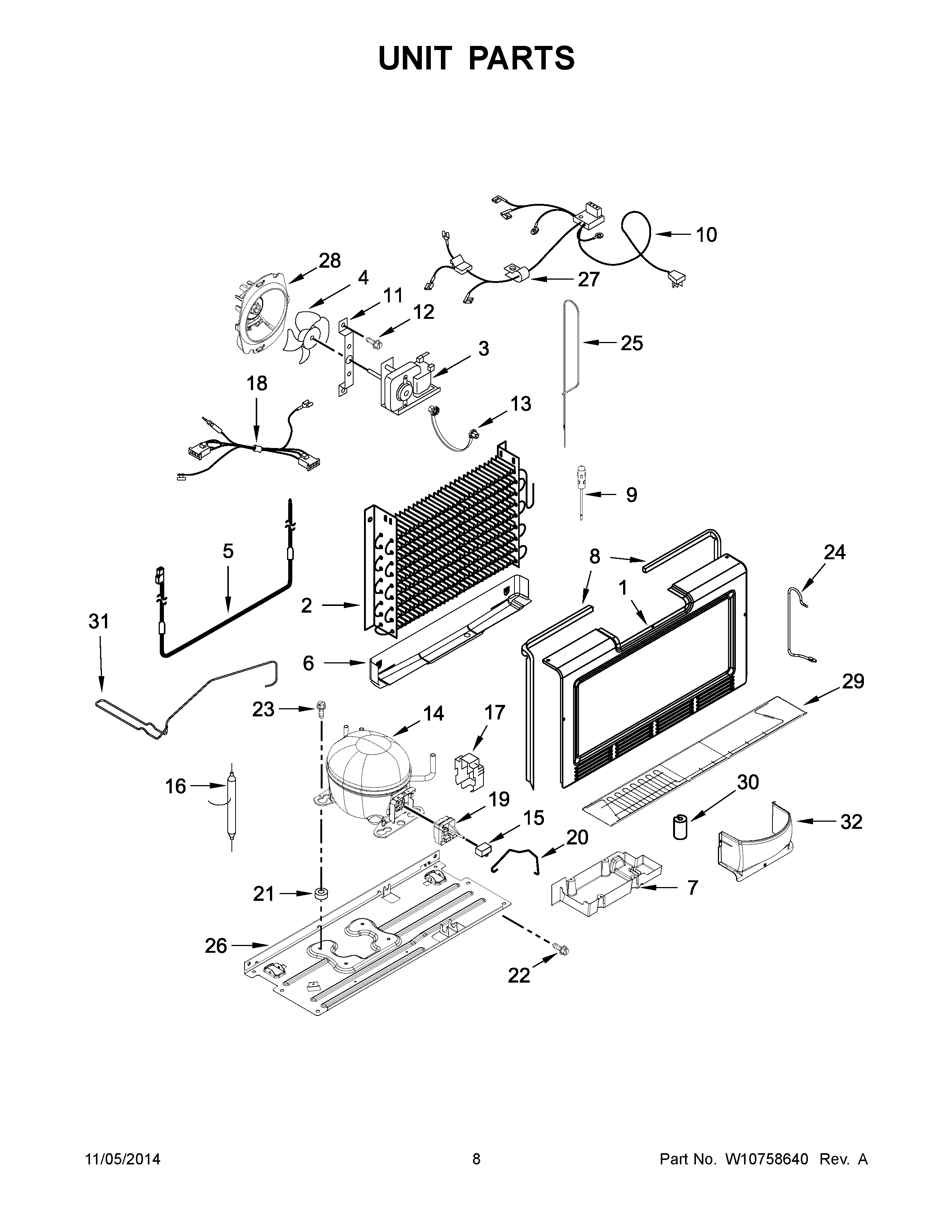

WZF34X20DW00 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W11551256 Whirlpool Refrigerator Evaporator Cover
2	W11507067 Whirlpool Refrigerator Evaporator
3	WPW10359880 Whirlpool Refrigerator Evaporator Motor
4	WP2169142 Whirlpool Fan Blade
5	WPW10316428 Whirlpool Refrigerator Heater
6	WPW10314195 Whirlpool Refrigerator Shield
7	W10574291 Whirlpool Refrigerator Drip Pan
8	WPW10574368 Whirlpool Refrigerator Gasket
9	THERMISTOR-REFRIGERATOR
10	W10622169 Whirlpool Refrigerator Wire Harness
11	CLIP, EVAPORATOR MOTOR
12	SCREW
13	W11690160 Whirlpool Grommet
14	W10750851 Whirlpool Refrigerator Compressor
15	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
16	WPW10143759 Whirlpool Dryer Filter
17	W10574450 Whirlpool Refrigerator Term Cover
18	W11244436 Whirlpool Refrigerator Harness
19	W11028365 Whirlpool Refrigerator Start Device
20	W10574470 Whirlpool Refrigerator Retainer
21	W11661108 Whirlpool Grommet
22	BOLT
23	SCREW
24	W10574571 Whirlpool Refrigerator Tube
26	PAN, COMPRESSOR
27	549193 Whirlpool Refrigerator Power Clamp
28	W10574469 Whirlpool Refrigerator Scroll Fan
30	W10852725 Whirlpool Refrigerator Grommet
31	W10574478 Whirlpool Refrigerator Tube
32	W10574274 Whirlpool Refrigerator Evaporator Cover
