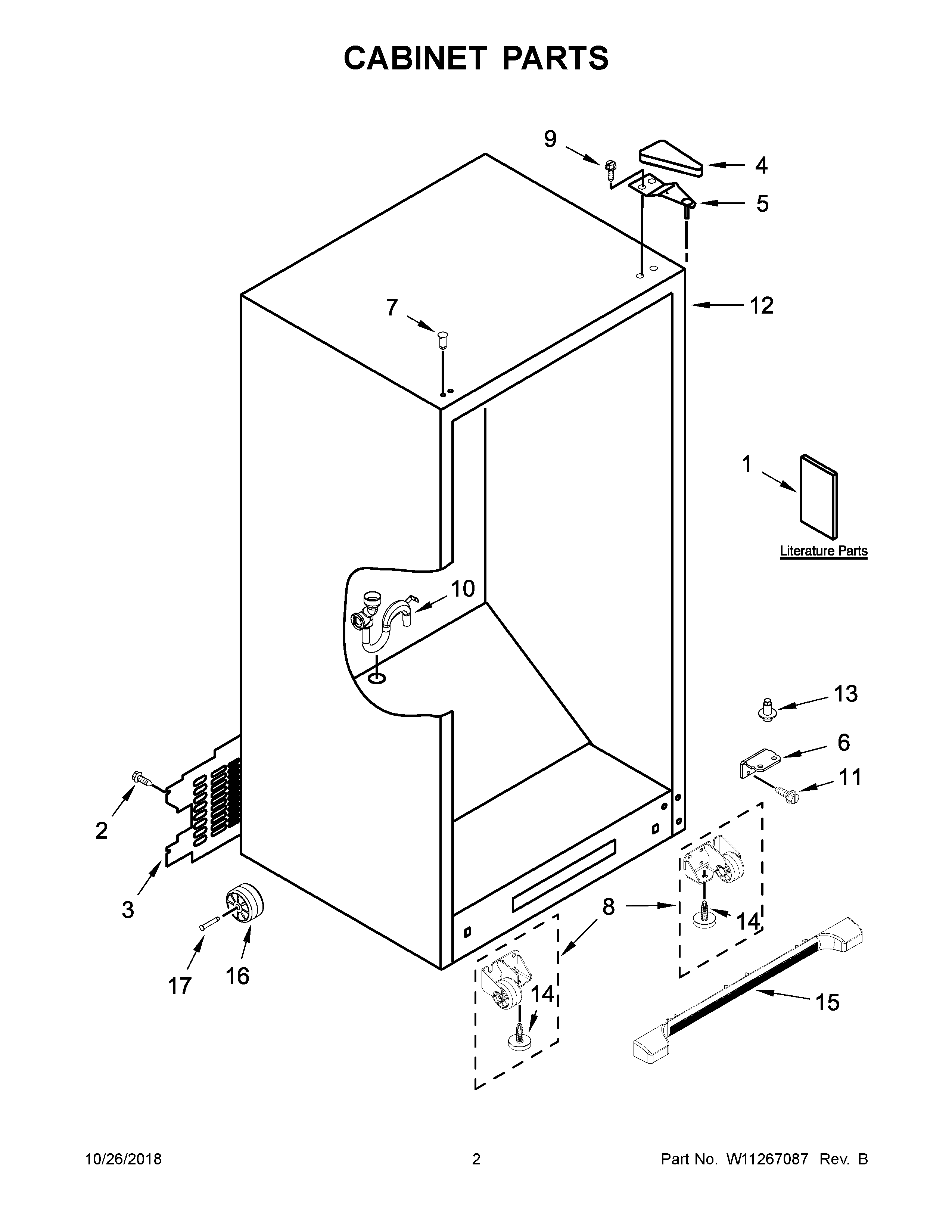

WZF34X20DW01 02 – CABINET PARTS

WZF34X20DW01 02 – CABINET PARTS

Written by

in

WZF34X20DW01 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE & CARE GUIDE
1BTECH SHEET
2SCREW
3W10845755 Whirlpool Refrigerator Unit Cover
4WP2213360 Whirlpool Refrigerator Cover
5WP2261963 Whirlpool Refrigerator Door Hinge
6W10574264 Whirlpool Refrigerator Door Hinge
7WPW10520304 Whirlpool Refrigerator Button Plug
8WPW10515762 Whirlpool Refrigerator Cabinet Roller
8AWPW10515763 Whirlpool Refrigerator Cabinet Roller
9WP489497 Whirlpool Screw
10W11673435 Whirlpool Refrigerator Drain Tube
1167006564 Whirlpool Refrigerator Screw
12CABINET (NOT A SERVICEABLE PART)
13W11676609 Whirlpool Hinge Pin
14WPW10141622 Whirlpool Leveler
15WPW10534161 Whirlpool Refrigerator Front Grille
16WPW10475495 Whirlpool Roller Assembly
17W11594405 Whirlpool Axle
