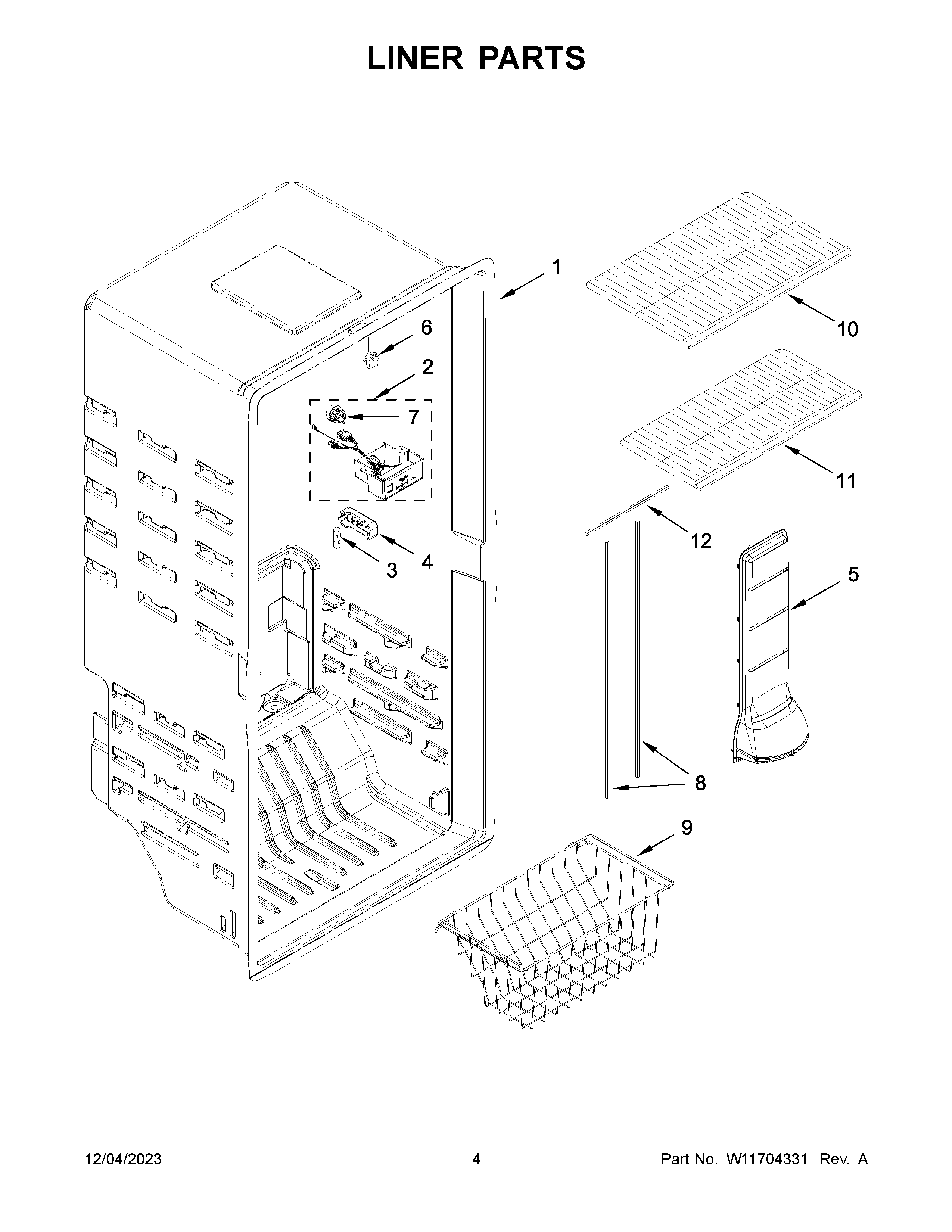

WZF34X20DW06 03 – LINER PARTS

WZF34X20DW06 03 – LINER PARTS

Written by

in

WZF34X20DW06 03 – LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2W11648650 Whirlpool Control Box
3WPW10384183 Whirlpool Thermistor
4W10608692 Whirlpool Refrigerator Cover
5W10574272 Whirlpool Refrigerator Air Tower
6W11727836 Whirlpool Switch
7W11502762 Whirlpool Light Bulb
8WPW10574368 Whirlpool Refrigerator Gasket
9W11293207 Whirlpool Refrigerator Basket
10W11397871 Whirlpool Wire Shelf
11W11578876 Whirlpool Refrigerator Wire Shelf
