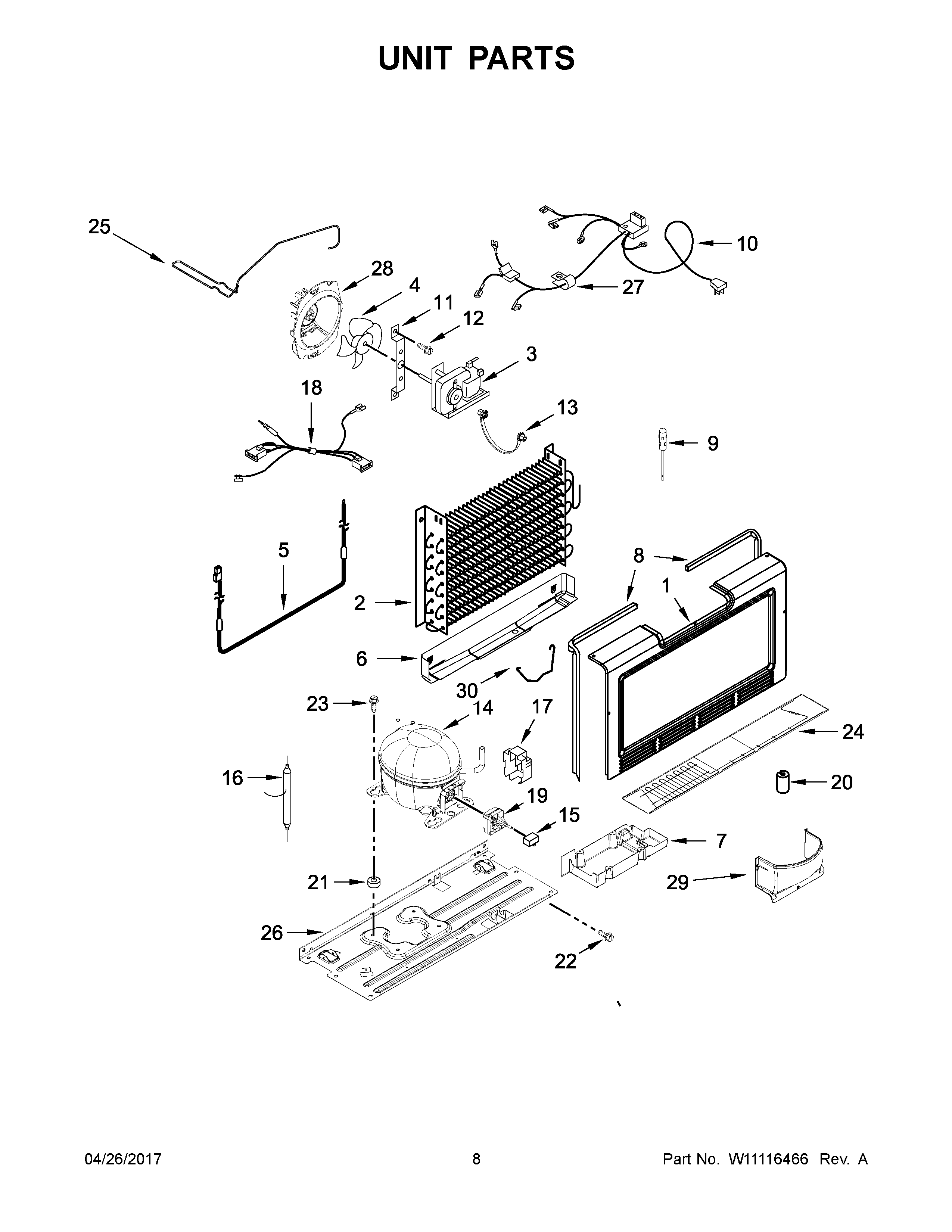

WZF56R16DW01 05 – UNIT PARTSadmin2025-04-26T11:18:32+00:00WZF56R16DW01 05 – UNIT PARTS ProductsPositionProductNICABINET (NOT A SERVICEABLE PART)1W11551256 Whirlpool Refrigerator Evaporator Cover2W11507067 Whirlpool Refrigerator Evaporator3WPW10359880 Whirlpool Refrigerator Evaporator Motor4WP2169142 Whirlpool Fan Blade5WPW10316428 Whirlpool Refrigerator Heater6WPW10314195 Whirlpool Refrigerator Shield7W10574291 Whirlpool Refrigerator Drip Pan8WPW10574368 Whirlpool Refrigerator Gasket9THERMISTOR-REFRIGERATOR10W10812035 Whirlpool Refrigerator Wire Harness11CLIP, EVAPORATOR MOTOR12SCREW13W11690160 Whirlpool Grommet14W10233960 Whirlpool Refrigerator Compressor15WPW10350564 Whirlpool Refrigerator Freezer Capacitor16WPW10143759 Whirlpool Dryer Filter17W10574450 Whirlpool Refrigerator Term Cover18W11244436 Whirlpool Refrigerator Harness19W11092533 Whirlpool Device Start20W10852725 Whirlpool Refrigerator Grommet21W11678963 Whirlpool Grommet22BOLT23SCREW24CONDENSER25W10574478 Whirlpool Refrigerator Tube26W10574278 Whirlpool Refrigerator Compressor Pan27549193 Whirlpool Refrigerator Power Clamp28W10574469 Whirlpool Refrigerator Scroll Fan29W10574274 Whirlpool Refrigerator Evaporator Cover30W10574470 Whirlpool Refrigerator Retainer
