WZF56R16DW07 03 – LINER PARTS

WZF56R16DW07 03 – LINER PARTS

Written by

in

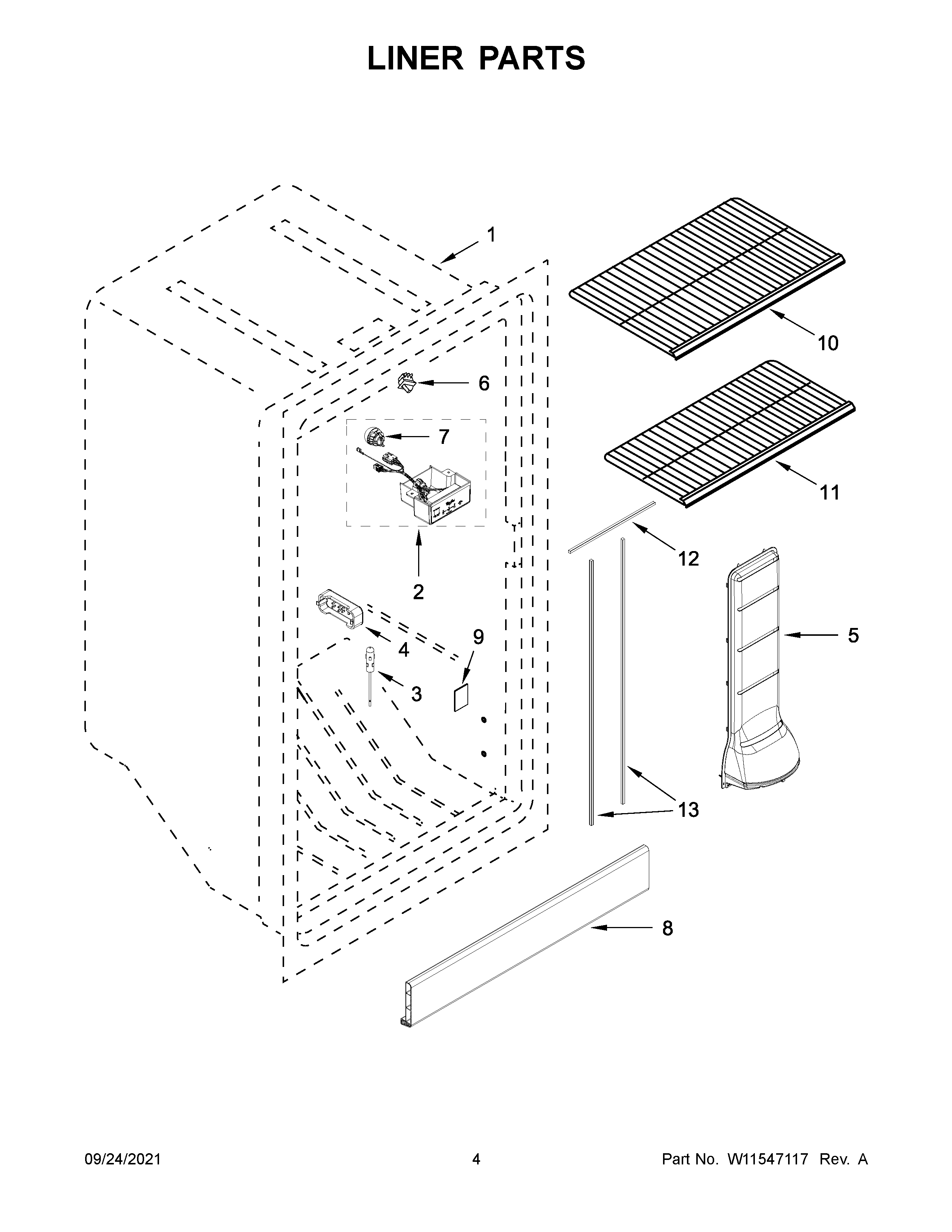

WZF56R16DW07 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11496879 Whirlpool Control Panel
3WPW10384183 Whirlpool Thermistor
4W10608692 Whirlpool Refrigerator Cover
5AIR TOWER
6W11727836 Whirlpool Switch
7W11502762 Whirlpool Light Bulb
8W10581588 Whirlpool Refrigerator Door Trim
9COVER, ICEMAKER HOLE
10W10836976 Whirlpool Refrigerator Wire Shelf
11W10838567 Whirlpool Wire Shelf
13WPW10574368 Whirlpool Refrigerator Gasket
