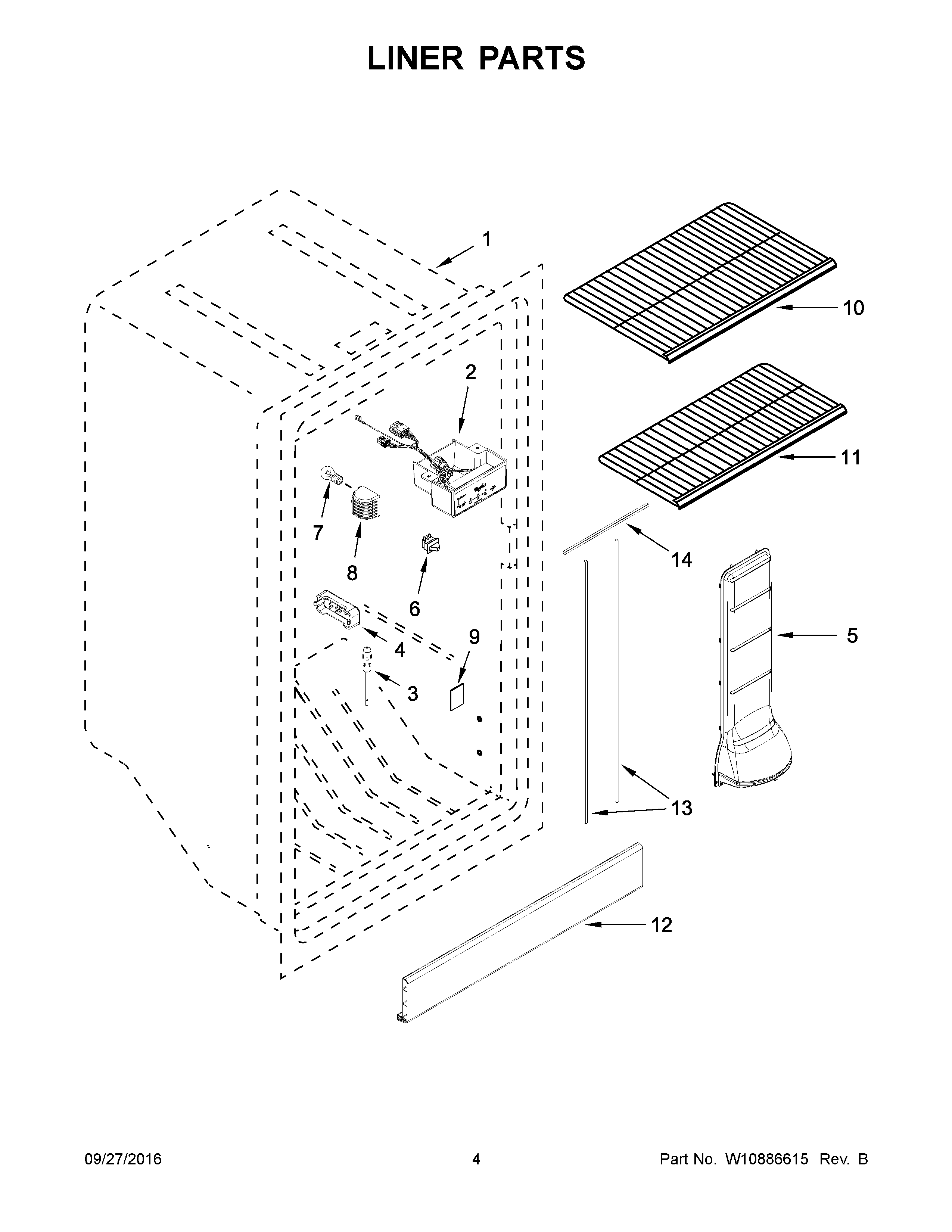

WZF57R16FW00 03 – LINER PARTS

WZF57R16FW00 03 – LINER PARTS

Written by

in

WZF57R16FW00 03 – LINER PARTS

Products

PositionProduct
NIW11700559 Whirlpool Ice Maker Assembly
NICABINET (NOT A SERVICEABLE PART)
2W11382528 Whirlpool User Control and Display Board + Core
3WPW10384183 Whirlpool Thermistor
4W10608692 Whirlpool Refrigerator Cover
5AIR TOWER
6W10755325 Whirlpool Refrigerator Switch
7W11216993 Whirlpool Refrigerator Light Bulb
8W10569269 Whirlpool Refrigerator Lens
9COVER, ICEMAKER HOLE
10W10836976 Whirlpool Refrigerator Wire Shelf
11W10838567 Whirlpool Wire Shelf
12W10581588 Whirlpool Refrigerator Door Trim
13WPW10574368 Whirlpool Refrigerator Gasket
