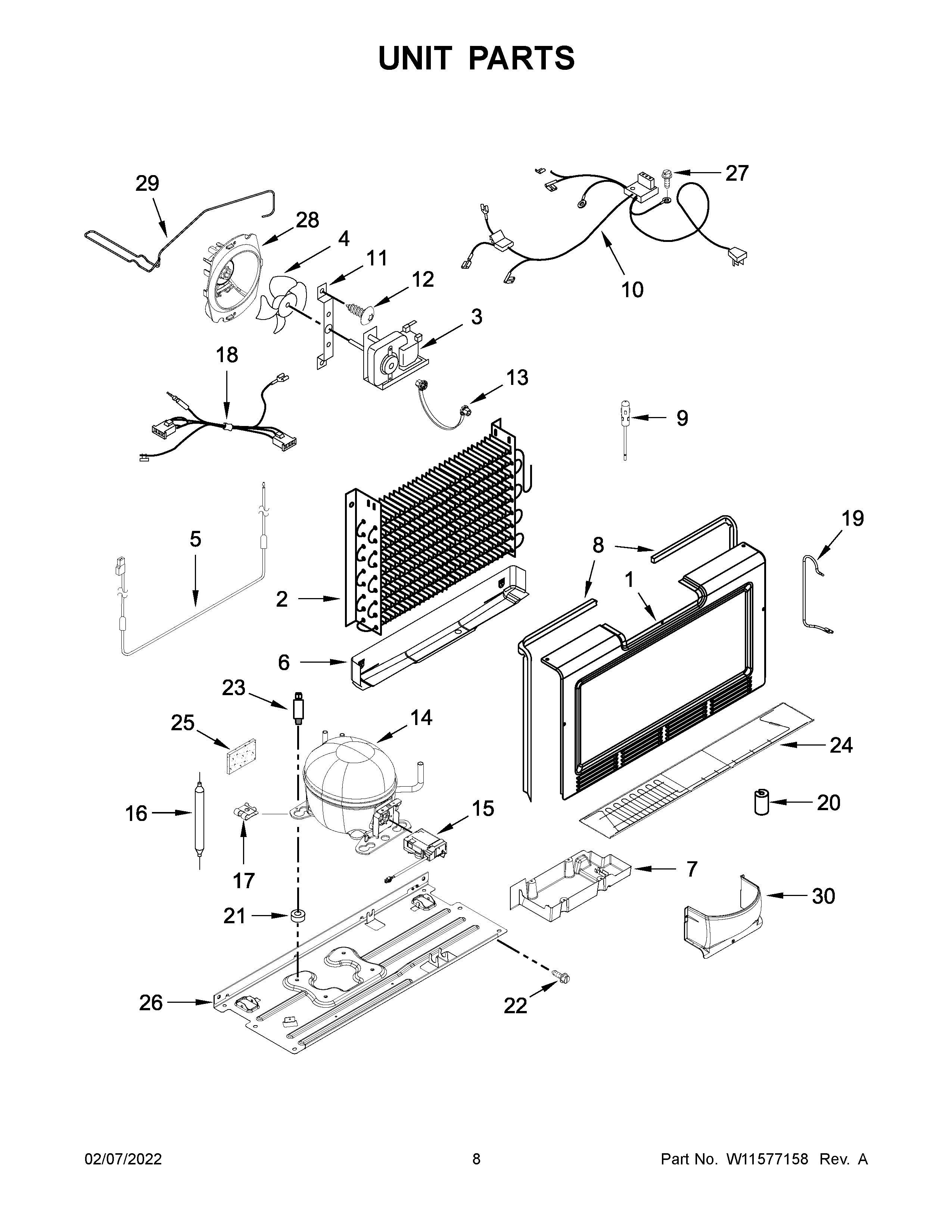

WZF79R20DW06 05 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1W11551256 Whirlpool Refrigerator Evaporator Cover
2W11572047 Whirlpool Refrigerator Evaporator
2AW11504450 Whirlpool Refrigerator Coupler
3W11499658 Whirlpool Refrigerator Evaporator Motor
4WP2169142 Whirlpool Fan Blade
5W11562215 Whirlpool Refrigerator Heater
6W11562216 Whirlpool Shield
7W10574291 Whirlpool Refrigerator Drip Pan
8WPW10574368 Whirlpool Refrigerator Gasket
9WPW10384183 Whirlpool Thermistor
10W11579403 Whirlpool Wire Harness
11CLIP, EVAPORATOR MOTOR
12SCREW
13W11690160 Whirlpool Grommet
14DW11506635 Whirlpool Refrigerator Valve Coupler
14W11578208 Whirlpool Refrigerator Compressor
14AW11504420 Whirlpool Microwave Coupler
14CW11506622 Whirlpool Refrigerator Coupler
15W11661848 Whirlpool Inverter Box
16W11109499 Whirlpool Refrigerator Tube
16AW11506623 Whirlpool Refrigerator Coupler
16BW11504448 Whirlpool Refrigerator Coupler
17W10697017 Whirlpool Clip
18W11741458 Whirlpool Harness
19TUBE, SUCTION
20W10852725 Whirlpool Refrigerator Grommet
21WPW10169124 Whirlpool Refrigerator Grommet
22BOLT
23SCREW
25W11553819 Whirlpool Refrigerator Insulation
26PAN, COMPRESSOR
27SCREW
28W10574469 Whirlpool Refrigerator Scroll Fan
29BW11578570 Whirlpool Refrigerator Coupler
29W10574478 Whirlpool Refrigerator Tube
29AW11504431 Whirlpool Microwave Coupler
30W10574274 Whirlpool Refrigerator Evaporator Cover
