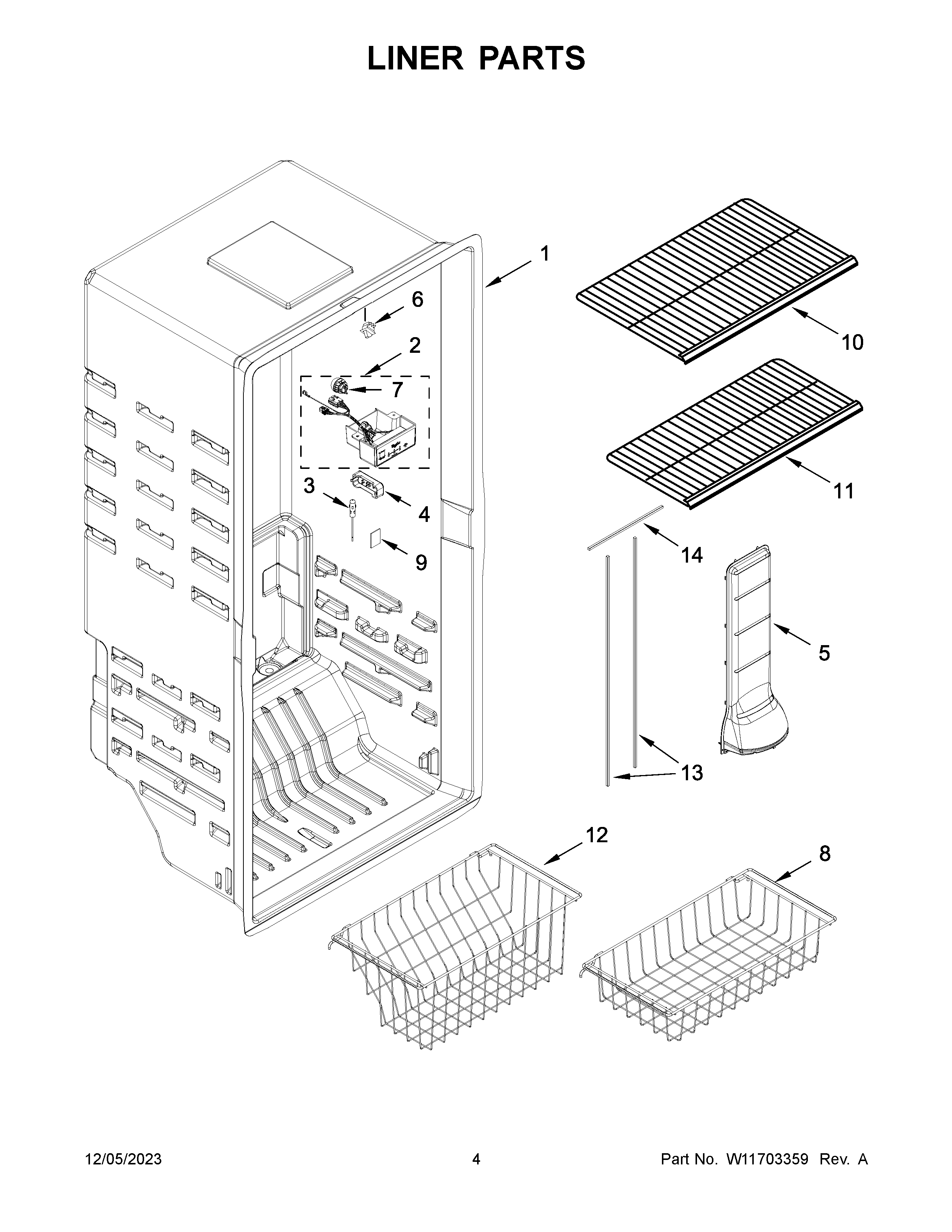

WZF79R20DW08 03 – LINER PARTS

WZF79R20DW08 03 – LINER PARTS

Written by

in

WZF79R20DW08 03 – LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2W11648349 Whirlpool Control Box
3WPW10384183 Whirlpool Thermistor
4W10608692 Whirlpool Refrigerator Cover
5W10574272 Whirlpool Refrigerator Air Tower
6W11727836 Whirlpool Switch
7W11502762 Whirlpool Light Bulb
8W10713813 Whirlpool Refrigerator Basket
9COVER, ICEMAKER HOLE
10W10860909 Whirlpool Refrigerator Wire Shelf
11W11679651 Whirlpool Wire Shelf
12W10713812 Whirlpool Refrigerator Basket
13WPW10574368 Whirlpool Refrigerator Gasket
