WZF79R20DW08 05 – UNIT PARTS

WZF79R20DW08 05 – UNIT PARTS

Written by

in

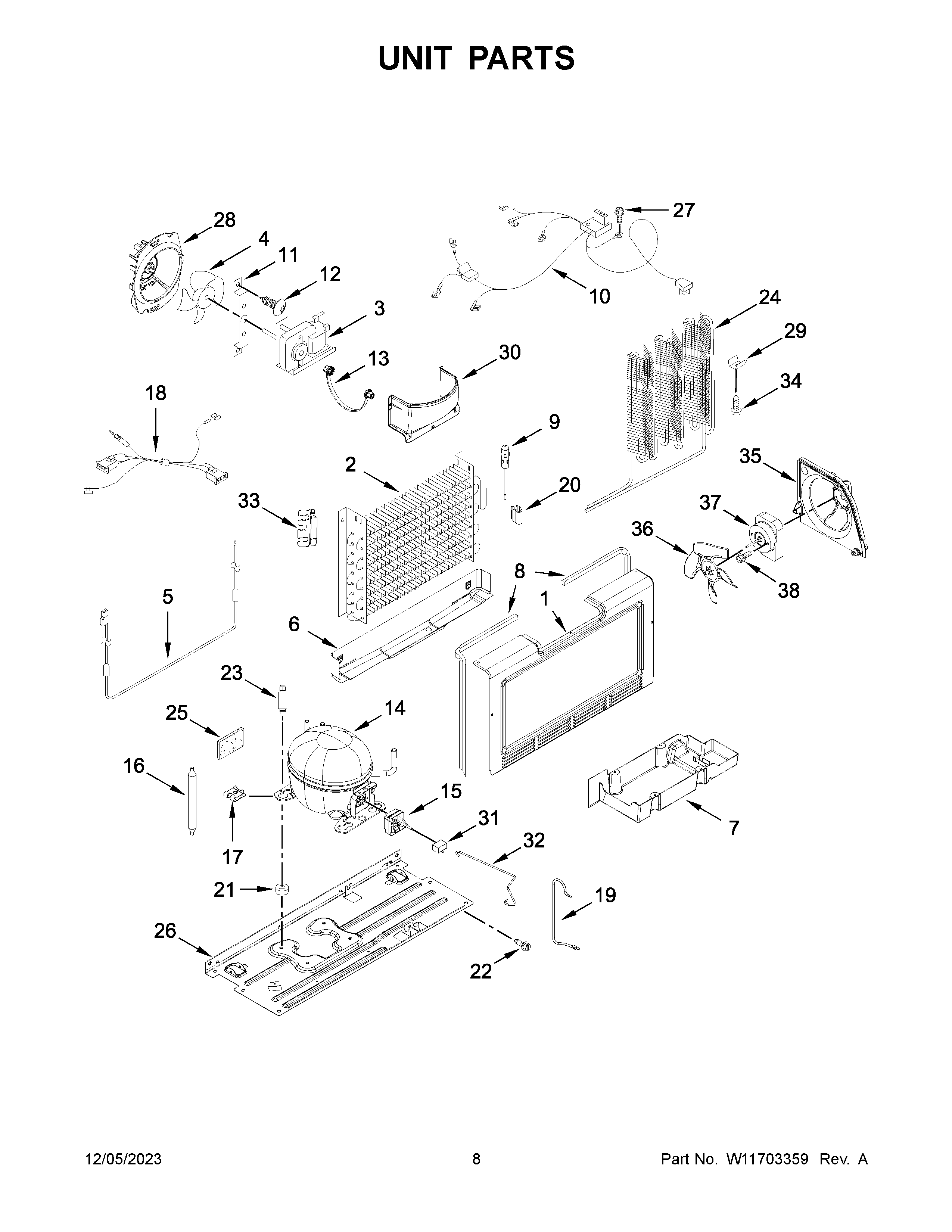

WZF79R20DW08 05 – UNIT PARTS

Products

Position	Product
NI	WPL ARIC8712347CE1562AEF84A31A01CCD36A0
1	W11551256 Whirlpool Refrigerator Evaporator Cover
2A	W11504450 Whirlpool Refrigerator Coupler
2	W11572047 Whirlpool Refrigerator Evaporator
3	W11499658 Whirlpool Refrigerator Evaporator Motor
4	WP2169142 Whirlpool Fan Blade
5	W11562215 Whirlpool Refrigerator Heater
6	W11562216 Whirlpool Shield
7	W10574291 Whirlpool Refrigerator Drip Pan
8	WPW10574368 Whirlpool Refrigerator Gasket
9	WPW10384183 Whirlpool Thermistor
10	W11648069 Whirlpool Wire Harness
11	CLIP, EVAPORATOR MOTOR
12	SCREW
13	W11690160 Whirlpool Grommet
14	W11547313 Whirlpool Refrigerator Compressor
14A	W11504420 Whirlpool Microwave Coupler
14B	W11504431 Whirlpool Microwave Coupler
14C	W11506622 Whirlpool Refrigerator Coupler
14D	W11506635 Whirlpool Refrigerator Valve Coupler
15	W11524472 Whirlpool Refrigerator Start Device
16B	W11504448 Whirlpool Refrigerator Coupler
16	W11109499 Whirlpool Refrigerator Tube
17	W10697017 Whirlpool Clip
18	W11741458 Whirlpool Harness
19	TUBE, SUCTION
20	W11546684 Whirlpool Refrigerator Clip
21	WPW10169124 Whirlpool Refrigerator Grommet
22	BOLT
23	SCREW
24	W11507065 Whirlpool Refrigerator Condenser
24B	W11506623 Whirlpool Refrigerator Coupler
24A	W11578570 Whirlpool Refrigerator Coupler
25	W11553819 Whirlpool Refrigerator Insulation
26	PAN, COMPRESSOR
27	SCREW
28	W10574469 Whirlpool Refrigerator Scroll Fan
29	W10683556 Whirlpool Refrigerator Clip
30	W10574274 Whirlpool Refrigerator Evaporator Cover
31	W11631831 Whirlpool Capacitor
32	WPL W11379613
33	WPL W11452250
34	W11544659 Whirlpool Refrigerator Screw
35	W11605794 Whirlpool Air Baffle
36	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
37	W11127829 Whirlpool Refrigerator Condenser Motor
38	W11501418 Whirlpool Refrigerator Screw
