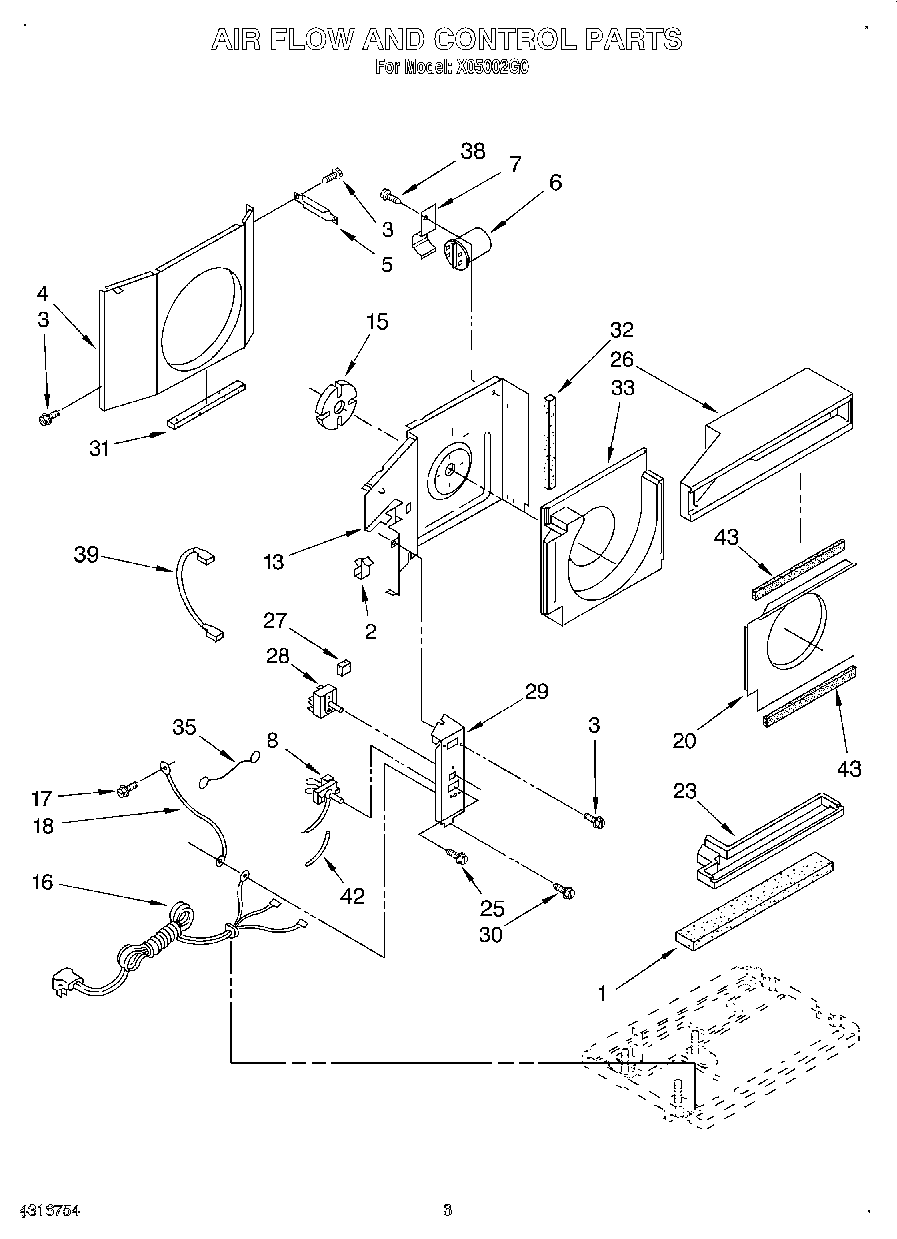

X05002G0 02 – AIRFLOW AND CONTROL

Products

Position	Product
1	Insulation, Drain Pan
2	Clamp, Wiring
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Control, Temperature
13	Wall, Dividing
15	Insulation, Motor
16	Cord, Appliance
18	Wire, Ground
20	Shroud, Evaporator
23	Pan, Evaporator
25	Screw, 6-32 x .175
26	Hood, Air Housing
27	Sealer, Tube
28	Switch, Rotary
29	Panel, Control
30	Screw 8-18 x .295
32	WP854334 Whirlpool Air Conditioner Sealing Strip
33	Housing, Air
35	Wire, Lead
38	Screw, 8 x 3/8
39	Wire, Jumper
42	Insulation, Sleeve
43	Seal (2)
