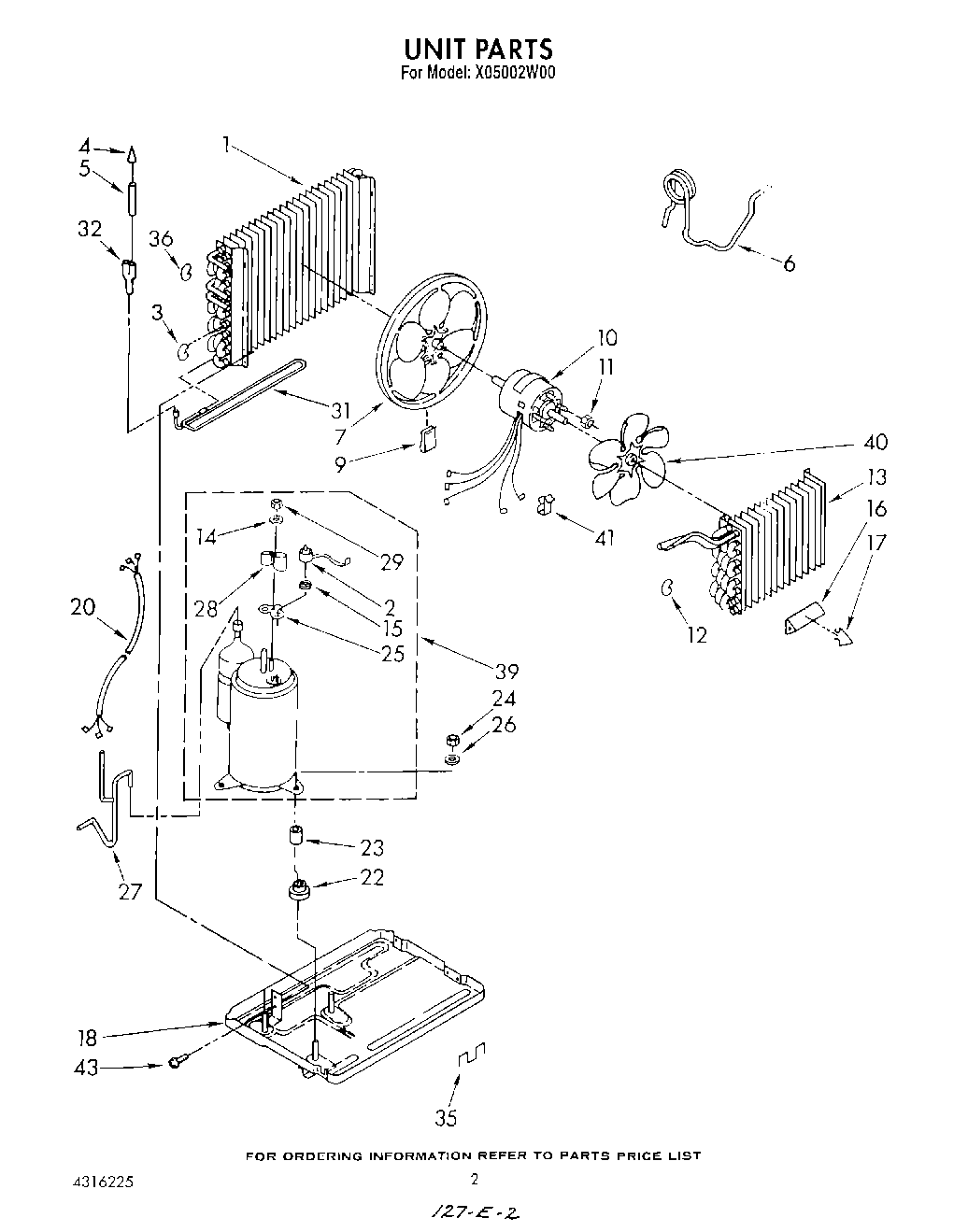

X05002W00 02 – UNIT

Products

Position	Product
	Installation, Instructions
	List, Repair Parts
	Sheet, Tech
	Guide, Energy
	Guide, Use And Care
1	Condenser
2	WP1161170 Whirlpool Air Conditioner Overload
3	Bend, Return Condenser (4)
4	Strainer
5	Tube & Strainer (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan
9	Clip, Balancing
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Bend Return
13	Evaporator
14	Gasket, Nut
15	Spring, Overload
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
20	Harness, Wiring
22	Grommet (4)
23	Sleeve, Compressor (3)
25	Gasket, Terminal Cover
26	WP120393 Whirlpool Washer Assembly
27	Tube, Suction
28	Cover, Terminal
29	Locknut (3)
31	Tube, Condenser Extension
32	Tube, Flow Divider
35	Clip, Mtg. (2) (Base to Front)
36	Bend, Return Condenser (10)
39	Compressor Assembly
40	Fan, Blade Evaporator
41	Clamp, Wiring
43	Screw, Repair
43	WP489069 Whirlpool Compactor Screw
