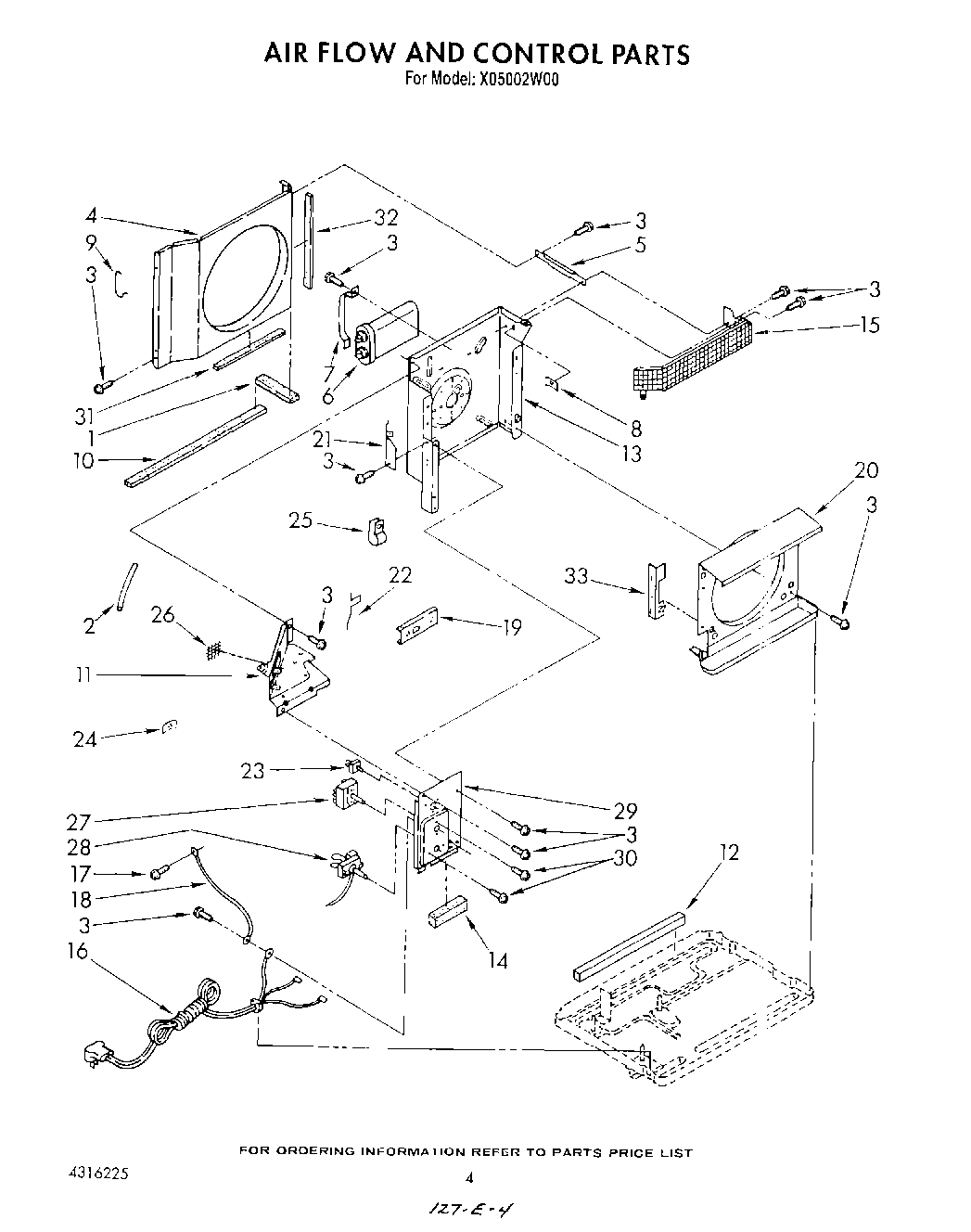

X05002W00 03 – AIRFLOW AND CONTROLadmin2025-04-26T11:16:20+00:00X05002W00 03 – AIRFLOW AND CONTROL
Products
| Position | Product |
|---|
| 1 | Seal, Condensate |
| 2 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 3 | WP489069 Whirlpool Compactor Screw |
| 3 | Screw, Repair |
| 4 | Shroud, Condenser |
| 5 | Support, Unit |
| 6 | Capacitor, Running |
| 7 | Bracket, Capacitor |
| 8 | Nut, Speed No.8A |
| 9 | Clip, Shroud (2) |
| 10 | Seal, Condenser |
| 11 | Extension, Dividing Wall (Requires Insulation Part No. 469938) |
| 12 | Seal, Base, Flange |
| 13 | Wall, Dividing Assembly (Requires Insulation Part No. 469938) |
| 14 | Seal, Control Panel |
| 15 | Guard, Evaporator Impeller |
| 16 | Cord, Appliance |
| 17 | WPW10141604 Whirlpool Screw |
| 18 | Wire, Ground |
| 19 | Door, Exhaust |
| 20 | Shroud, Evaporator |
| 21 | Plate, Dividing Wall |
| 22 | Arm, Exhaust Door |
| 23 | Actuator, Door |
| 24 | Spring, Retainer |
| 25 | Clamp, Cable |
| 26 | Screen, Exhaust Door |
| 27 | Switch, Rotary |
| 28 | Control, Temperature |
| 29 | Panel, Control |
| 30 | Screw, 6-32 x .175 |
| 31 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 32 | Seal, Condenser (R.S.) |
| 33 | Bracket, Evaporator Mounting |
