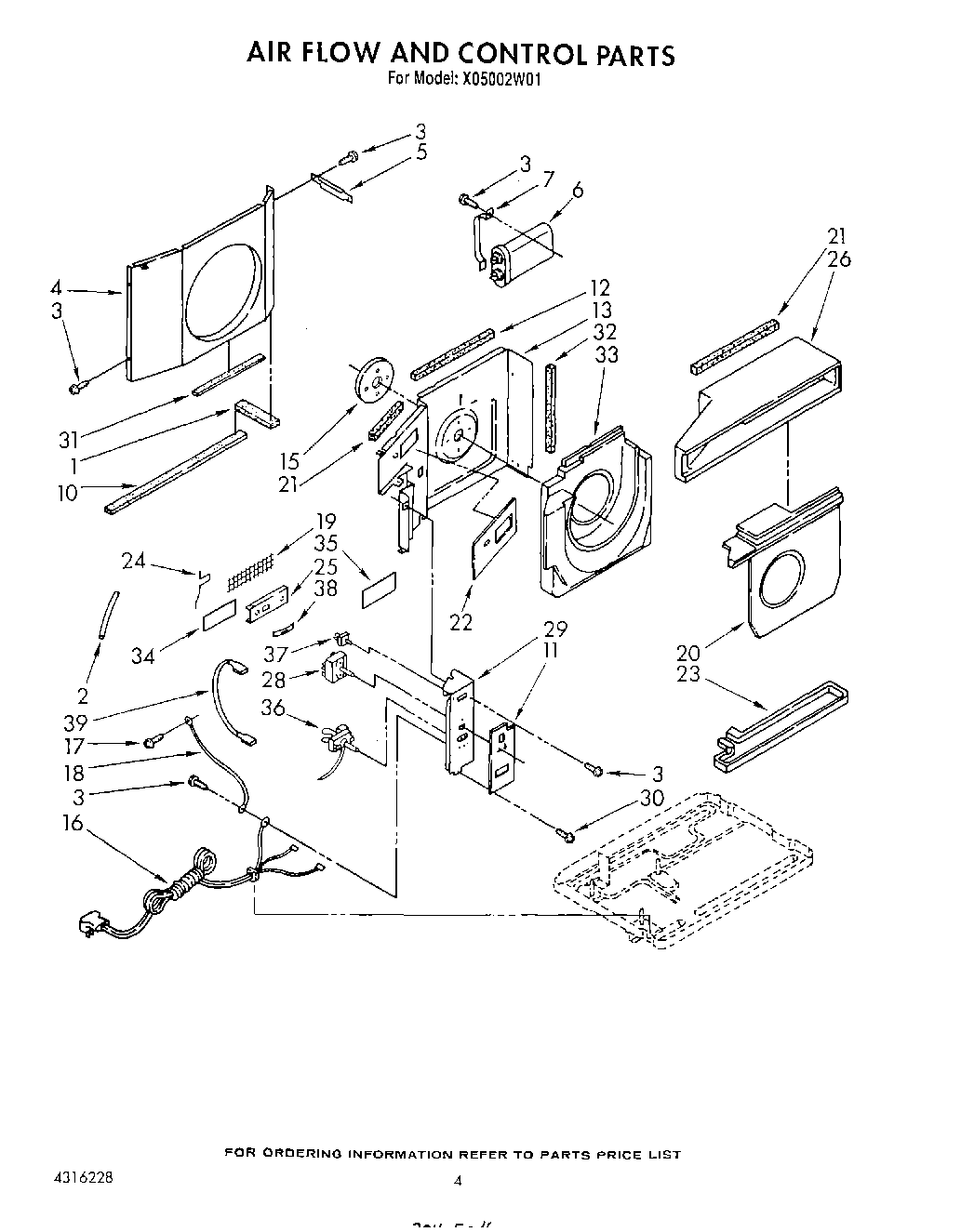

X05002W01 03 – AIRFLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	212643 Whirlpool Refrigerator Permagum Sealer
3	Screw, 8 x 3/8
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Run
7	Bracket, Capacitor
10	Seal
11	Insulation, Control Panel
12	WP854334 Whirlpool Air Conditioner Sealing Strip
13	Wall, Dividing
15	Insulation, Motor
16	Cord, Appliance
17	WPW10141604 Whirlpool Screw
18	Wire, Ground
19	Screen, Exhaust Door
20	Orifice, Air Housing
22	Insulation, Exhaust Door
23	Pan, Evaporator
24	Arm, Exhaust Door
25	Door, Exhaust
26	Hood, Air Housing
28	Switch, Rotary
29	Panel, Control
30	Screw, 6-32 x .175
33	Housing, Air
34	Barrier Protective
35	Seal, Barrier
36	Thermostat
37	Actuator, Door
38	Spring, Retainer
39	Wire, Jumper
