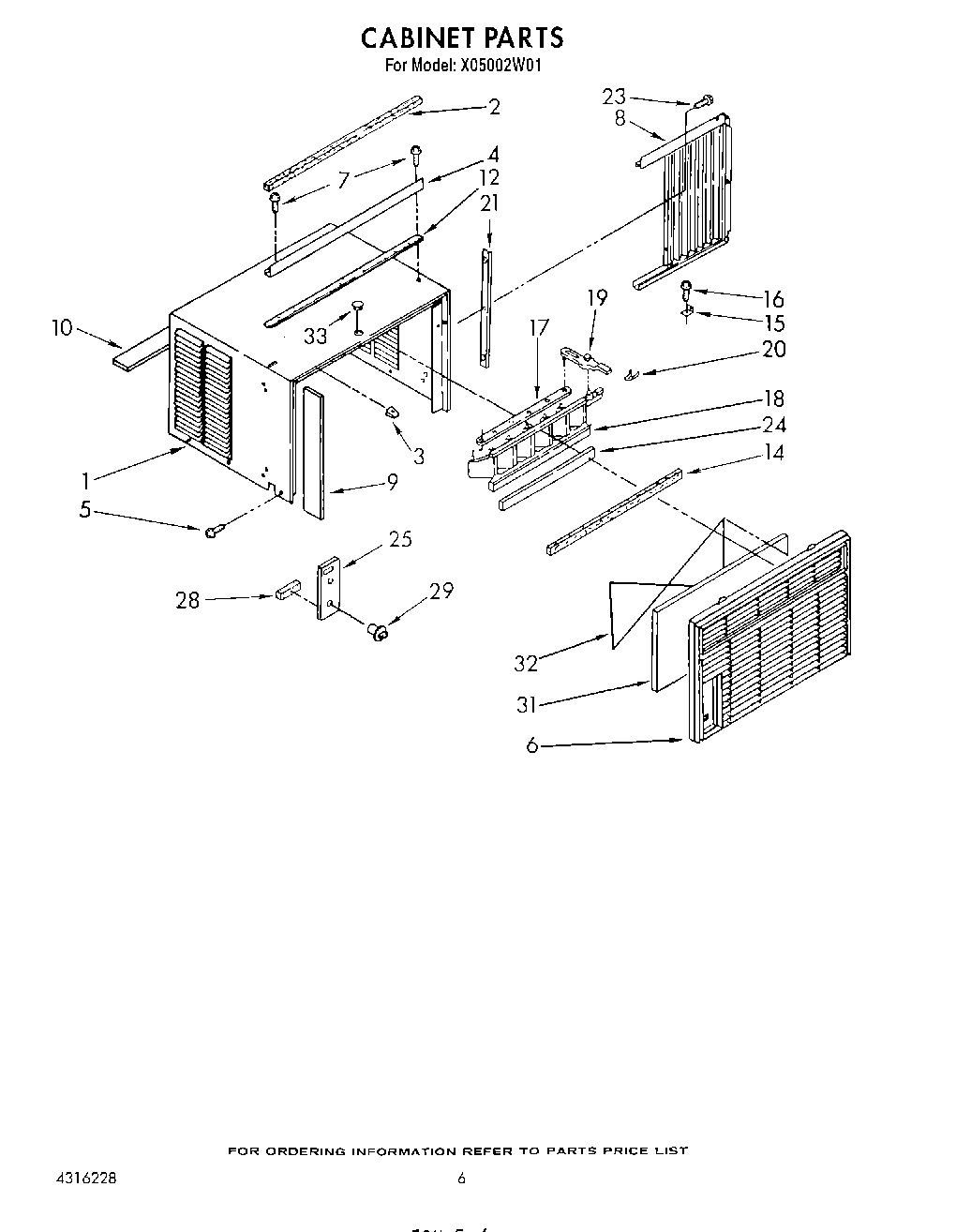

X05002W01 04 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	Clip, Vertical Louver
4	Channel, Top
5	WP489128 Whirlpool Refrigerator Screw
6	Front, Cabinet Assembly
7	WP308685 Whirlpool Microwave Screw
8	Housing, Curtain (R.S.)
8	Housing, Curtain (L.S.)
9	Insulation, Side
10	Insulation, Top
12	Seal, Strip
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver (2)
20	Detent Spring (2)
21	Retainer, Curtain (2)
23	Screw, 8 x 7/16
24	Seal, Vertical Louver
25	Escutcheon
28	WP854334 Whirlpool Air Conditioner Sealing Strip
29	Knobs, (3)
31	Filter
32	Retainer, Filter
33	Cover, Hole
