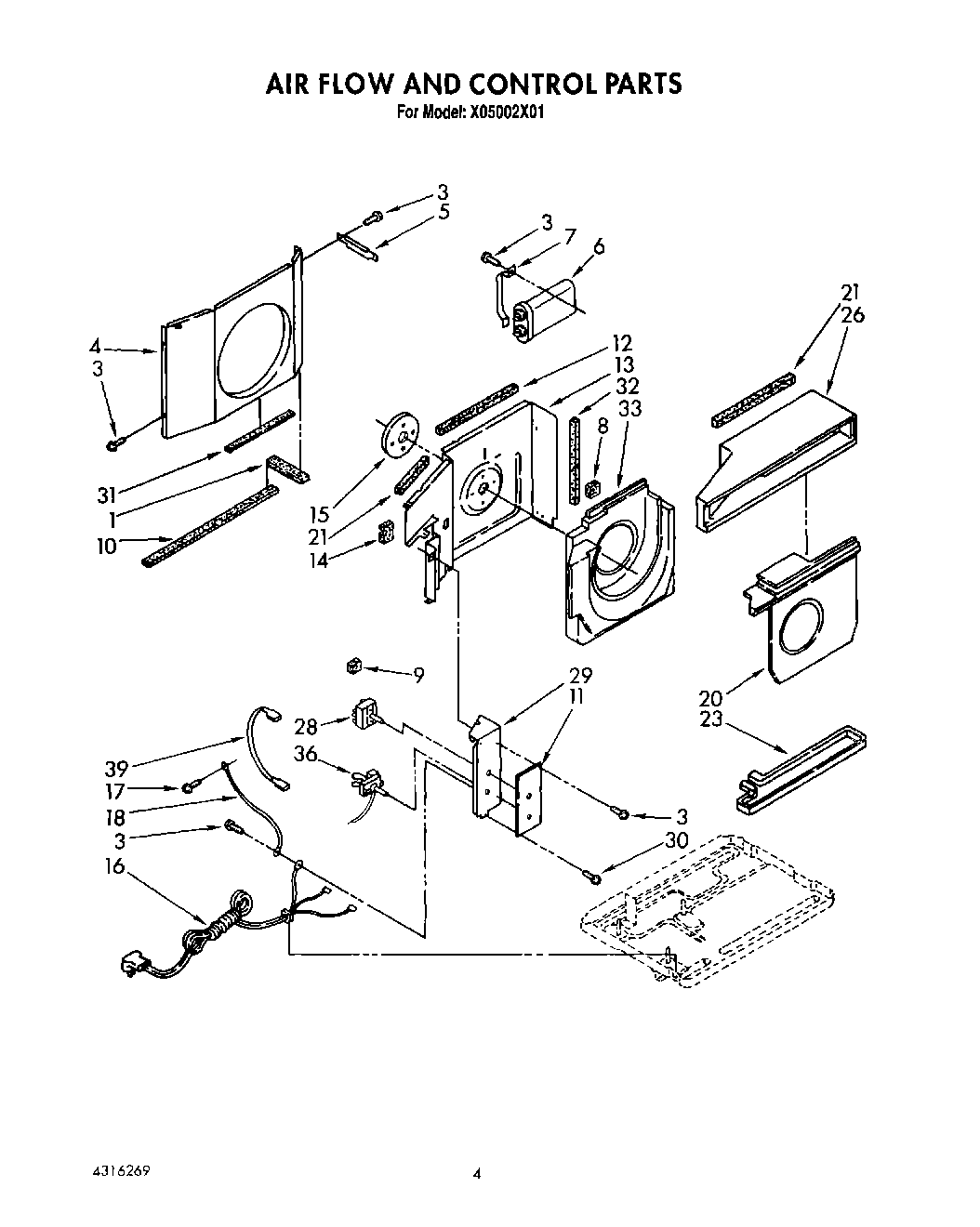

X05002X01 03 – AIRFLOW AND CONTROL

Products

PositionProduct
1Seal, Condensate
3Screw 8-18 x .295
4Shroud, Condenser
5Support, Unit
6Capacitor, Running
7Bracket, Capacitor
8Seal, Condenser (R.S.)
9Sealer, Tube
10Seal
11Insulation, Control Panel
12WP854334 Whirlpool Air Conditioner Sealing Strip
13Wall, Dividing
14Sealer, Tube
15Insulation, Motor
16Cord, Appliance
17Screw, 8 x 3/8
18Wire, Ground
20Orifice, Air Housing
23Pan, Evaporator
26Hood, Air Housing
28Switch, Rotary
29Panel, Control
30Screw, 6-32 x .175
33Housing, Air
36Control, Temperature
39Wire, Jumper
