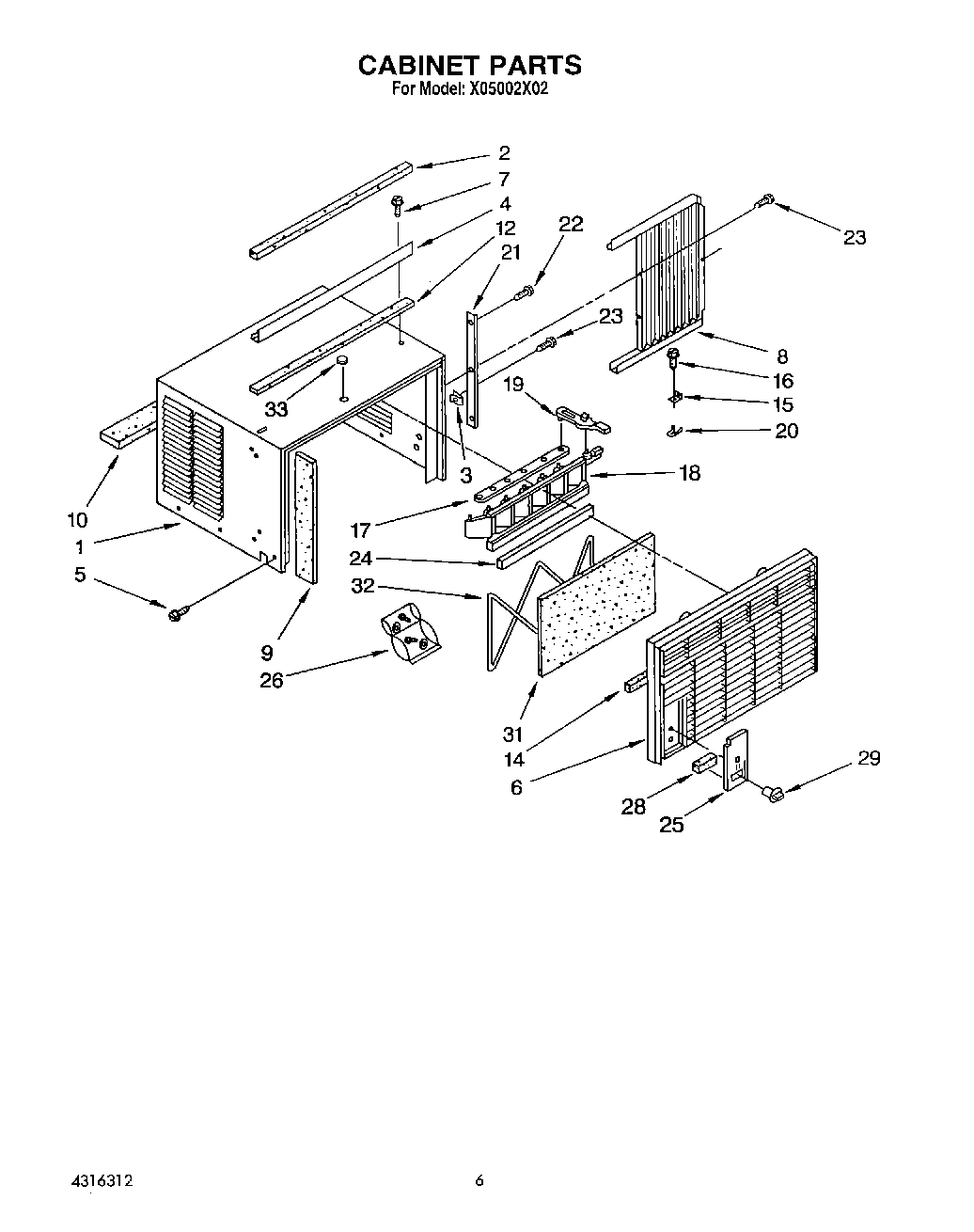

X05002X02 04 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3Clip, Vertical Louver
4Channel, Top
5WP489069 Whirlpool Compactor Screw
6Front, Cabinet Assembly
7WP308685 Whirlpool Microwave Screw
8Housing, Curtain (L.S.)
8Housing, Curtain (R.S.)
9Insulation, Side
10Insulation, Top
12Seal, Strip
15Bracket
16Screw, Wood 8-15 x .750
17Link, Louver (2)
18Louver, Vertical
19Handle, Louver (2)
20Detent Spring (2)
21Retainer, Curtain (2)
22Screw 8-18 x .295
23Screw, 8 x 7/16
24Seal, Vertical Louver
25Escutcheon
26Bag, Accessory
28WP854334 Whirlpool Air Conditioner Sealing Strip
29Knobs, (3)
31Filter
32Retainer, Filter
33Cover, Hole
