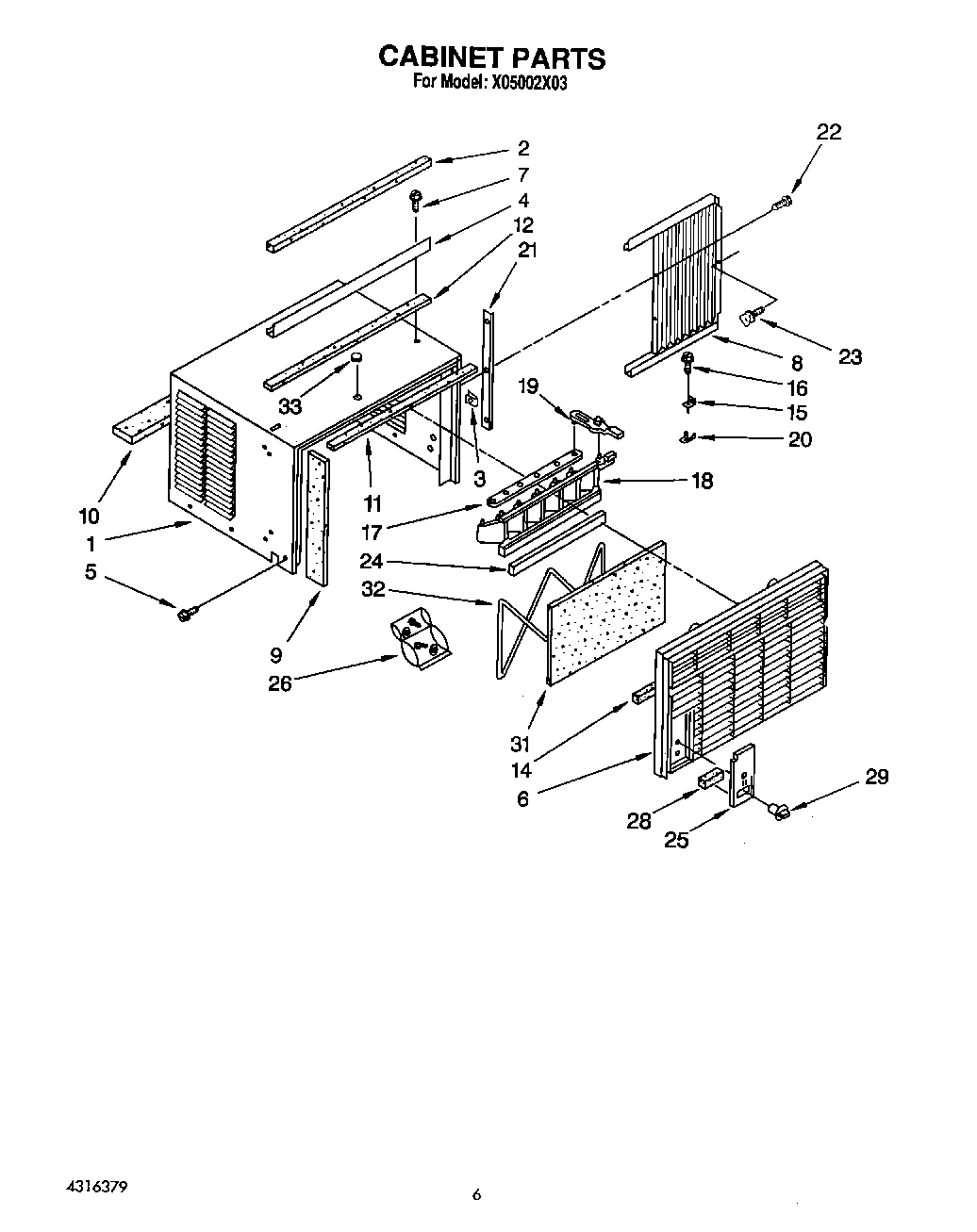

X05002X03 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	Clip, Vertical Louver
4	Channel, Top
5	WP489069 Whirlpool Compactor Screw
6	Front, Cabinet Assembly
7	WP308685 Whirlpool Microwave Screw
8	Housing, Curtain (L.S.)
8	Housing, Curtain (R.S.)
9	Insulation, Side
10	Insulation, Top
11	Seal
12	Seal, Strip
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver (2)
20	Detent Spring (2)
21	Retainer, Curtain (2)
22	Screw 8-18 x .295
23	Thumbscrew (2)
24	Seal, Vertical Louver
25	Escutcheon
26	Bag, Accessory
28	WP854334 Whirlpool Air Conditioner Sealing Strip
29	Knobs, (3)
31	Filter
32	Retainer, Filter
33	Cover, Hole
