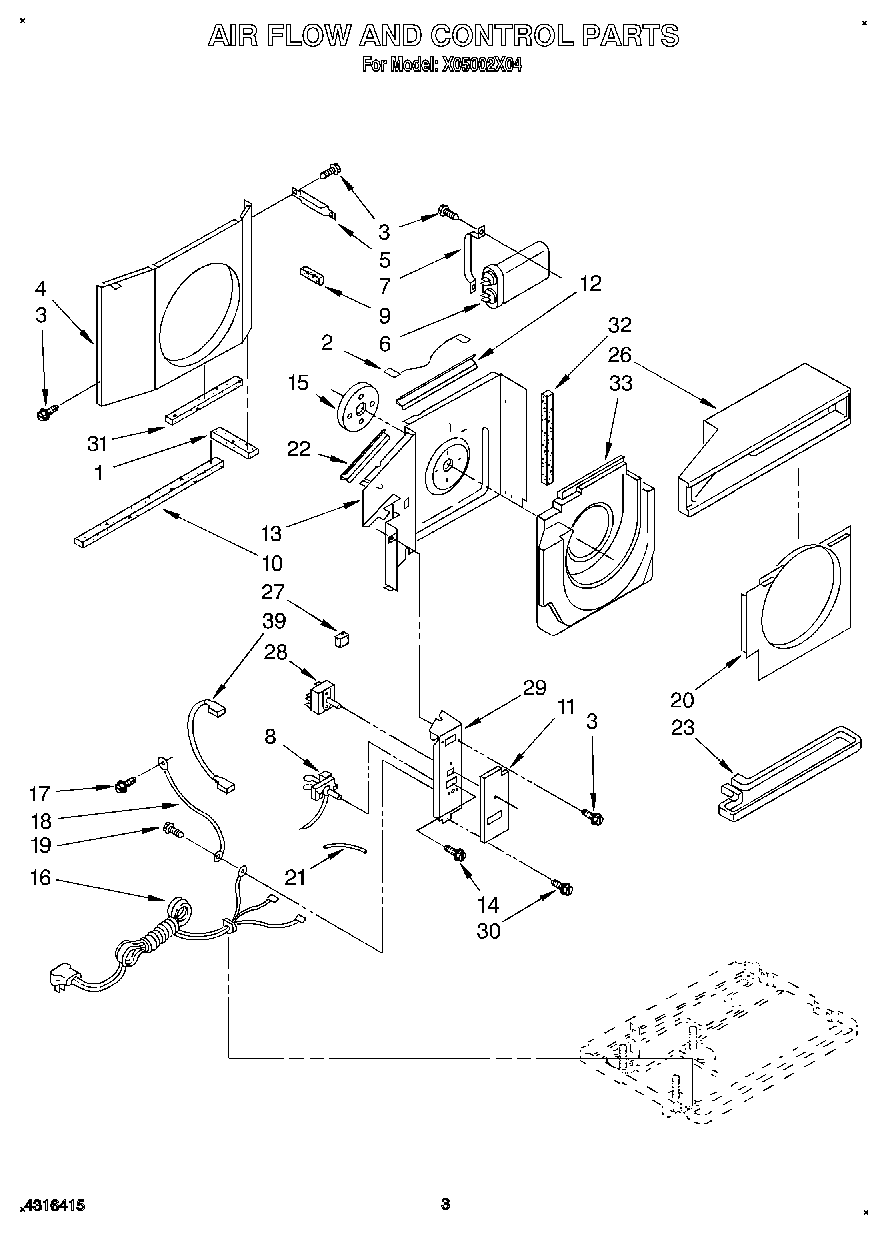

X05002X04 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Wire, Lead
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Control, Temperature
9	Seal, Condenser (R.S.)
10	Seal
11	Insulation, Control Panel
12	Guard, Edge Seal
13	Wall, Dividing
14	Screw, 6-32 x .175
15	Insulation, Motor
16	Cord, Appliance
17	Screw, 8 x 3/8
18	Wire, Ground
19	Screw 8-18 x .295
20	Shroud, Evaporator
21	Insulation, Sleeve
22	Guard, Edge Seal
23	Pan, Evaporator
26	Hood, Air Housing
27	Sealer, Tube
28	Switch, Rotary
29	Panel, Control
30	Screw, 8-18 x 3/8
32	WP854334 Whirlpool Air Conditioner Sealing Strip
33	Housing, Air
39	Wire, Jumper
