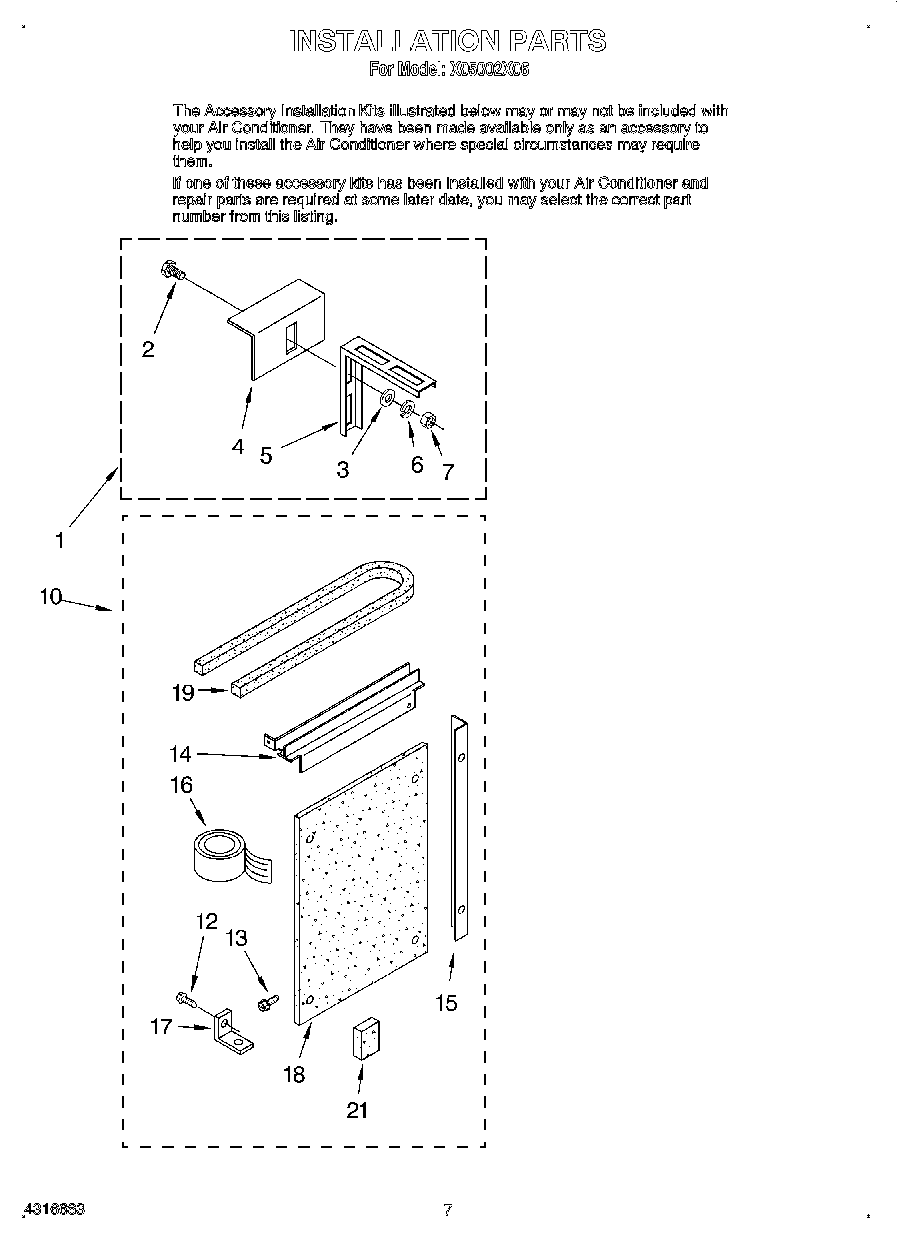

X05002X06 05 – INSTALLATION PARTS

Products

Position	Product
	Instructions Installation (Economy Mounting Kit)
	Instructions, Installation (Outside Sill Kit)
1	Kit, Outside Sill Bracket
2	Bolt, 1/4 x 3/4 (6)
3	WP120393 Whirlpool Washer Assembly
4	Bracket, Sill Mounting (2)
5	Bracket, Rail Support (2)
6	Lockwasher (6)
7	Nut, 1/4-20 (6)
10	Kit, Standard Window Installation
12	Screw, Wood
13	WP965173 Whirlpool Dishwasher Screw
14	Bracket, L.S.
14	Bracket, R.S.
15	Angle, Side (2)
16	Strip, Seal
17	Bracket
18	Board, Filler
19	Seal, Meeting Rail
21	Spacer, Block (4)
