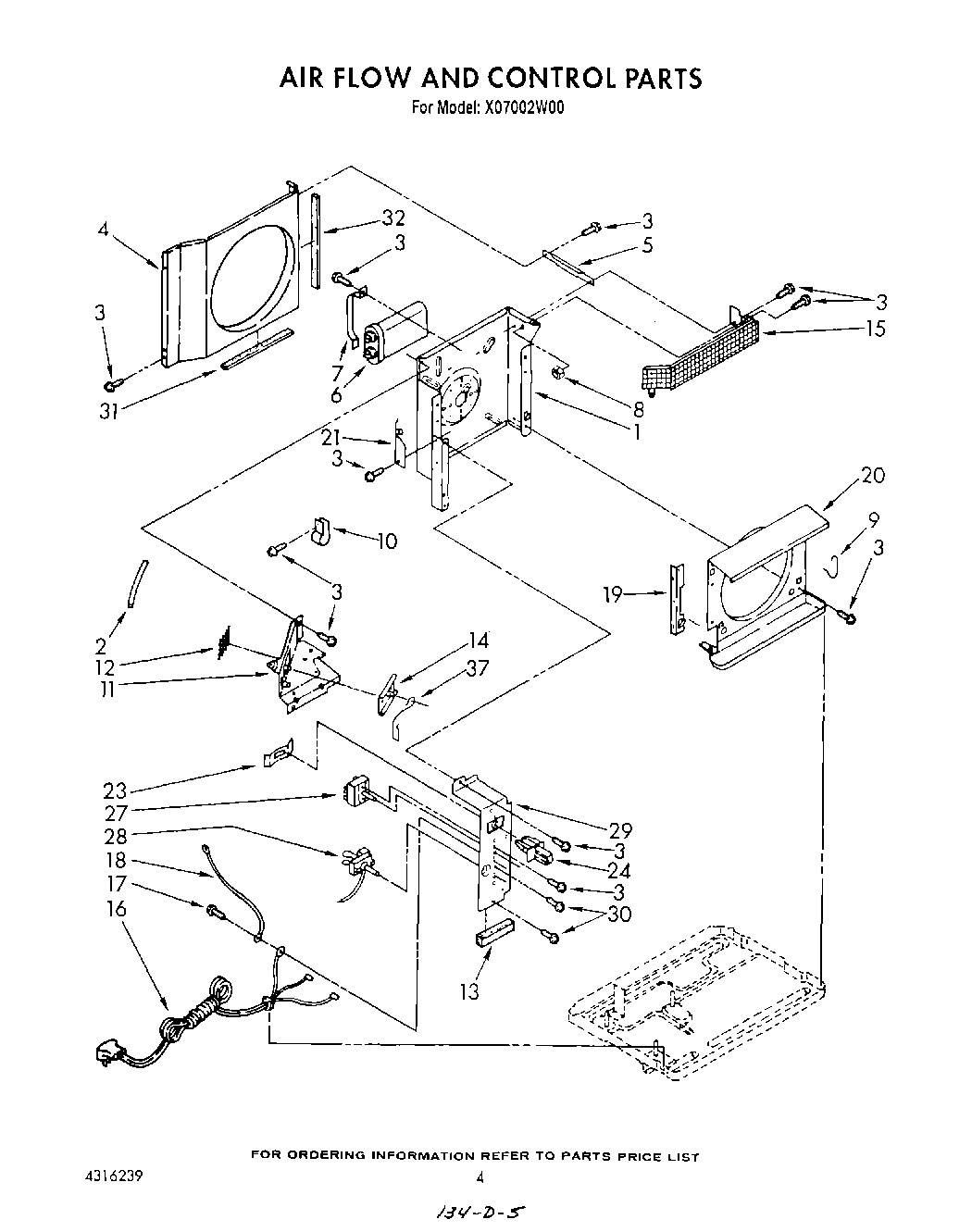

X07002W00 03 – AIR FLOW AND CONTROL, LITERATURE

Products

PositionProduct
1Wall, Dividing Assembly (Requires Insulation Part No. 469938)
2212643 Whirlpool Refrigerator Permagum Sealer
3WP489069 Whirlpool Compactor Screw
3Screw, Repair
4Shroud, Condenser
5Support, Unit
6Capacitor, Running
7Bracket, Capacitor
8Nut, Speed No.8A
9Clip, Shroud (2)
10Clamp, Cable
11Extension, Dividing Wall (Requires Insulation Part No. 469938)
12Screen, Exhaust Door
13Seal, Control Panel
14Door, Exhaust
15Guard, Evaporator Impeller
16Cord, Appliance
17WPW10141604 Whirlpool Screw
18Wire, Ground
19Bracket, Evaporator Mounting
20Shroud, Evaporator
21Plate, Dividing Wall
23Spring, Retainer
24Actuator, Door
27Switch, Rotary
28Control, Temperature
29Panel, Control
30Screw, 6-32 x .175
31Seal, Condenser
32Seal, Condenser (R.S.)
37Arm, Exhaust Door
