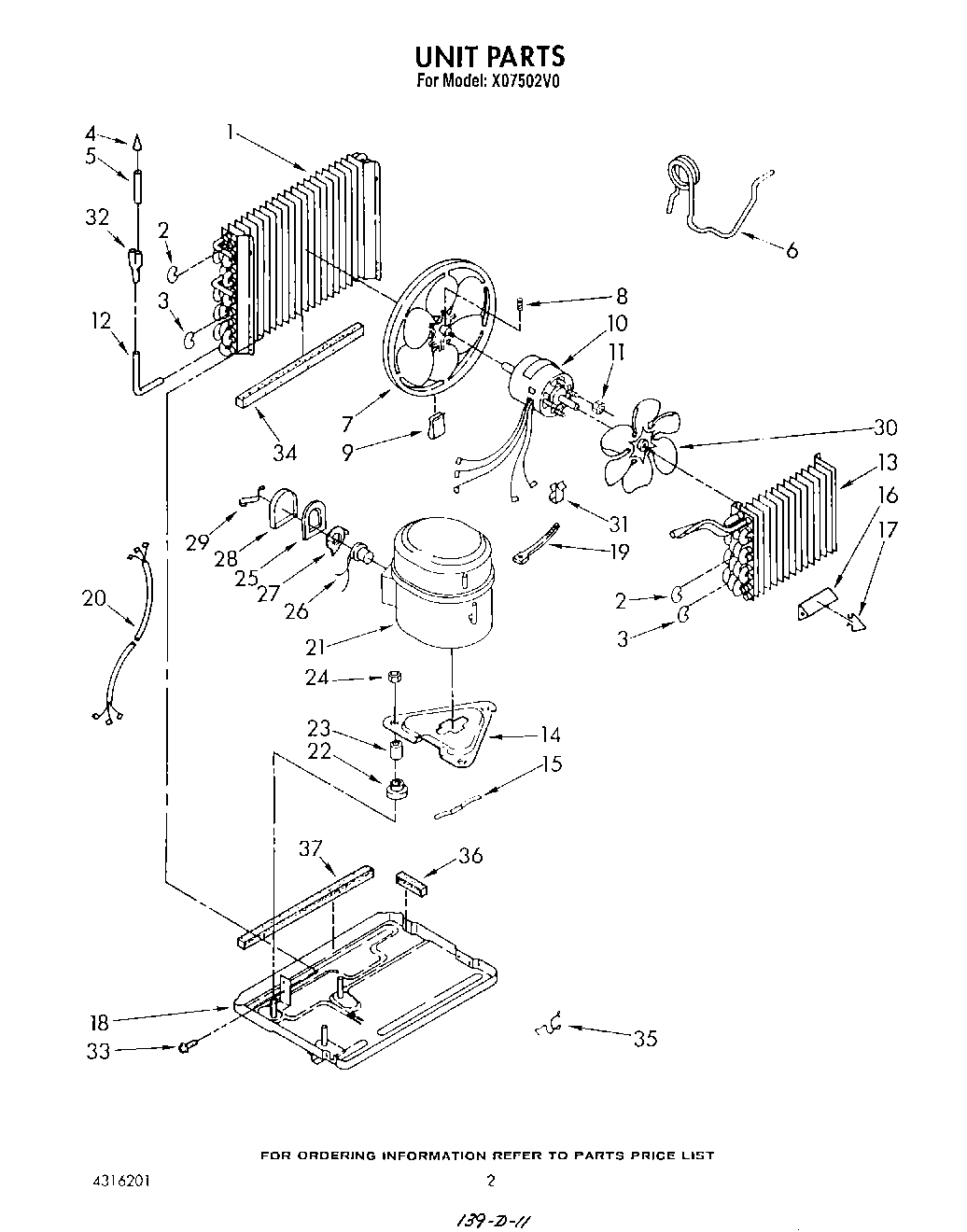

X07502V0 02 – UNIT

Products

Position	Product
	List, Repair Parts
	Guide, Energy
	Sheet, Tech And Wiring Diagram
	Installation, Instructions
1	WPL 950844
2	Bend, Return Evaporator (4)
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	WPL 950843
7	WPL 997885
8	Setscrew, 5/16 x 1/4
9	Clip, Fan Balancing
10	WPL 949678
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Outlet
13	WPL 950840
14	WPL 646497
15	Spring, Clip
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	WPW10339879 Whirlpool Wire Tie
20	Harness, Wiring
21	Compressor
22	Grommet (4)
23	Sleeve (3)
24	Locknut (3)
25	Gasket, Terminal Cover
26	WPL 950834
27	Spring, Overload
28	Cover, Terminal
29	Retainer, Terminal Cover
30	Blade, Fan (Evaporator)
31	Clamp, Wiring
32	Tube, Flow Divider
33	Screw, Repair
33	WP489069 Whirlpool Compactor Screw
34	WP854334 Whirlpool Air Conditioner Sealing Strip
35	Clip, Mtg. (2) (Base to Front)
36	Seal, Condensate
37	Seal, Base, Flange
