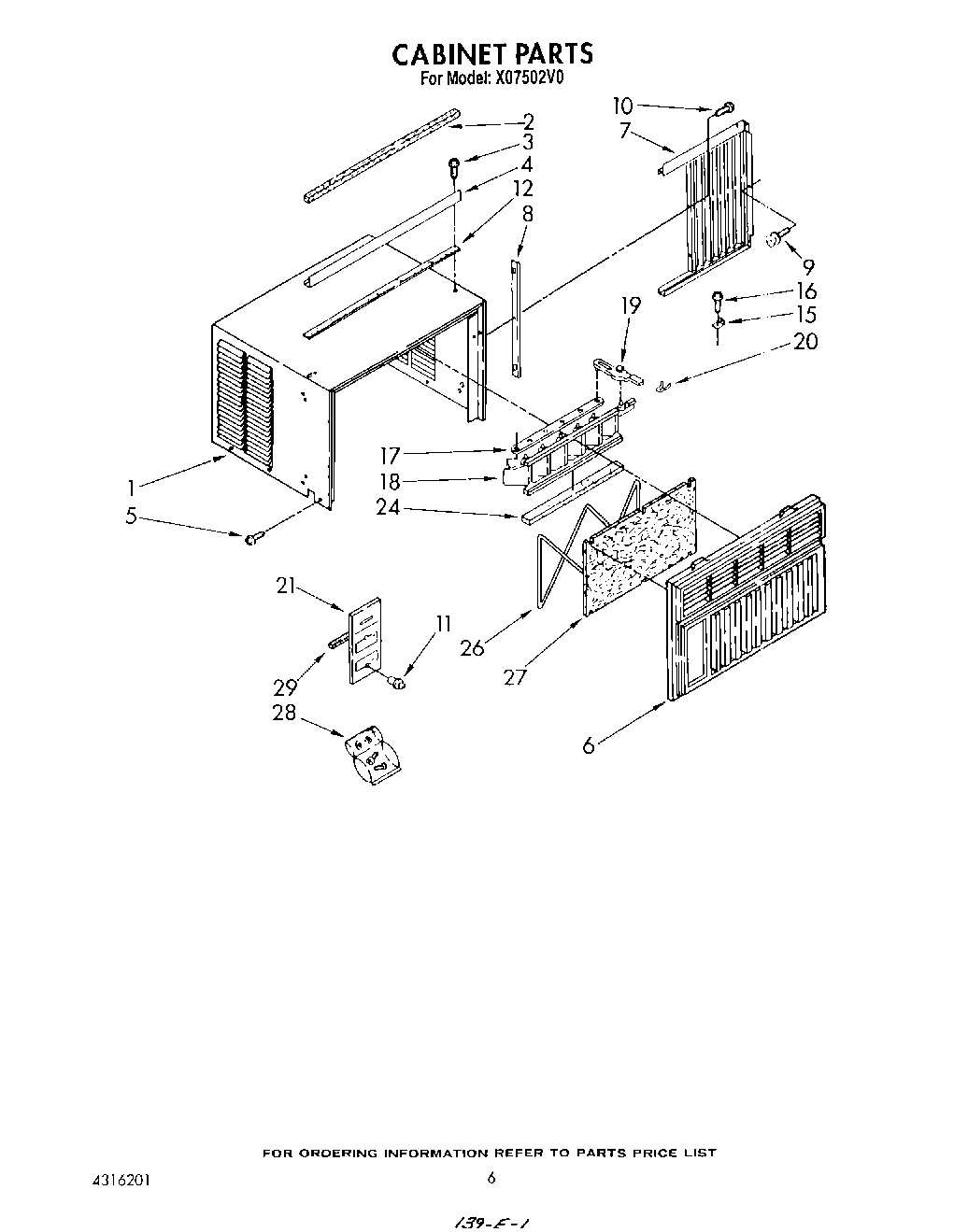

X07502V0 04 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP308685 Whirlpool Microwave Screw
4	Channel, Top
5	WP489128 Whirlpool Refrigerator Screw
6	Front, Cabinet Assembly
7	Housing, Curtain (L.S.)
7	Housing, Curtain (R.S.)
8	Retainer, Curtain (2)
9	Thumbscrew (2)
10	Screw, 8 x 7/16
11	Knob, Control (3)
12	Seal, Strip
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver (2)
20	Detent Spring (2)
21	Plate, Escutcheon
24	Seal, Vertical Louver
26	Retainer, Filter
27	Filter
28	Bag, Accessory
29	WP854334 Whirlpool Air Conditioner Sealing Strip
