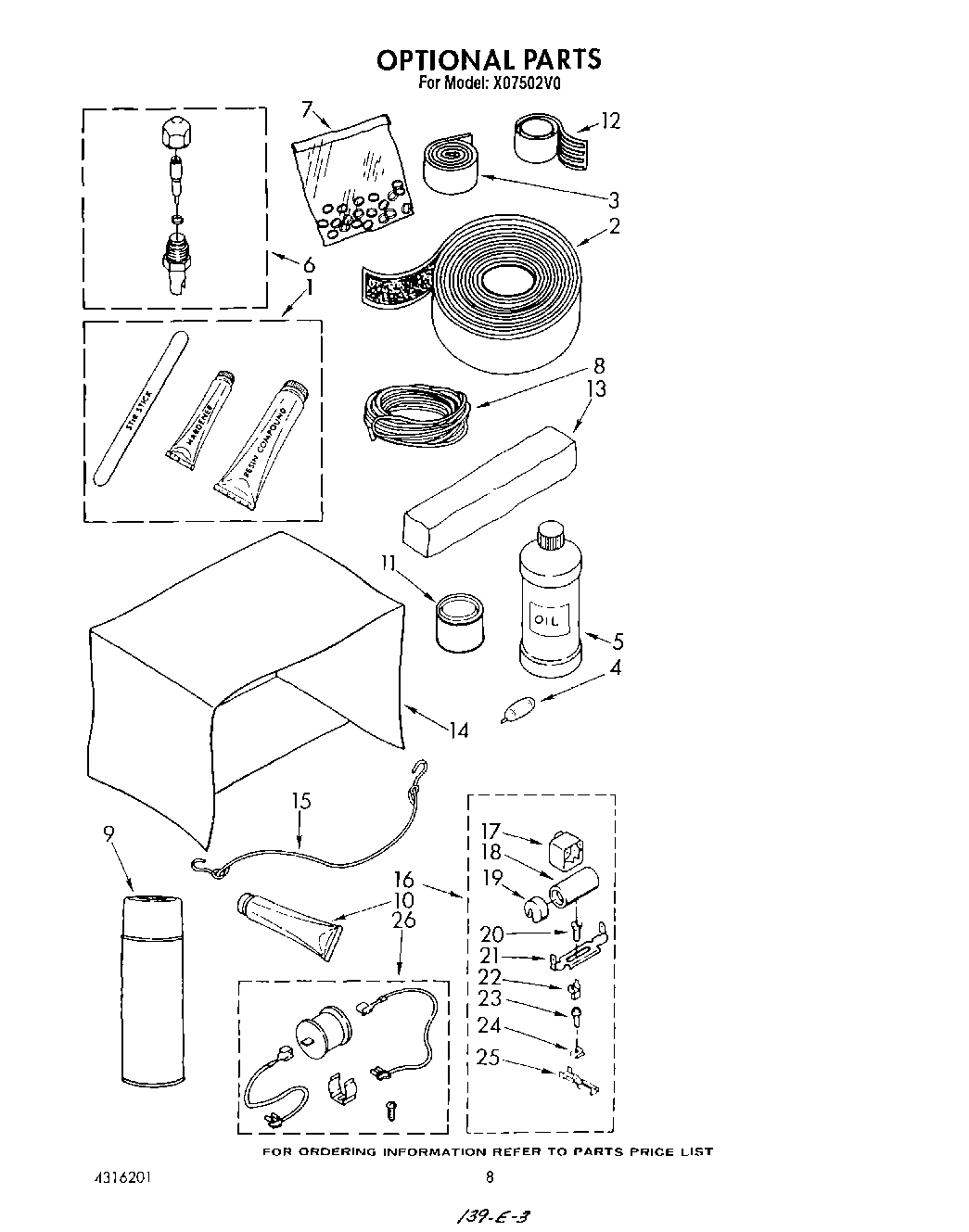

X07502V0 06 – LIT/OPTIONAL

Products

Position	Product
1	WPL 799833
2	No Drip Tape (For Sweating Tubes)
3	TAPE, VINYL (3/4 X 108``)
4	Oil, Turbine 1 Fl. Oz.
5	Oil, Turbine 8 Fl. Oz.
6	VALVE, ACCESS (5/8``)
6	VALVE, ACCESS (1/2``)
6	WP978025 Whirlpool Refrigerator Valve
6	978030 Whirlpool Refrigerator Valve
6	978027 Whirlpool Refrigerator Primary Valve
6	978026 Whirlpool Refrigerator Primary Valve
6	876764 Whirlpool Refrigerator Primary Valve
7	Seal, Ring (Access Valve) (20 - Pack)
8	Wire, 25` Roll (Black 14 Ga.)
8	Wire, 25`` Roll (White 12 GA.)
8	Wire, 25`` Roll (Black 12 GA.)
8	Wire, 25` Roll (Blue 16 Ga.)
8	Wire, 25`` Roll (White 14 GA.)
8	Wire, 25` Roll (Red 14 Ga.)
8	Wire, 25` Roll (Red 12 Ga.)
9	Adhesive, Insulation (24 Oz. Spray)
10	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
11	Lacquer, Starlight Gray (1/2 Pt. Uncut)
12	212643 Whirlpool Refrigerator Permagum Sealer
13	4318168 Whirlpool Refrigerator Primary Permagum Sealer
14	484184 Whirlpool Air Conditioner Winter Cover
14	Cover, Winter (28 x 19 x 31``)
14	Cover, Winter (19``x12``x14``)
14	Cover, Winter (27 x 19 x 6 to 27``)
15	Retainer, Cord (Winter Cover)
16	Hard Start Kit (Use With 485595 Compressor)
17	Relay (Component Of Start Kit)
18	Capacitor, Start
21	Bracket, Capacitor (Component Of Start Kit)
22	Multiplier, Terminal (Component Of Start Kit)
23	WP965173 Whirlpool Dishwasher Screw
24	488660 Whirlpool Refrigerator Nut
25	Clip, Terminal (Component Of Start Kit)
26	WPL 484220
