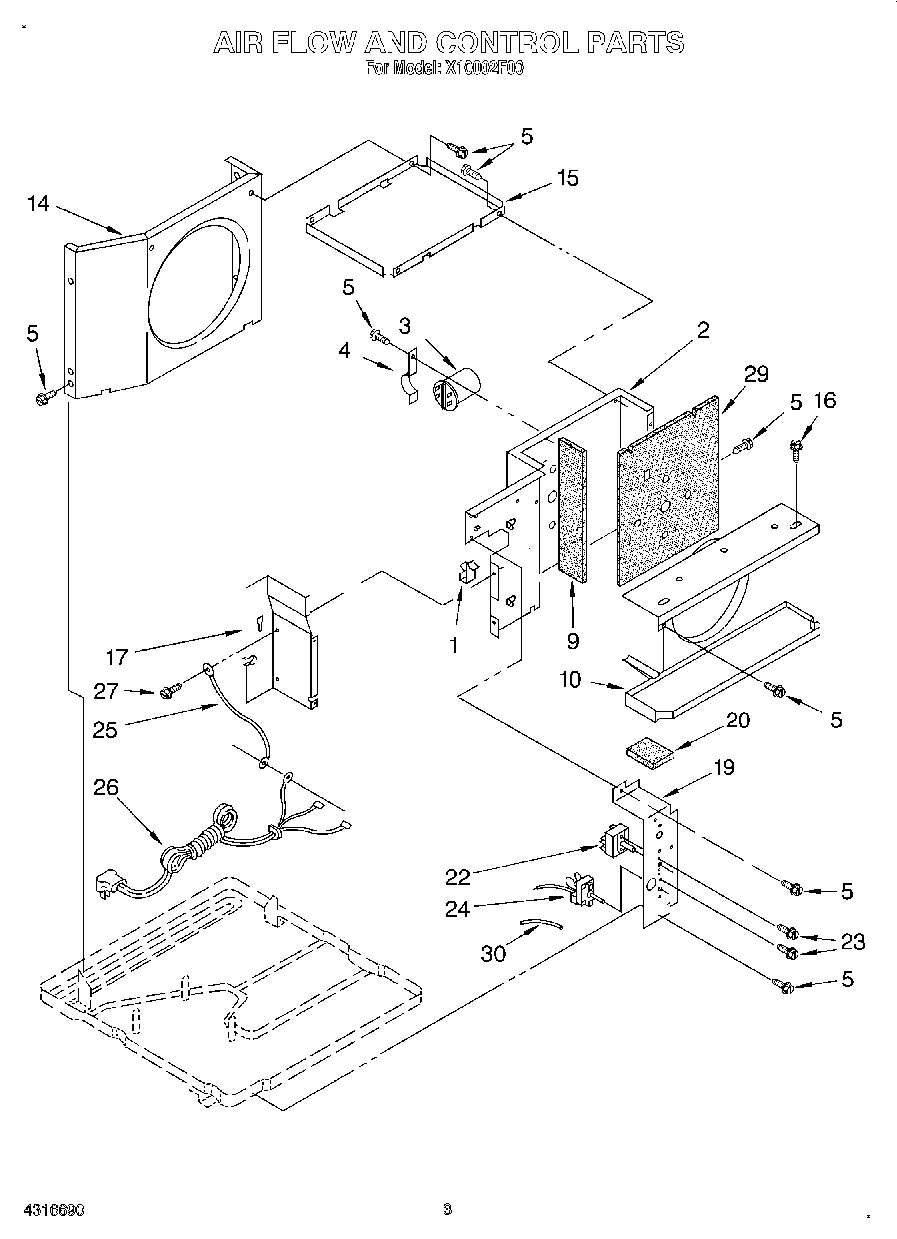

X10002F00 02 – AIR FLOW AND CONTROL

Products

PositionProduct
1Clamp, Wiring
2Wall, Dividing
3Capacitor, Running
4Bracket, Capacitor
5WP489069 Whirlpool Compactor Screw
9Insulation (Side, Dividing Wall)
10Shroud, Evaporator
14Shroud, Condenser
15Support, Unit
16WP488729 Whirlpool Refrigerator Door Screw
17Extension, Dividing Wall
19Panel, Control
20Insulation, Top (Control Panel)
22Switch, Rotary
23Screw, 6-32 x .175
24Thermostat
25Wire, Ground
26Cable, Appliance
27WPW10141604 Whirlpool Screw
29Insulation (Back, Dividing Wall)
30Insulation, Sleeve
