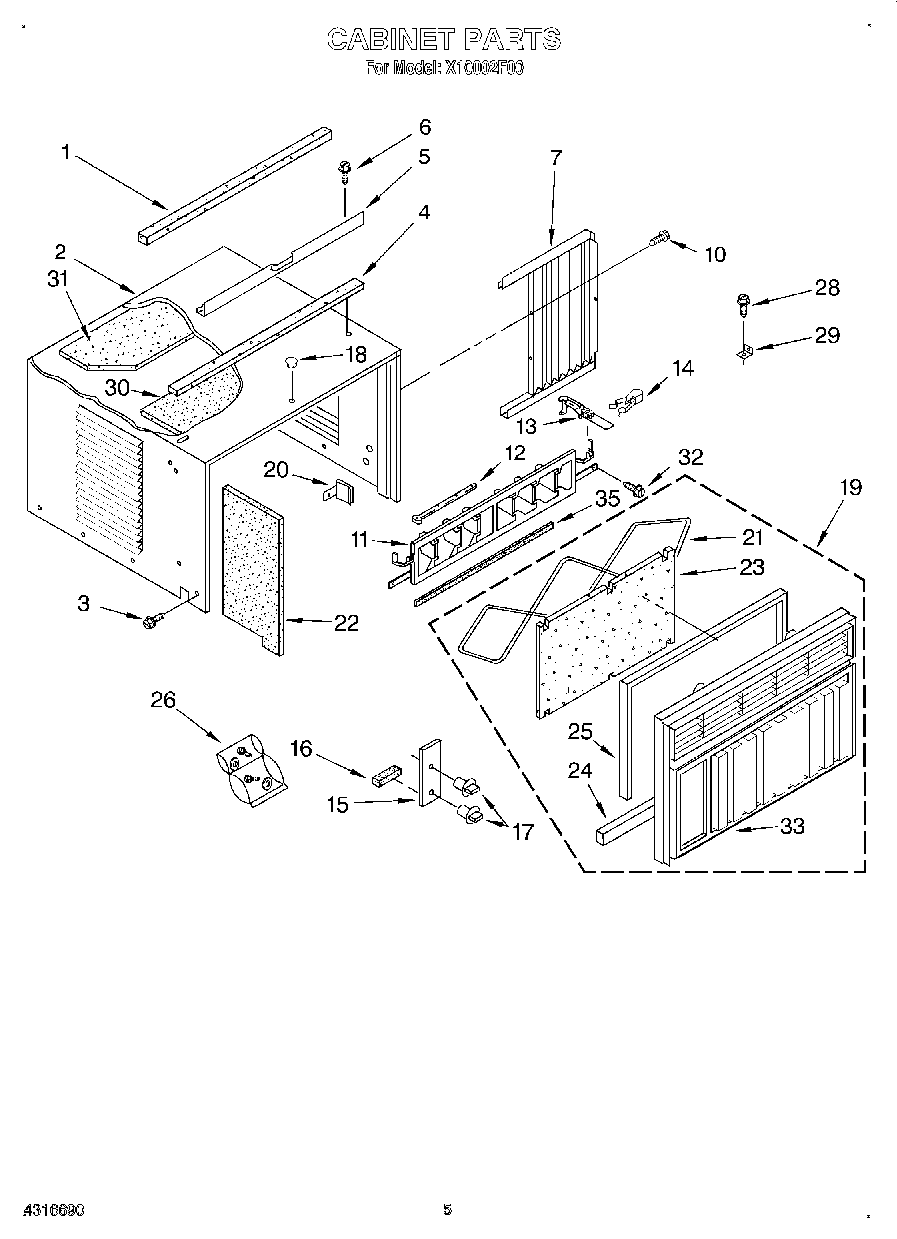

X10002F00 03 – CABINET

Products

PositionProduct
1Gasket, Meeting Rail
2Cabinet
3WP489069 Whirlpool Compactor Screw
4Strip, Seal
5Channel, Top
6WP308685 Whirlpool Microwave Screw
7Housing, Curtain L.S. (Includes No.8)
7Housing, Curtain R.S.(Includes No.8)
10Screw, 8-18 x 3/8
11Louver, Vertical
12Link, Vertical Louver (2)
13Handle, Vertical Louver (2)
14Spring, Detent (2)
15Plate, Escutcheon
16Spacer, Escutcheon Plate (3)
17Knob, Control (2)
18Cover, Hole
19Front, Complete
20Clip, Vertical Louver
21Retainer, Filter
22Insul. Cabinet (Right, Side)
22Insul. Cabinet (Left Side)
23Filter
24Seal, Front
25Seal, Top & Sides
26Bag, Accessory
28Screw, Wood 8-15 x .750
29Bracket
30Insul. Cabinet Top
31Insul. Cabinet
32Screw 8-18 x .295
33Front, Cabinet
35Seal, Vertical Louver
