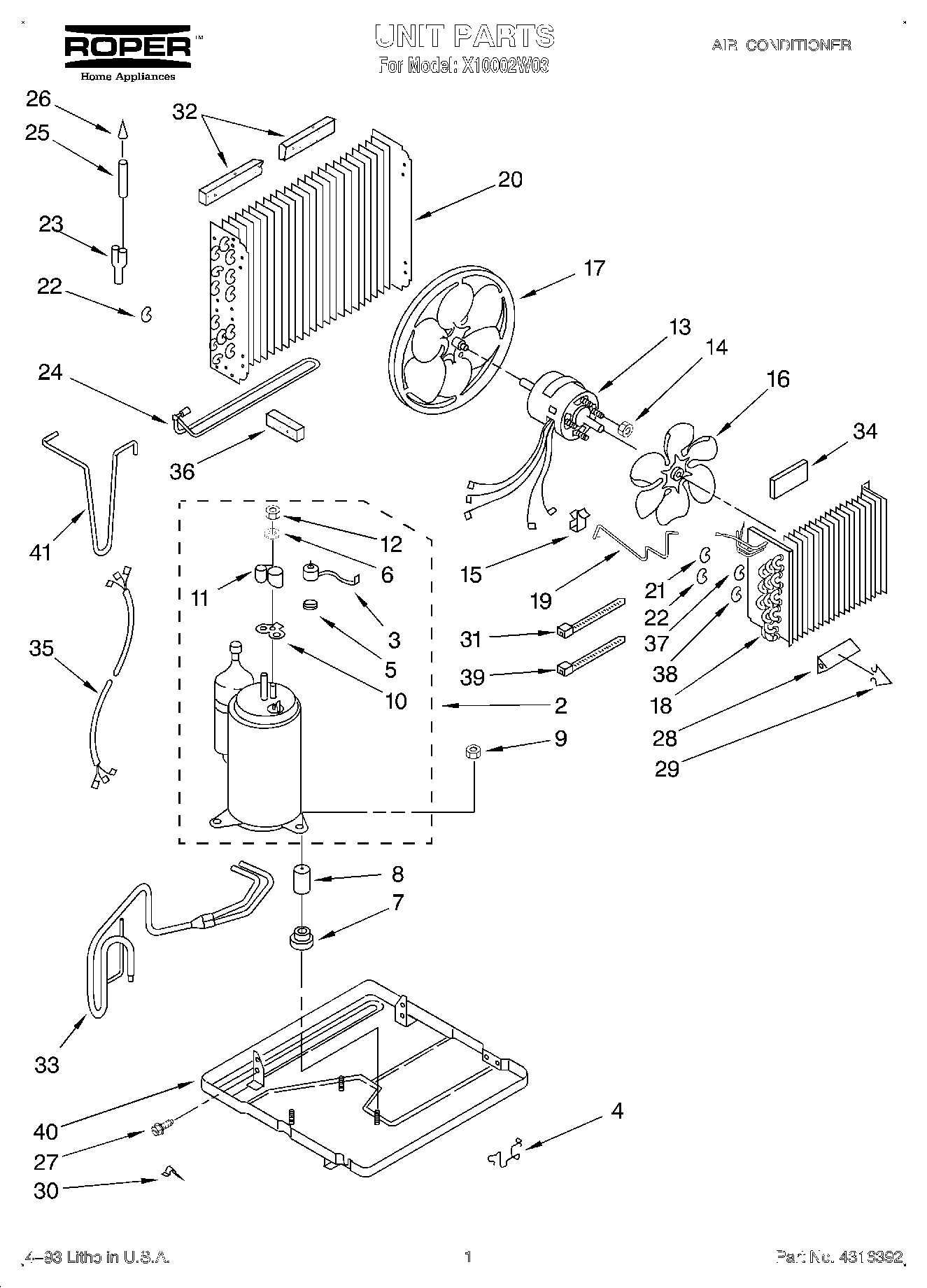

X10002W03 01 – UNIT, LIT/OPTIONAL

Products

Position	Product
	Sheet, Tech
	Installation, Instructions
	Operation Guide
	Wiring Diagram
	Repair Parts List
2	Compressor
3	Overload
4	Clip, Mtg. (2) (Base to Front)
5	Spring, Overload
6	Gasket, Nut
7	WP950021 Whirlpool Grommet
8	Sleeve (3)
9	Locknut (3)
10	WP950035 Whirlpool Cover Gasket
11	WP950036 Whirlpool Cover Assembly
12	WP950027 Whirlpool Mounting Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
15	Clamp, Wiring
16	Blade, Fan (Evaporator)
17	Blade, Fan (Condenser)
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	Bend, Return Condenser (4)
22	Bend, Return Condenser (10)
23	Tube, Flow Divider
24	Tube, Condenser Extension
25	Tube, Outlet (Includes No. 26)
26	Strainer
27	WP489069 Whirlpool Compactor Screw
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp, Restrictor Tube
32	Seal, Condenser Top
33	Tube, Suction
34	Seal, Anti-Rub
35	Harness, Wiring
36	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Bend, Return Condenser (1)
38	Bend Return
39	WPW10339879 Whirlpool Wire Tie
40	Base
41	Tube, Discharge
