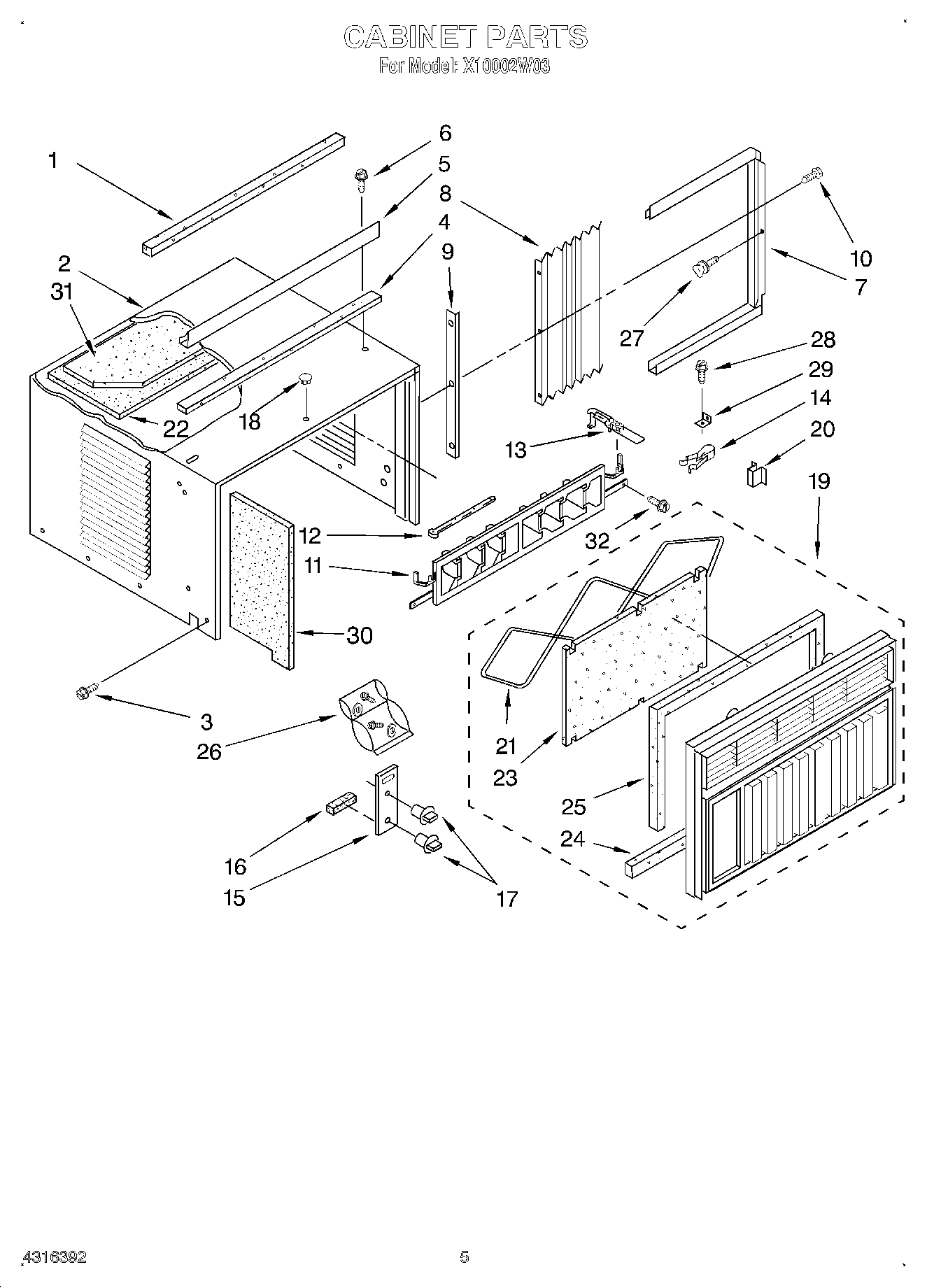

X10002W03 03 – CABINET

Products

PositionProduct
1Gasket, Meeting Rail
2Cabinet
3WP489069 Whirlpool Compactor Screw
4Strip, Seal
5Channel, Top Mounting
6WP308685 Whirlpool Microwave Screw
7Housing, Curtain L.S.
7Housing, Curtain (R.S.)
8Curtain (2)
9Retainer, Curtain
10Screw, 8-18 x 3/8
11Louver, Vertical
12Link, Vertical Louver (2)
13Handle, Vertical Louver (2)
14Spring, Detent (2)
15Plate, Escutcheon
16Spacer, Escutcheon Plate (3)
17Knob, Control (2)
18Cover, Hole
19Front, Cabinet
20Clip, Vertical Louver
21Retainer, Filter
22Insul. Cabinet Top
23Filter
24Seal, Front
25Seal, Top & Sides
26Bag, Accessory
27Thumbscrew (2)
28Screw, Wood 8-15 x .750
29Bracket
30Insul. Cabinet (Left Side)
30Insul. Cabinet (Right, Side)
31Insul. Cabinet
32Screw 8-18 x .295
