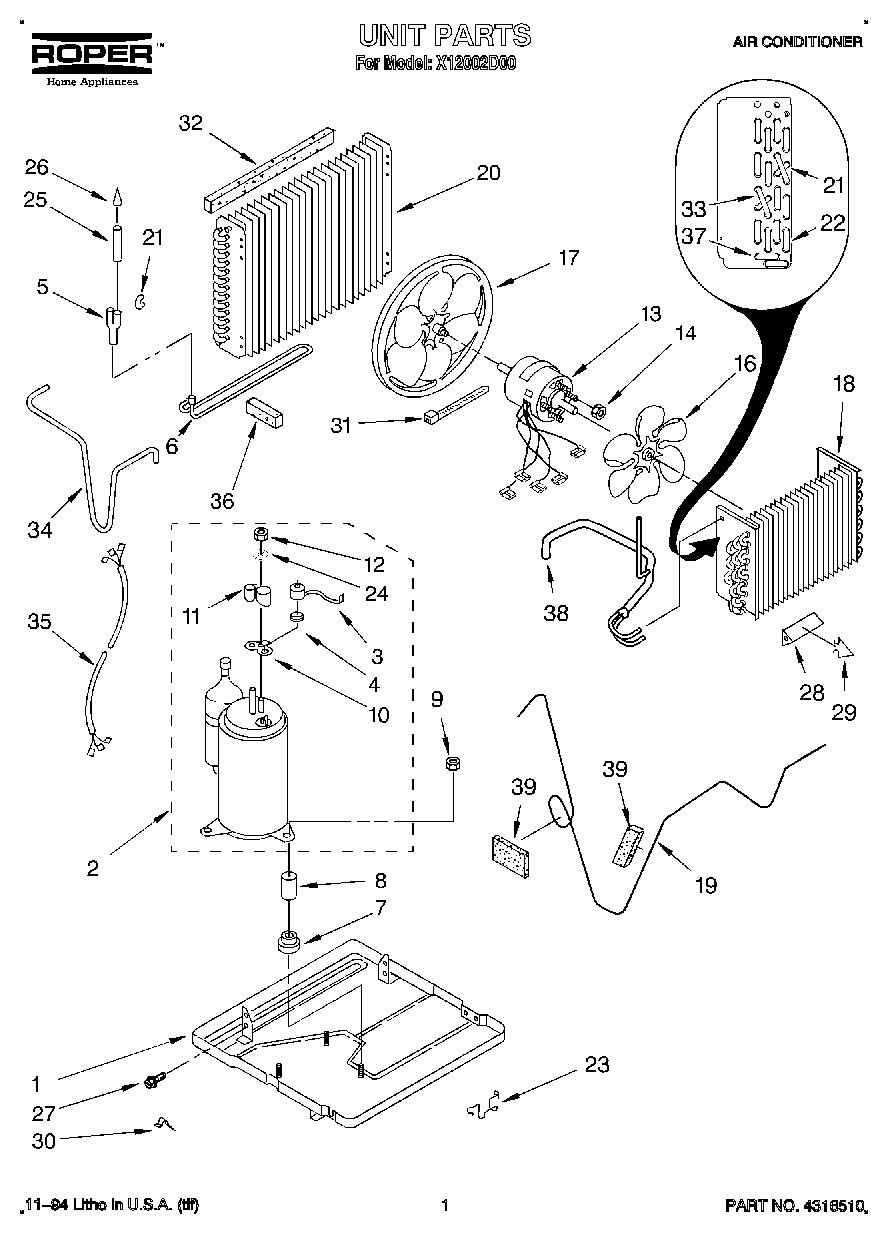

X12002D00 01 – UNIT, LIT/OPTIONAL

X12002D00 01 – UNIT, LIT/OPTIONAL

Written by

in

X12002D00 01 – UNIT, LIT/OPTIONAL

Products

PositionProduct
Wiring Diagram
Installation, Instructions
Sheet, Tech
Use and Care Guide
1Base
2Compressor
3Overload (Production)
4Spring, Overload
5Tube, Flow Divider
6Tube, Condenser Extension
7WP950021 Whirlpool Grommet
8Sleeve (3)
9Locknut (3)
10WP950035 Whirlpool Cover Gasket
11WP950036 Whirlpool Cover Assembly
12WP950027 Whirlpool Mounting Nut
13Motor, Fan
14WP488130 Whirlpool Air Conditioner Nut
16Blade, Fan (Evaporator)
17Blade, Fan (Condenser)
18Evaporator
19Tube, Restrictor (2)
20Condenser
21Bend, Return Condenser (10)
22Bend, Return Condenser (4)
23Clip, Mtg. (2) (Base to Front)
24Gasket, Nut
25Tube, Outlet (Includes Illus. 24)
26Strainer
27WP489069 Whirlpool Compactor Screw
27Screw, Repair
28Anticipator, Temperature
29Clip, Anticipator
30Clamp, Restrictor Tube
31WPW10339879 Whirlpool Wire Tie
32Seal, Condenser Top
33Bend, Return Condenser (1)
34Tube, Discharge
35Harness, Wiring
36WP854334 Whirlpool Air Conditioner Sealing Strip
37Bend Return
38Tube, Suction
39Seal, Anti-Rub
