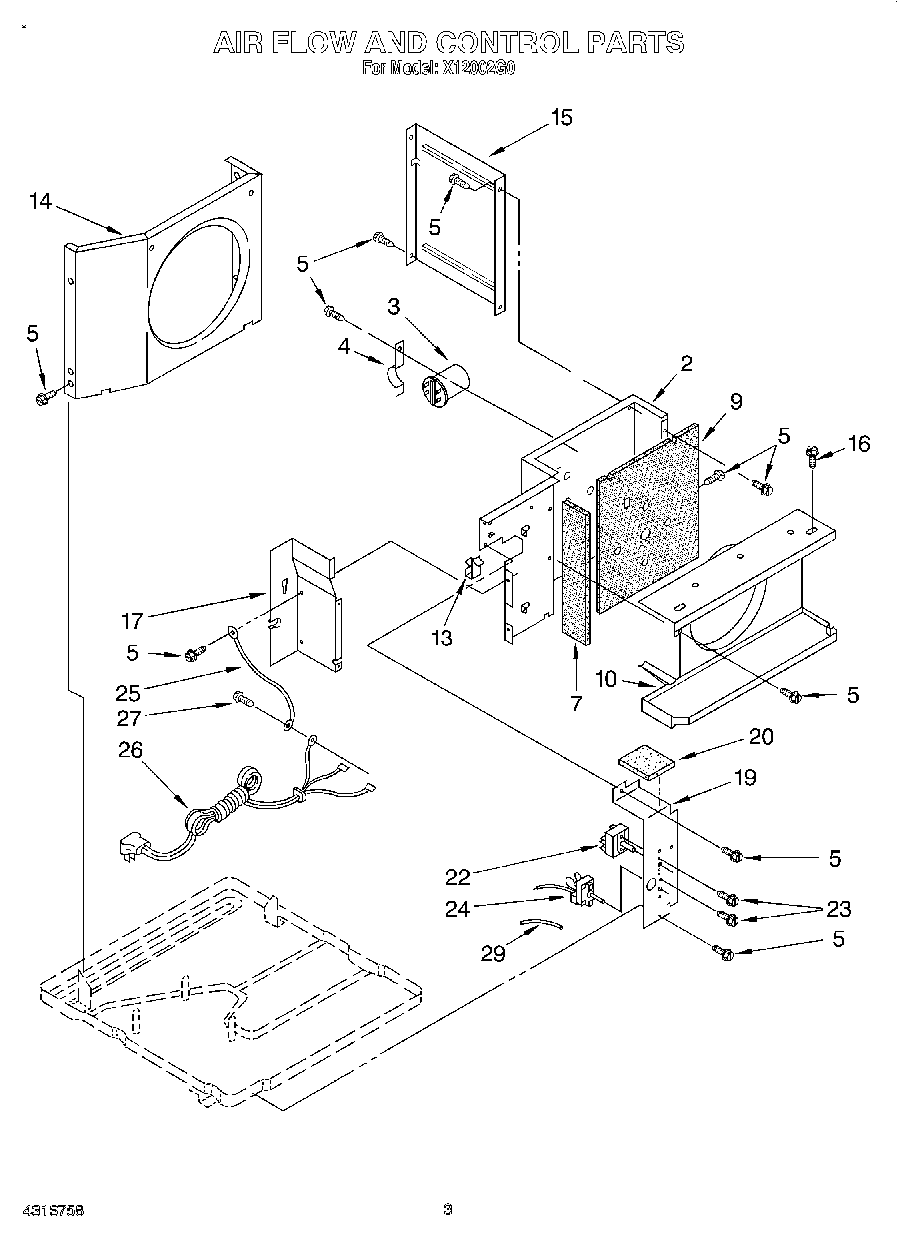

X12002G0 02 – AIRFLOW AND CONTROL

X12002G0 02 – AIRFLOW AND CONTROL

Written by

in

X12002G0 02 – AIRFLOW AND CONTROL

Products

PositionProduct
2Wall, Dividing
3Capacitor, Running
4Bracket, Capacitor
5WP489069 Whirlpool Compactor Screw
5Screw, Repair
7Insulation (Side, Dividing Wall)
9Insulation (Back, Dividing Wall)
10Shroud, Evaporator
13Clamp, Wiring
14Shroud, Condenser
15Support, Unit
16WP488729 Whirlpool Refrigerator Door Screw
17Extension, Dividing Wall
19Panel, Control
20Insulation, Top (Control Panel)
22Switch, Rotary
23Screw, 6-32 x .175
24Thermostat
25Wire, Ground
26Cable, Appliance
27WPW10141604 Whirlpool Screw
29Insulation, Sleeve
