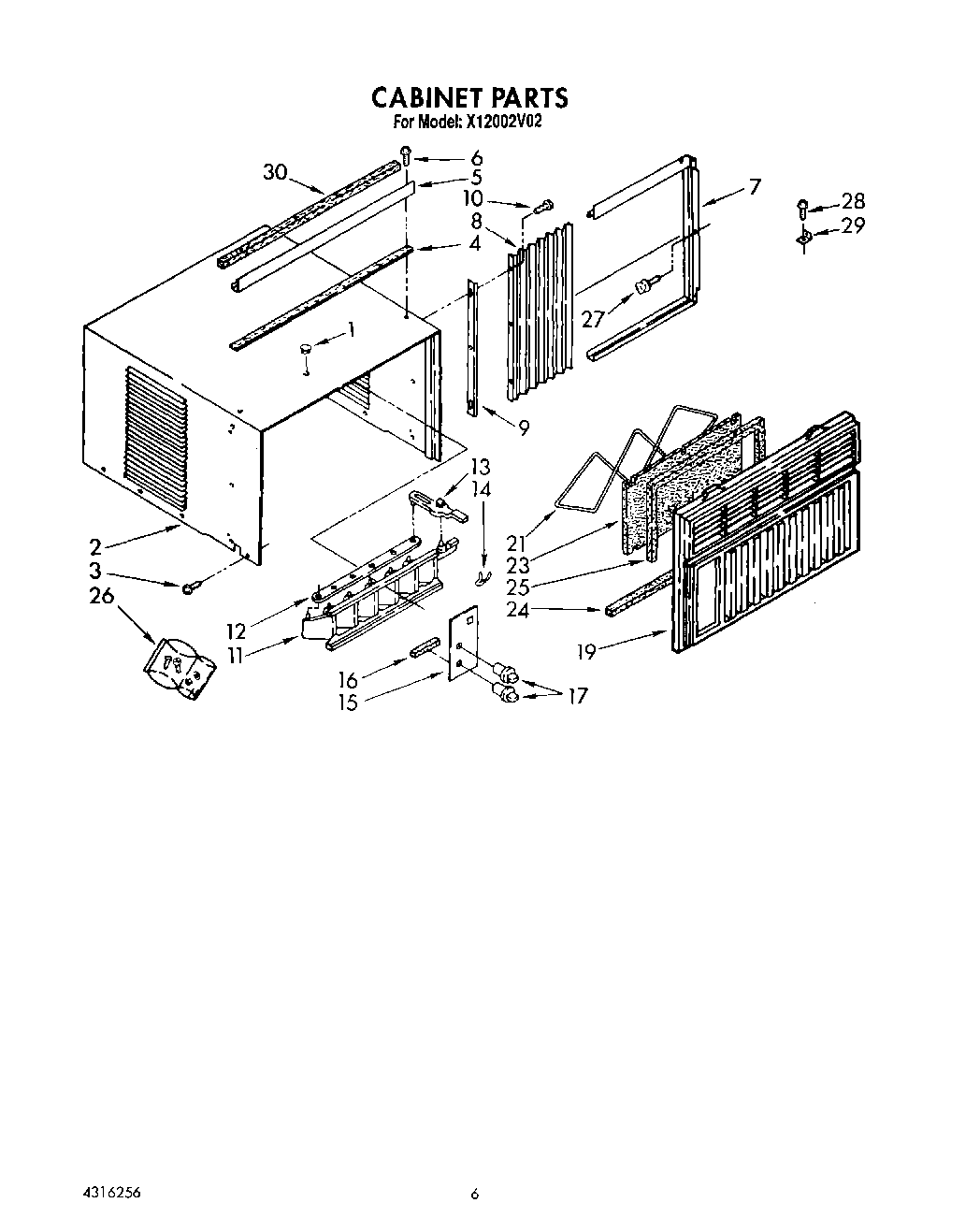

X12002V02 04 – CABINET

Products

PositionProduct
1Cover, Hole
2Insulation Cabinet
2Cabinet
3WP489128 Whirlpool Refrigerator Screw
4Strip, Seal
5Channel, Top Mounting
6WP308685 Whirlpool Microwave Screw
7Housing, Curtain (R.S.)
7Housing, Curtain L.S.
8Curtain (2)
9Retainer, Curtain
10Screw, 8 x 7/16
11Louver, Vertical
12Link, Louver
13Handle, Louver
14Detent Spring (2)
15Plate, Escutcheon
16Spacer, Escutcheon Plate (3)
17Knob, Control (3)
19Front, Cabinet
21Retainer, Filter
23Filter
24Seal, Front
25Seal, Top & Sides
26Bag, Accessory
27Thumbscrew (2)
28Screw, Wood 8-15 x .750
29Bracket
30Gasket, Meeting Rail
