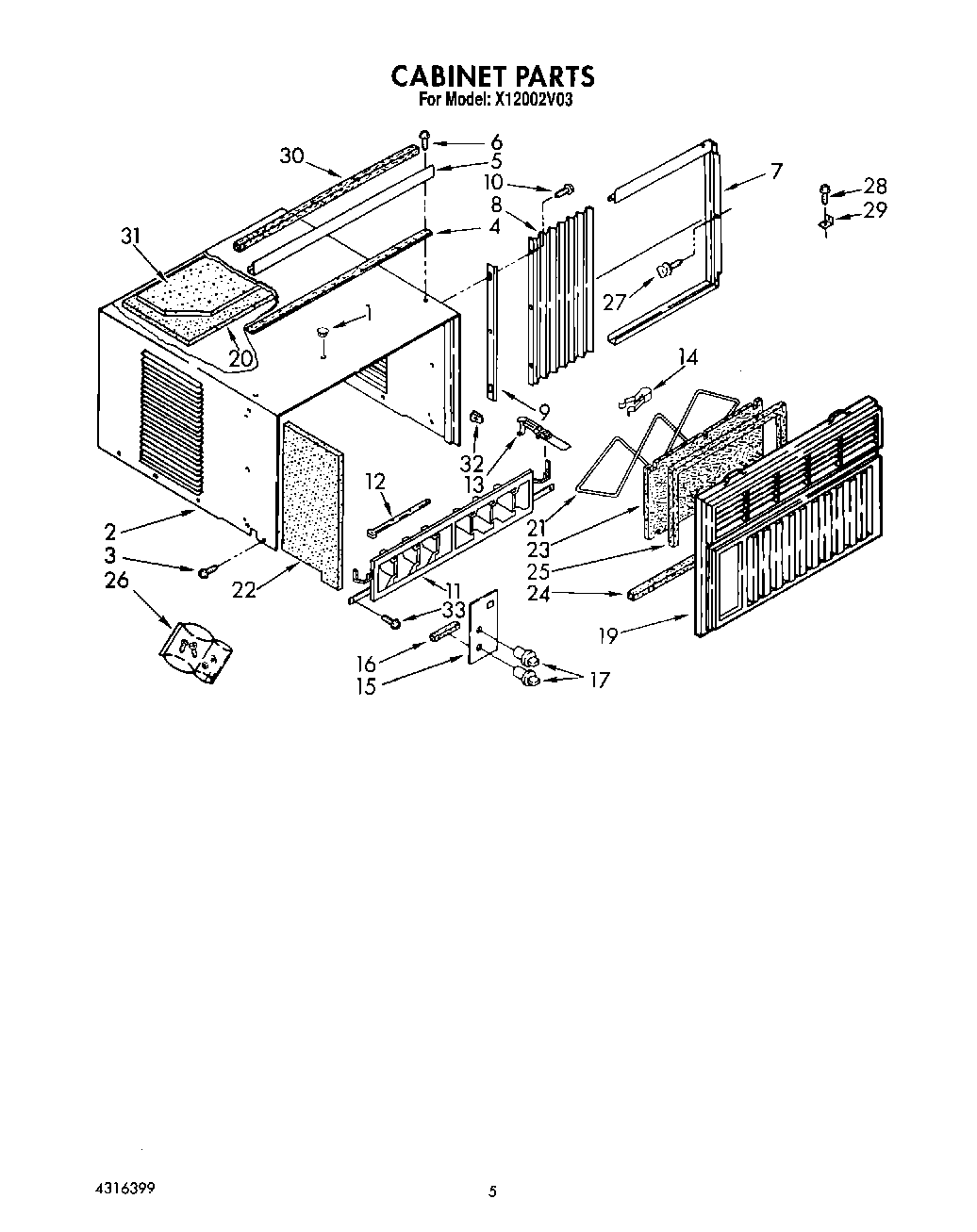

X12002V03 03 – CABINET

Products

PositionProduct
1Cover, Hole
2Cabinet
2Insulation Cabinet
3WP489069 Whirlpool Compactor Screw
4Strip, Seal
5Channel, Top Mounting
6WP308685 Whirlpool Microwave Screw
7Housing, Curtain L.S.
7Housing, Curtain (R.S.)
8Curtain (2)
9Retainer, Curtain
10Screw, 8-18 x 3/8
11Louver, Vertical
12Link, Vertical Louver (2)
13Handle, Vertical Louver (2)
14Spring, Detent (2)
15Plate, Escutcheon
16Spacer, Escutcheon Plate (3)
17Knob, Control (2)
19Front, Cabinet
20Insul. Cabinet Top
21Retainer, Filter
22Insul. Cabinet (Left Side)
22Insul. Cabinet (Right, Side)
23Filter
24Seal, Front
25Seal, Top & Sides
26Bag, Accessory
27Thumbscrew (2)
28Screw, Wood 8-15 x .750
29Bracket
30Gasket, Meeting Rail
31Insul. Cabinet
32Clip, Vertical Louver
33Screw 8-18 x .295
