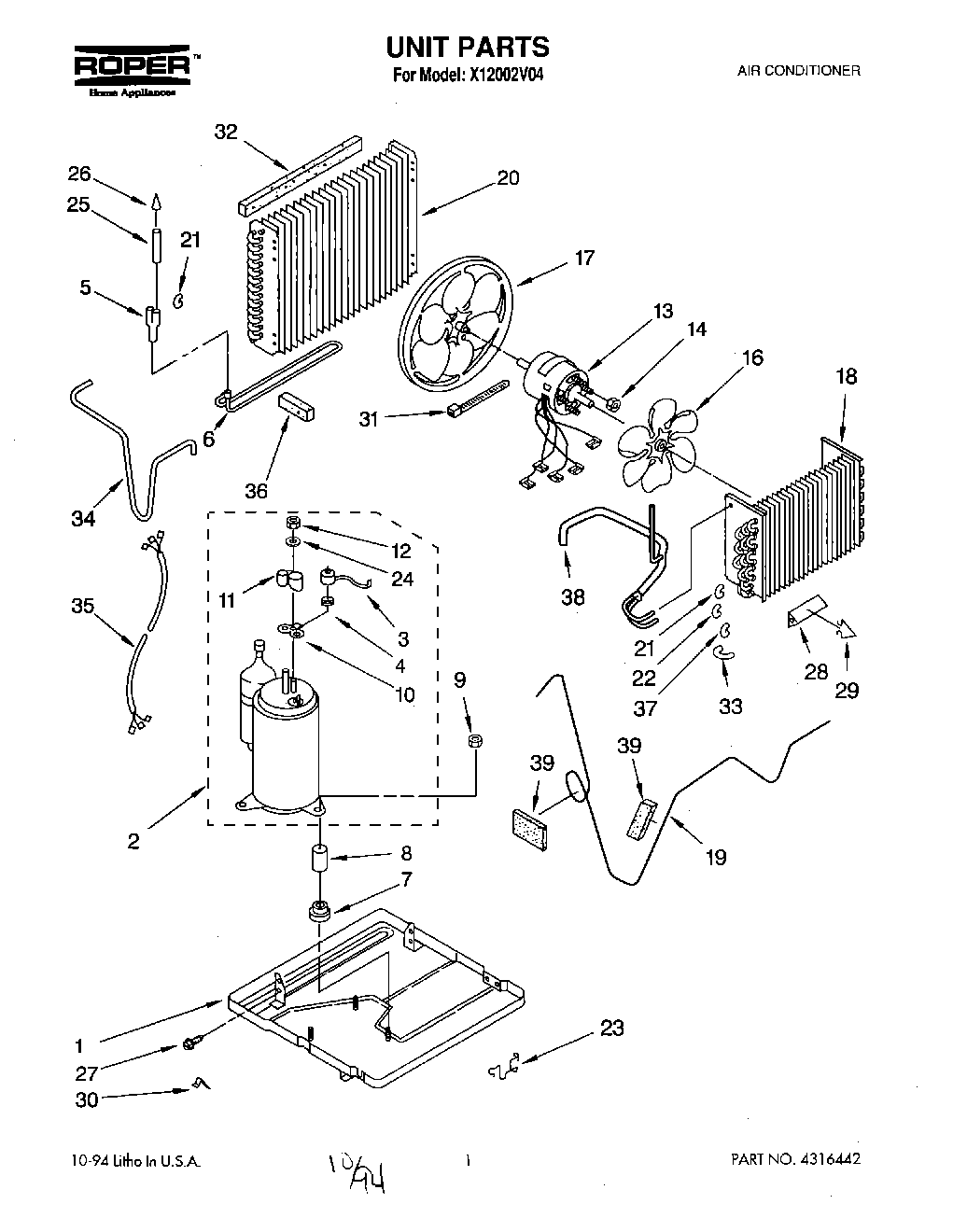

X12002V04 01 – UNIT, LITERATURE

Products

Position	Product
	Wiring Diagram
	Installation, Instructions
	Sheet, Tech
	Guide, Use And Care
1	Base
2	Compressor
3	Overload (Production)
4	Spring, Overload
5	Tube, Flow Divider
6	Tube, Condenser Extension
7	WP950021 Whirlpool Grommet
8	Sleeve (3)
9	Locknut (3)
10	WP950035 Whirlpool Cover Gasket
11	WP950036 Whirlpool Cover Assembly
12	WP950027 Whirlpool Mounting Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
16	Blade, Fan (Evaporator)
17	Blade, Fan (Condenser)
18	Evaporator
19	Tube, Restrictor (2)
20	Condenser
21	Bend, Return Condenser (10)
22	Bend, Return Condenser (4)
23	Clip, Mtg. (2) (Base to Front)
24	Gasket, Nut
25	Tube, Outlet (Includes Illus. 24)
26	Strainer
27	WP489069 Whirlpool Compactor Screw
27	Screw, Repair
28	Anticipator, Temperature
29	Clip, Anticipator
30	Clamp, Restrictor Tube
31	WPW10339879 Whirlpool Wire Tie
32	Seal, Condenser Top
33	Bend, Return Condenser (1)
34	Tube, Discharge
35	Harness, Wiring
36	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Bend Return
38	Tube, Suction
39	Seal, Anti-Rub
