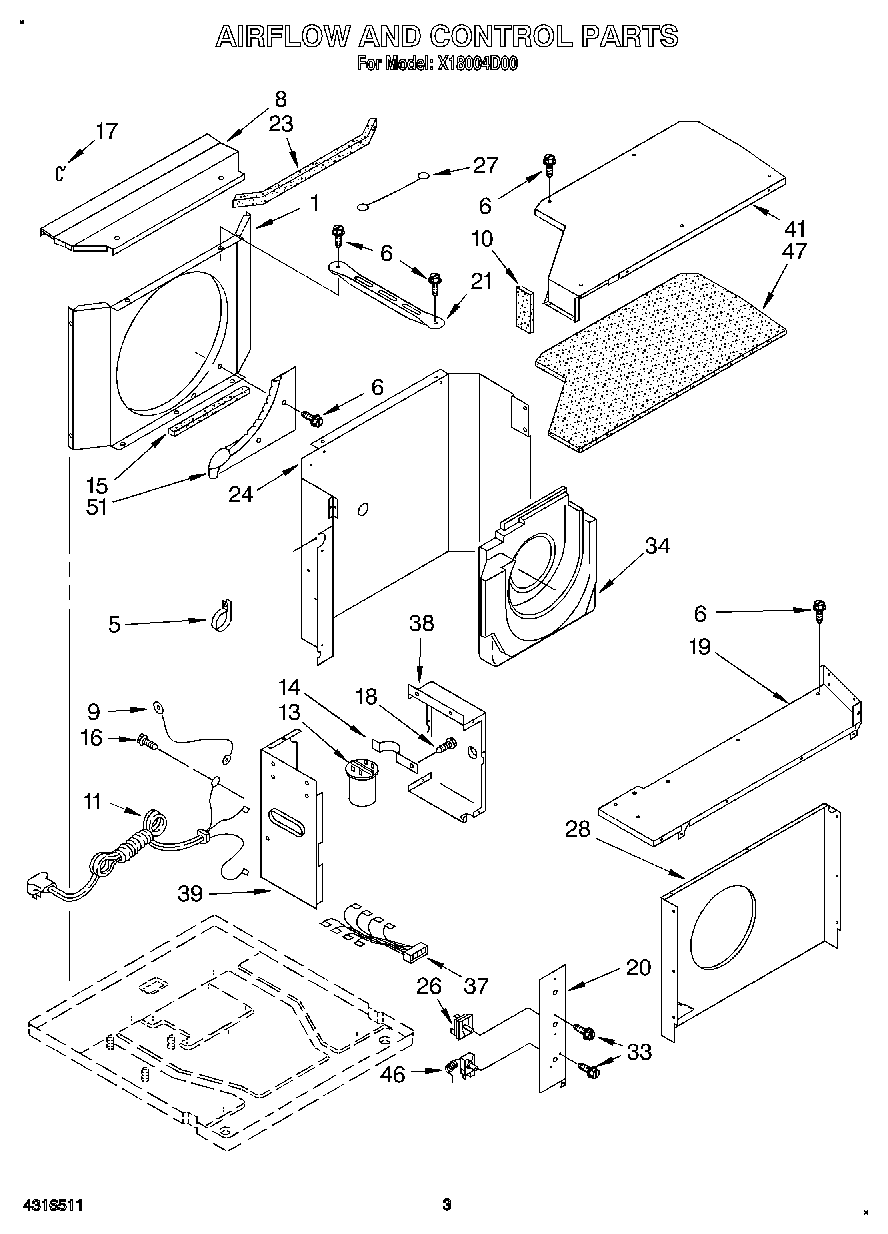

X18004D00 02 – AIRFLOW AND CONTROLadmin2025-04-26T11:17:51+00:00X18004D00 02 – AIRFLOW AND CONTROL
Products
| Position | Product |
|---|
| 1 | Shroud, Condenser |
| 5 | Clamp, Wiring |
| 8 | Top, Condenser |
| 9 | Wire, Ground |
| 10 | Seal, Anti-Rub |
| 11 | Cord, Appliance |
| 13 | Capacitor |
| 14 | WP1160674 Whirlpool Bracket |
| 15 | Seal, Condensate Cup |
| 16 | WP489069 Whirlpool Compactor Screw |
| 17 | Clip, Shroud (2) |
| 18 | Screw No.8 - 5/8 |
| 19 | Top, Evaporator Shroud |
| 20 | Panel, Control |
| 21 | Support, Unit (2) |
| 23 | Seal, Shroud |
| 24 | Dividing Wall |
| 26 | Switch, Rotary |
| 27 | Wire, Thermostat To Switch |
| 28 | Shroud Assembly, Evaporator |
| 33 | Screw, 6-32 x .175 |
| 34 | Housing, Air |
| 37 | Harness, Wiring - Control Box |
| 38 | Control Box (R.S.) |
| 39 | Control Box (L.S.) |
| 41 | Cover, Top |
| 46 | Control, Temperature |
| 47 | Insulation, Top Cover |
| 51 | Cup, Condensate |
