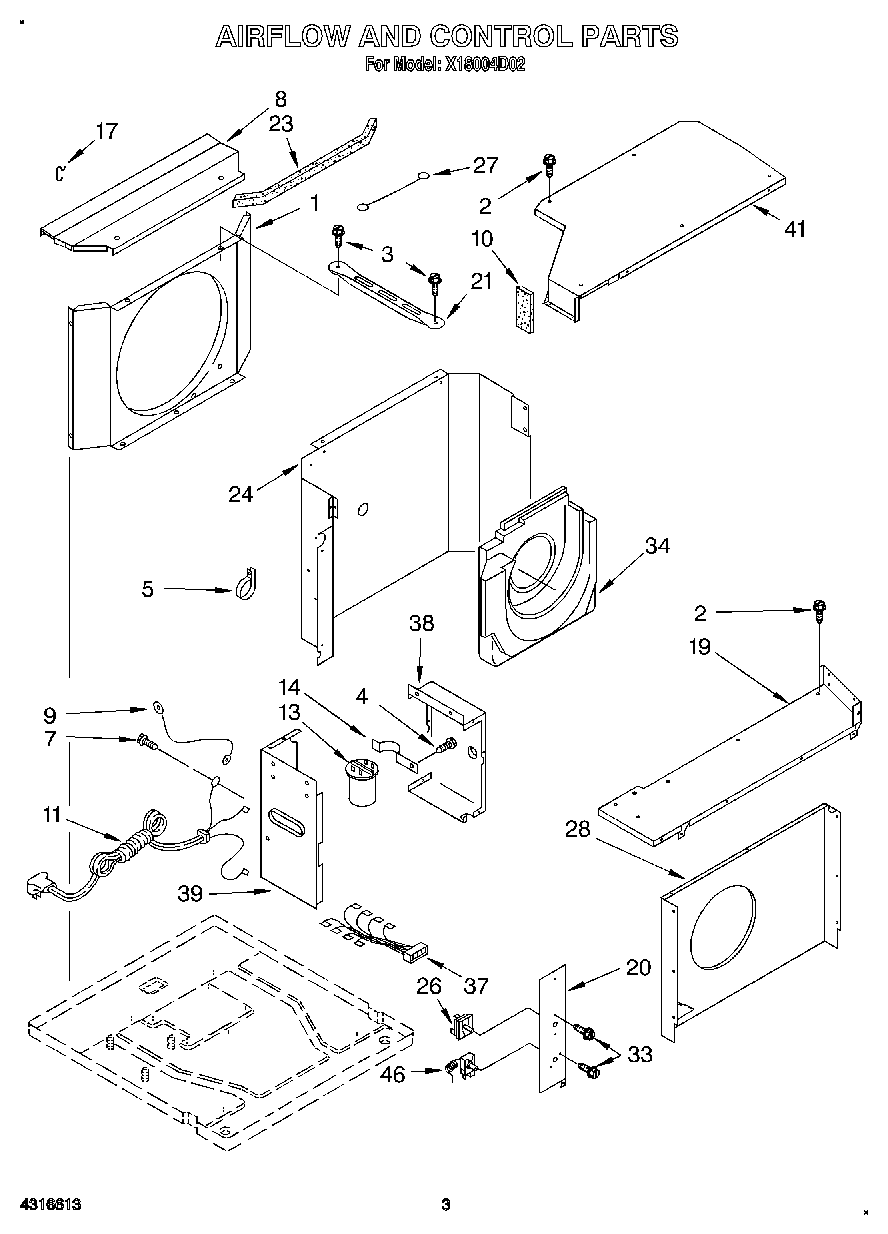

X18004D02 02 – AIRFLOW AND CONTROL

Products

PositionProduct
1Shroud, Condenser
3WP308685 Whirlpool Microwave Screw
4Screw No.8 – 5/8
5Clamp, Wiring
7WP489069 Whirlpool Compactor Screw
8Top, Condenser
9Wire, Ground
10Seal, Anti-Rub
11Cord, Appliance
13Capacitor, Running
14Bracket, Capacitor
17Clip, Shroud (2)
19Top, Evaporator Shroud
20Panel, Control
21Support, Unit (2)
23Seal, Shroud
24Dividing Wall
26Switch, Rotary
27Wire, Thermostat To Switch
28Shroud Assembly, Evaporator
33Screw, 6-32 x .175
34Housing, Air
37Harness, Wiring – Control Box
38Control Box (R.S.)
39Control Box (L.S.)
41Cover, Top
46Control, Temperature
