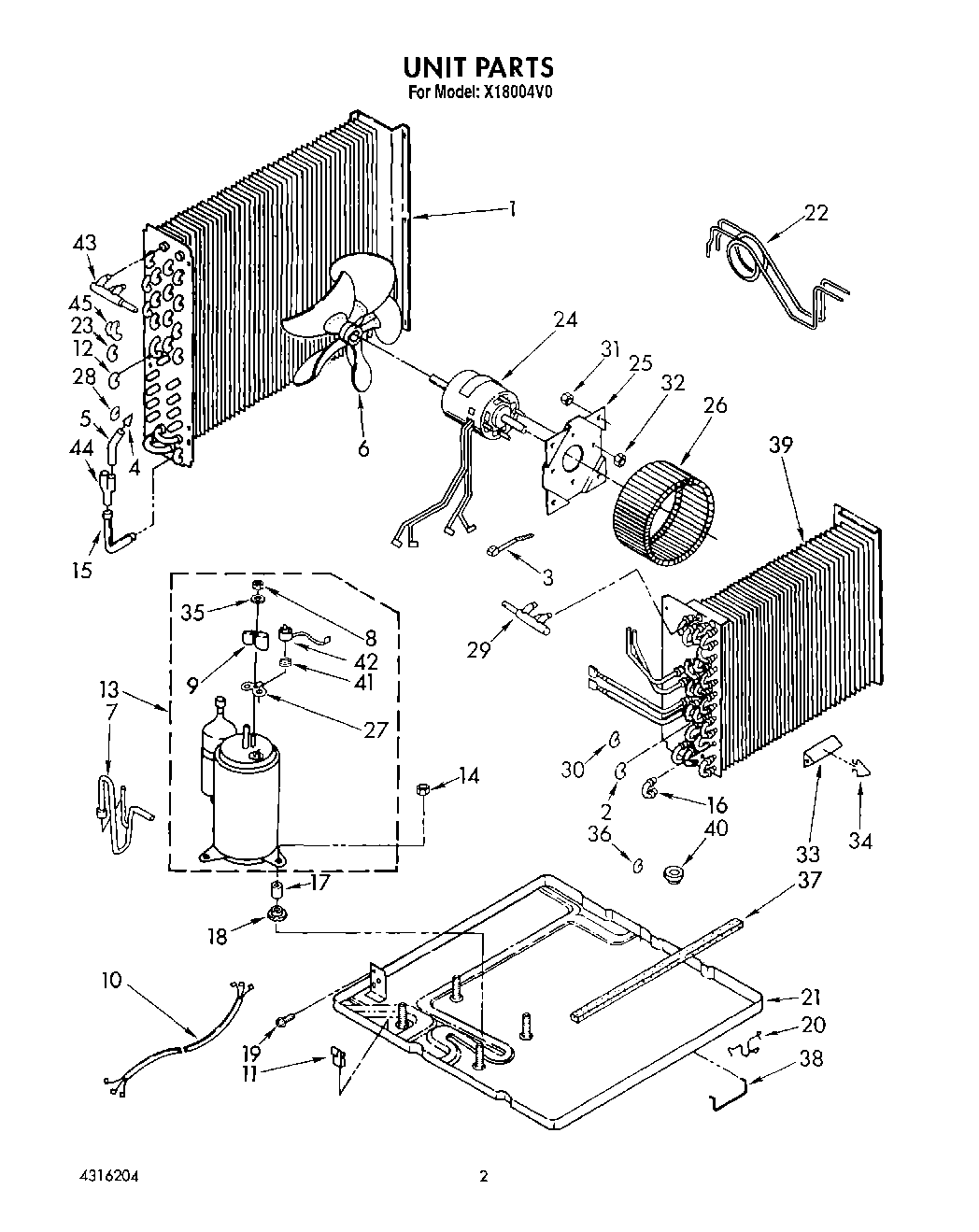

X18004V0 02 – UNIT, LITERATURE

Products

Position	Product
	Instructions, Installation (Wide Window Kit)
	List, Repair Parts
	Sheet, Tech
	Guide, Use And Care
	Guide, Energy
1	Condenser
2	Bend, Return Evaporator (11)
3	WPW10339879 Whirlpool Wire Tie
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Blade, Fan
7	Tube, Suction
8	WP950027 Whirlpool Mounting Nut
9	WP950036 Whirlpool Cover Assembly
10	Harness, Wiring
11	Clamp, Restrictor Tube
12	Bend, Return Condenser (4)
13	Compressor
14	Locknut (3)
15	Tube, Connecting
16	WP855199 Whirlpool Bend Return
17	Sleeve (3)
18	WP950021 Whirlpool Grommet
19	WP488729 Whirlpool Refrigerator Door Screw
20	Clip, Mtg. (3)
21	Base
22	Tube Restrictor (3) (Length 46.0“)
23	Tube, Riser (2)
24	Motor, Fan
25	WPL 998024
26	Wheel, Blower
27	WP950035 Whirlpool Cover Gasket
28	Bend, Return Condenser (10)
29	Tube, Manifold
30	Bend, Return
31	Nut, Hex (4)
32	WP488130 Whirlpool Air Conditioner Nut
33	Anticipator
34	Clip (2)
35	Gasket, Nut
36	Bend, Return
37	Seal
38	WPL 647971
39	Evaporator
40	Bushing, Base
41	Spring, Overload
42	WP1161170 Whirlpool Air Conditioner Overload
43	Tube, Manifold
44	Tube, Flow Divider
45	Bend, 3-Way
