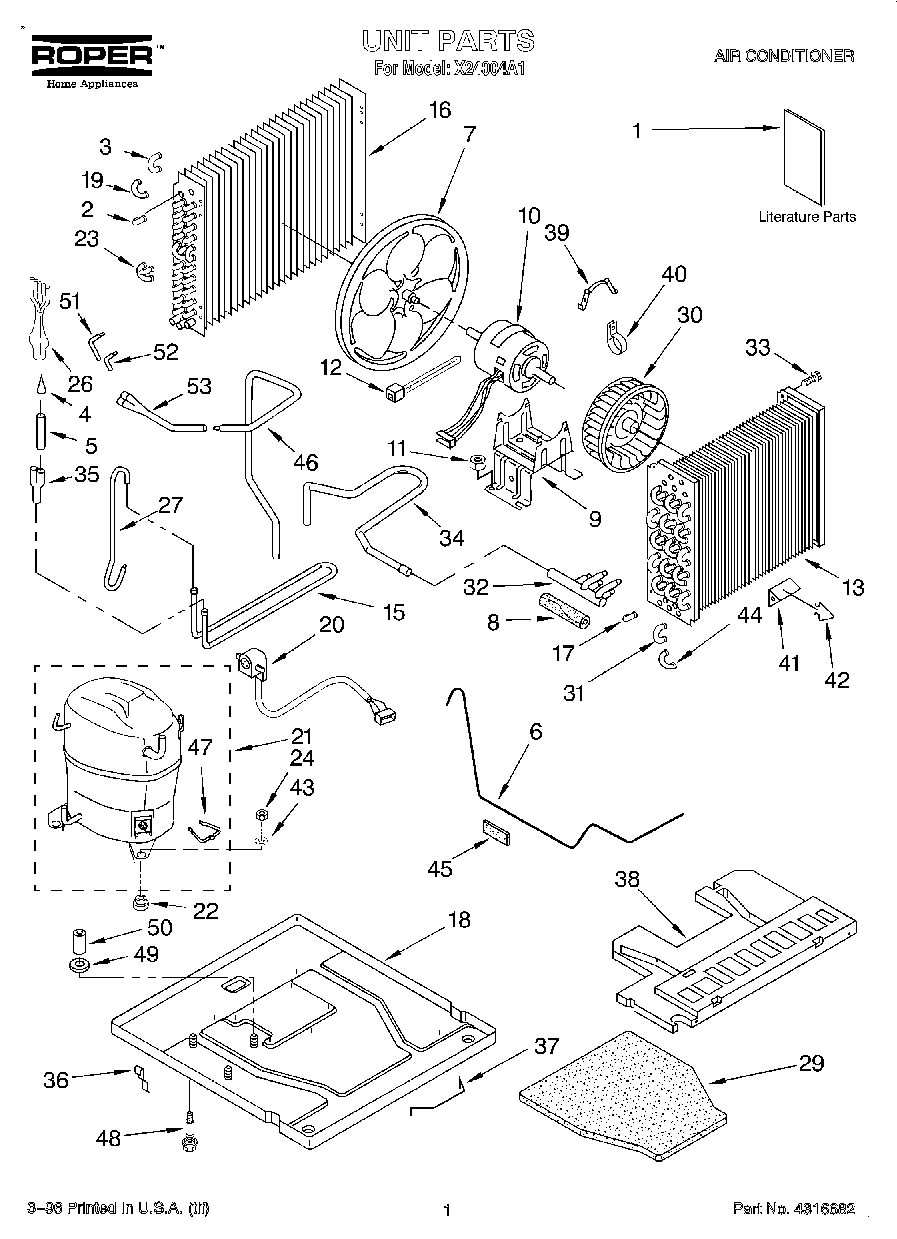

X24004A1 01 – UNIT, LITERATURE

Products

Position	Product
	Wiring Diagram
	Owners Manual
	Tech Sheet
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (5)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
15	Tube, Wet Loop
16	Condenser
17	Bend, Return Evaporator (4)
18	Base
19	Tube, Riser (2)
20	Harness, Wiring
21	Compressor
22	Grommet (3)
23	Bend, Return (3-Way)
24	Locknut (3)
26	Distributor
27	Tube, Wet Loop Connect
29	Insulation, Base (Bottom)
30	Wheel, Blower (Evaporator)
31	Bend, Return Evaporator (11)
32	Manifold, Suction
33	WP489069 Whirlpool Compactor Screw
34	Tube, Suction
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Clamp, Wiring
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
44	Bend, Return Evaporator (4)
45	Seal, Restrictor Tube
46	Tube, Discharge
47	Retainer, Terminal Cover
48	Bolt, Compressor
49	Spacer, Grommet
50	Sleeve, Mounting
51	Tube, Feeder
52	Tube, Feeder
53	Tube, Discharge Top Assembly (Includes 51 & 52)
