X3448XTWLT 03 – DOOR/DRAWER – Aparts

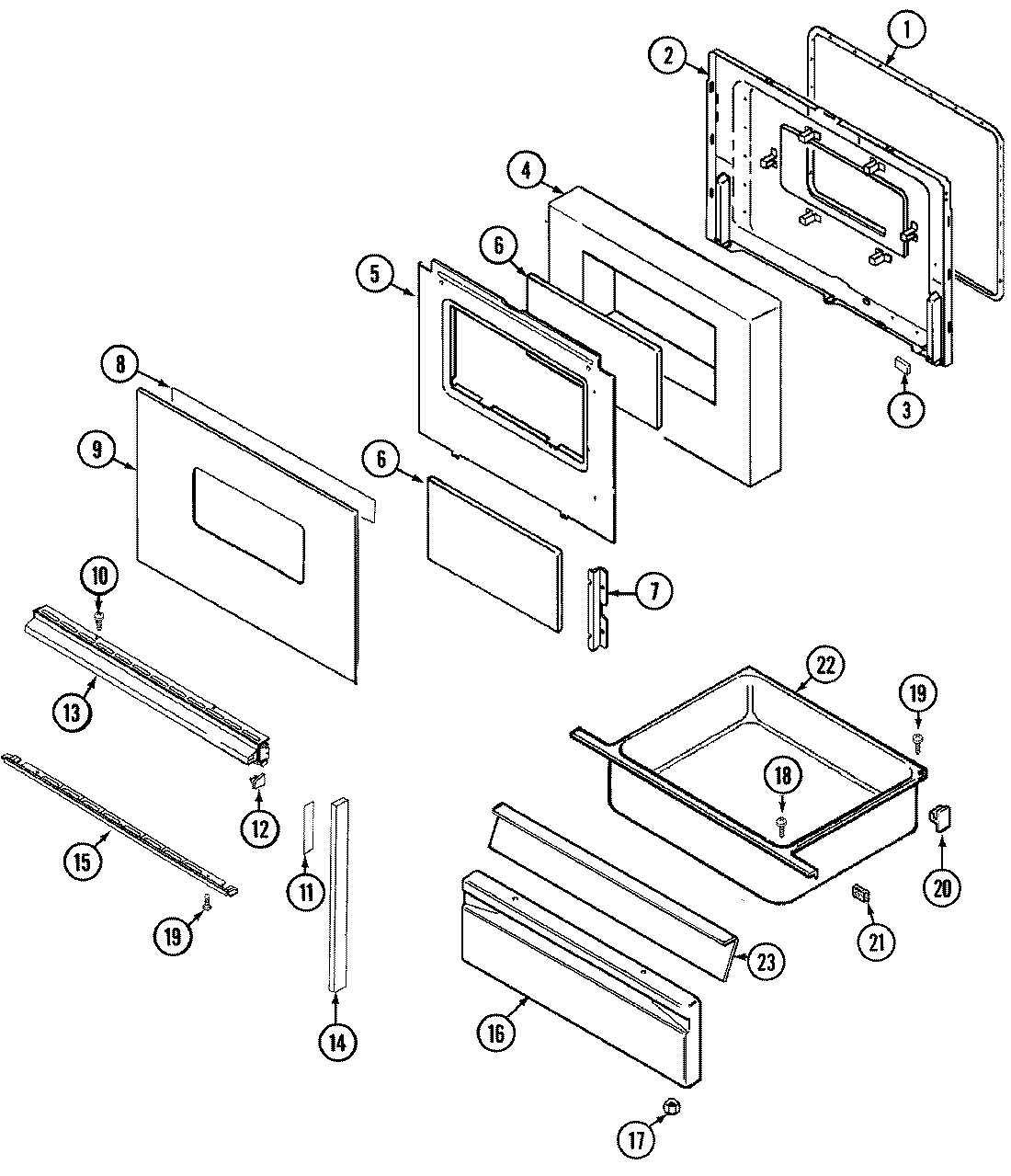

X3448XTWLT 03 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
2	MAY 74003244
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	TAPE, FOIL (3`` WIDE)
9	MAY 7902P321-60
9	MAY 74003431
10	WP98008545 Whirlpool Screw
11	MAY 8270P093-60
12	MAY 74002540
12	MAY 74002539
13	MAY 74003429
13	MAY 7701P144-60
13	MAY 7701P103-60
14	MAY 74003430
14	MAY 74002084
15	MAY 7744P105-60
15	MAY 74003432
16	MAY 2416F038-62
17	WPW10131078 Whirlpool Nut Assembly
18	WP4159193 Whirlpool Screw
19	SCREW
20	WP8004P026-60 Whirlpool Support
21	MAY 7208P002-60
22	MAY 3405F018-80
23	LINING, DRAWER PANEL
