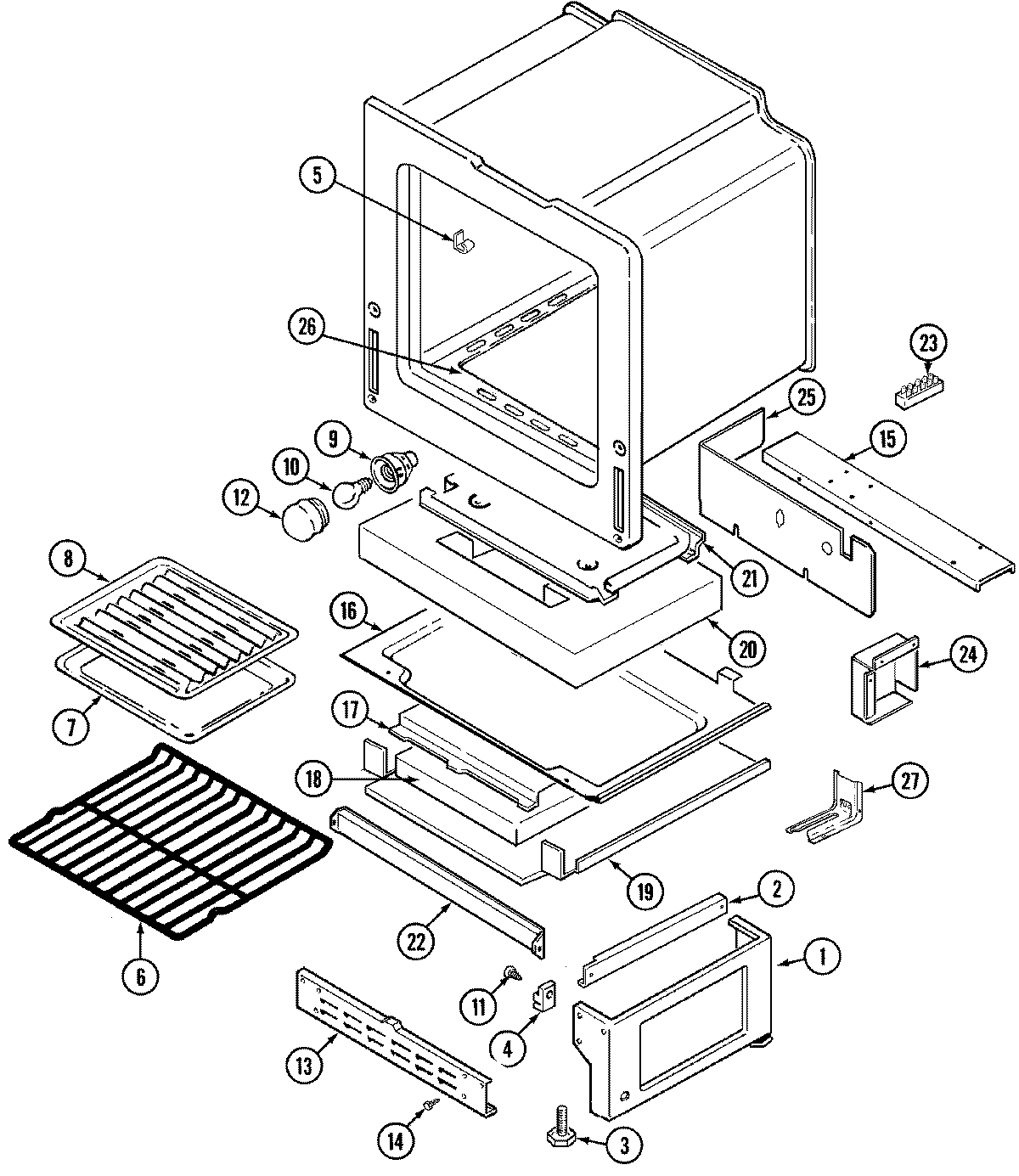

X3448XTWLT 05 – OVEN/BASE

Products

Position	Product
1	MAY 74003003
1	MAY 74001705
2	RUNNER, DRAWER
2	MAY 3406F028-51
3	W11665456 Whirlpool Range Level Foot
4	WP488130 Whirlpool Air Conditioner Nut
4	MAY 74002312
4	MAY 74003566
5	MAY 550713
6	WPW10282492 Whirlpool Oven Rack
7	MAY Y3401F02019
8	MAY Y3413F01619
9	MAY 74003125
9	WP7407P182-60 Whirlpool Lamp
10	RANGE ONLY 40W 120V APPL BULB
11	MAY 74001449
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12	WP9781049 Whirlpool Light Lens
13	MAY 4020F001-80
14	SCREW
15	MAY 74002593
16	MAY 3804F112-51
17	MAY 3604F204-51
18	INSULATION, DRAWER & SHIELD
19	MAY 3604F205-51
20	MAY 4804F014-60
21	MAY 74001651
22	BAFFLE, OVEN FRONT
23	MAY 7401P037-60
24	MAY 3807F473-51
25	MAY 4005F429-51
26	MAY 5504A003-19
27	MAY 74002311
27	MAY 7101P344-60
