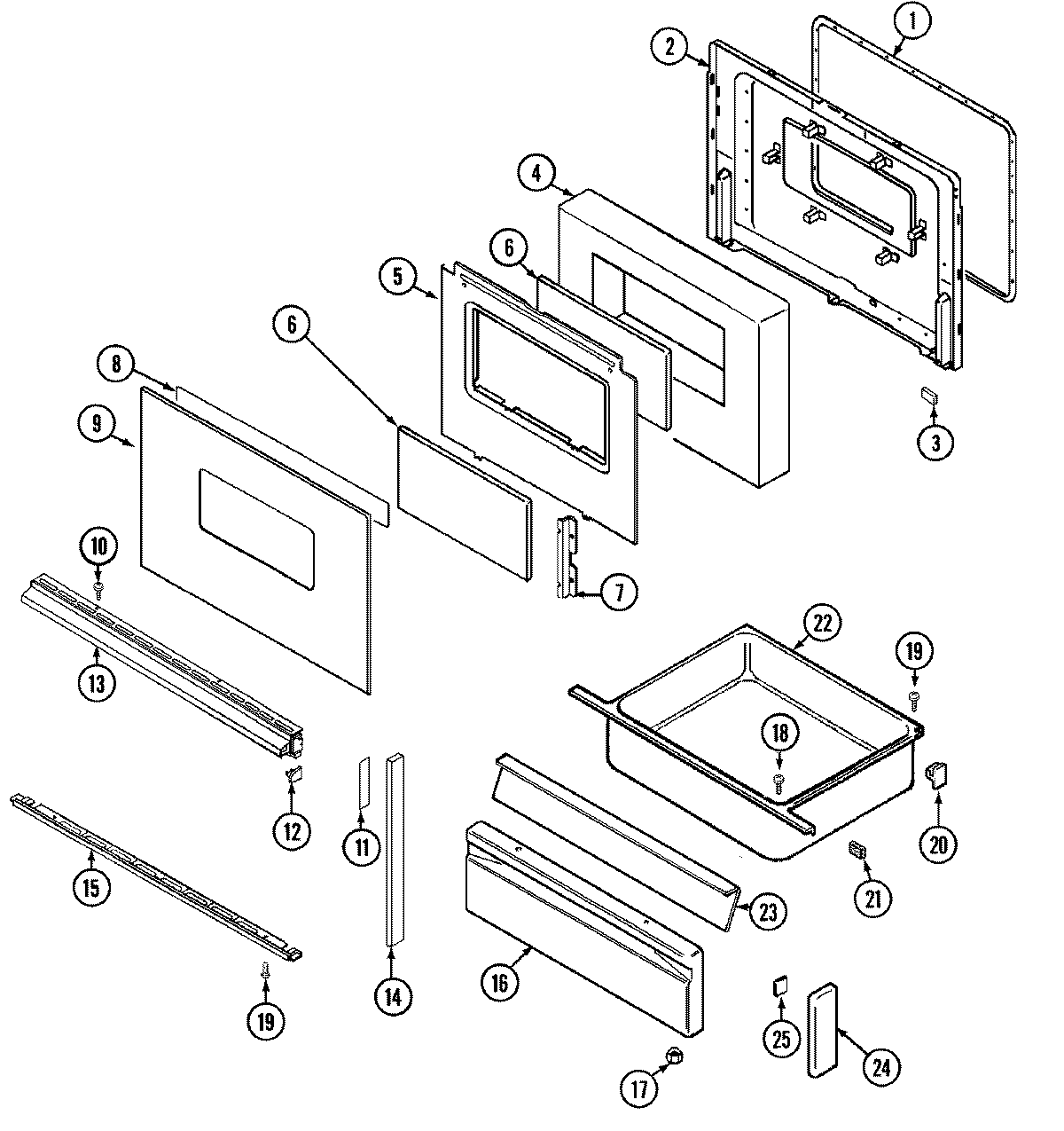

X3488VVDLT 03 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
2	MAY 74003244
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	TAPE, FOIL (3`` WIDE)
9	MAY 7902P358-60
9	MAY 74003431
9	MAY 74003455
10	WP74009541 Whirlpool Screw Assembly
11	MAY 8270P093-60
12	MAY 74002713
12	MAY 74002714
13	MAY 7701P146-60
13	MAY 7701P115-60
13	MAY 74003456
14	MAY 74003398
14	MAY 74002343
15	MAY 7744P104-60
15	MAY 74003457
16	MAY 2416F038-64
17	WPW10131078 Whirlpool Nut Assembly
18	WP7101P072-60 Whirlpool Screw
20	WP8004P026-60 Whirlpool Support
21	MAY 7208P011-60
22	MAY 3405F018-80
23	LINING, DRAWER PANEL
23	SCREW
24	MAY 74002806
25	TAPE
